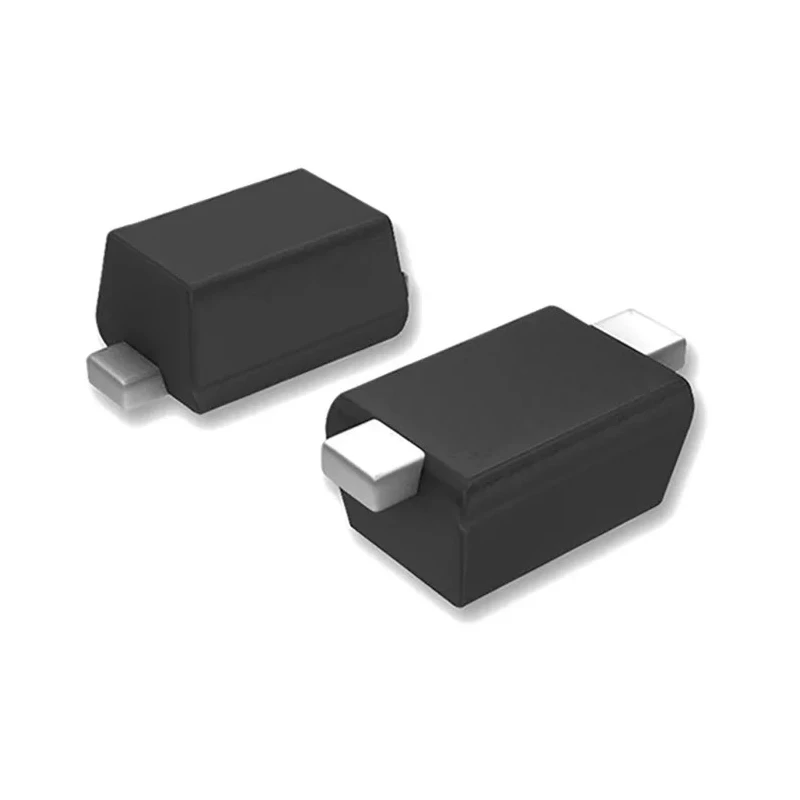

DiodesZetex 30 V 200 mA Schottky Diode 2-Pin Surface Mount SOD-523 SDM20U30-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | SDM20U30-7 |
| Width | 0.9mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Designed with a low forward voltage of 500 mV for efficient performance.
- Features a compact SOD-523 package enabling easy PCB integration.
- Operating temperature range from -65°C to 125°C ensures reliable operation under varying conditions.
- Peak reverse current of 150 μA minimizes leakage losses.
- Standard compliant with automotive grade AEC-Q101 for enhanced durability.
- Measures 1.3 mm in length, 0.9 mm in width, and 0.7 mm in height.
- Supports a 1 A peak non-repetitive forward surge current capability.
- Single diode configuration suitable for general rectification applications.
Product Description
DiodesZetex SDM20U30-7 is a Schottky barrier diode designed for efficient low-voltage rectification in electronic circuits. This 2-pin surface mount diode is housed in a compact SOD-523 package measuring 1.3 mm x 0.9 mm x 0.7 mm, making it ideal for space-constrained applications.
The diode is rated for a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V. Its low forward voltage drop of 500 mV improves power efficiency while the peak reverse current of 150 μA ensures minimal leakage.
Operating over a temperature range of -65°C to 125°C, the SDM20U30-7 provides robust performance suitable for automotive and industrial environments, complying with the AEC-Q101 automotive standard. It supports a 1 A peak non-repetitive forward surge current, allowing it to handle transient overloads safely.
This Schottky diode is used extensively in power supply circuits, voltage clamping, and protection applications within electronic manufacturing, automotive electronics, and consumer devices. Its small form factor and electrical characteristics make it a reliable component in high-frequency switching and fast recovery diode roles.
Low forward voltage of 500 mV reduces conduction losses. Compact surface mount SOD-523 package for minimal PCB footprint. Wide operating temperature range from -65°C to 125°C ensures reliability. Compliance with automotive standard AEC-Q101 enhances suitability for automotive electronics.
Peak reverse current capped at 150 μA limits leakage currents. Single diode configuration supports versatile schematic incorporation. Manufactured to high-quality standards in China. Withstands 1 A peak non-repetitive forward surge current for transient protection.
Explore more Schottky diodes and semiconductor components in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 200 mA.
This diode has a peak reverse repetitive voltage rating of 30 V.
The maximum forward voltage drop for this diode is 500 mV.
The operating temperature range for this unit is from -65°C to 125°C.
The peak reverse current is capped at 150 μA, which minimizes leakage losses.
It is housed in a compact SOD-523 package, measuring 1.3 mm x 0.9 mm x 0.7 mm.
This diode can withstand a peak non-repetitive forward surge current of 1 A.
Yes, it complies with the AEC-Q101 automotive standard, enhancing its suitability for automotive applications.
The diode is configured as a single diode, making it suitable for general rectification applications.
The dimensions of this model are 1.3 mm in length, 0.9 mm in width, and 0.7 mm in height.
This Schottky diode is manufactured in China.
It is suitable for power supply circuits, voltage clamping, and protection applications in various electronic devices.
