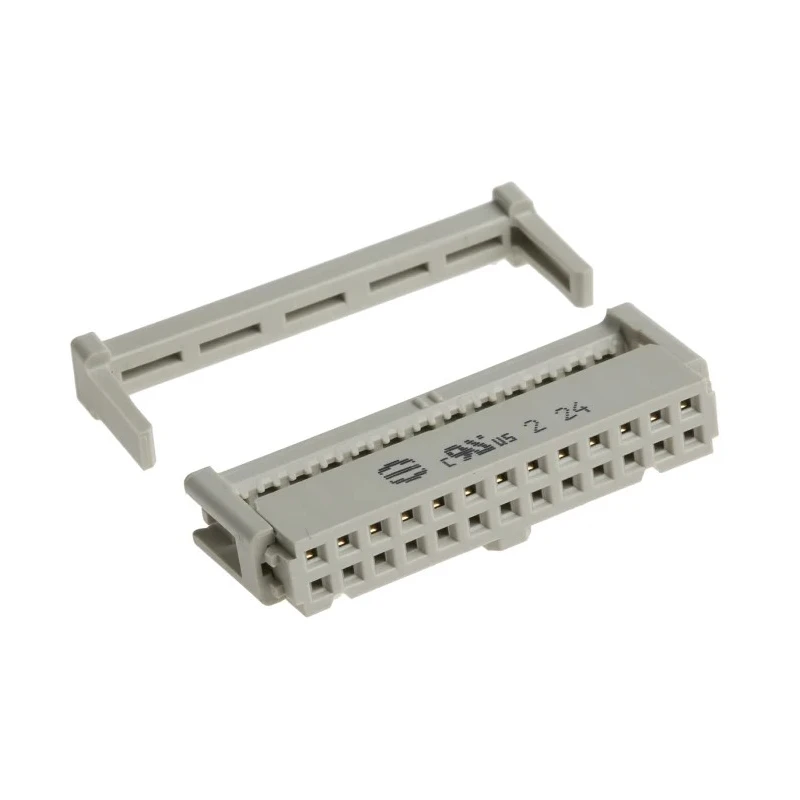

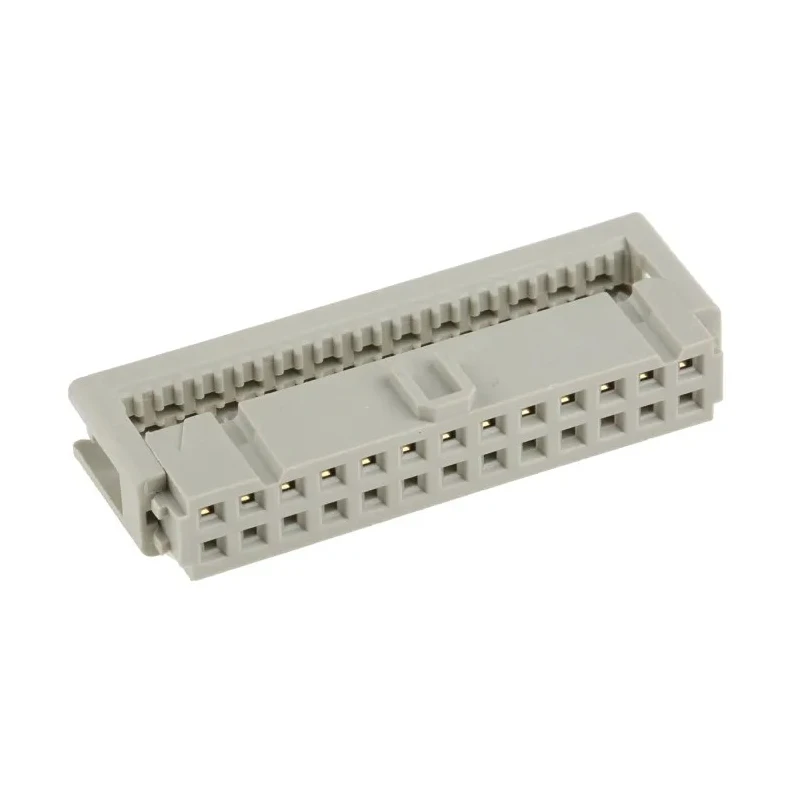

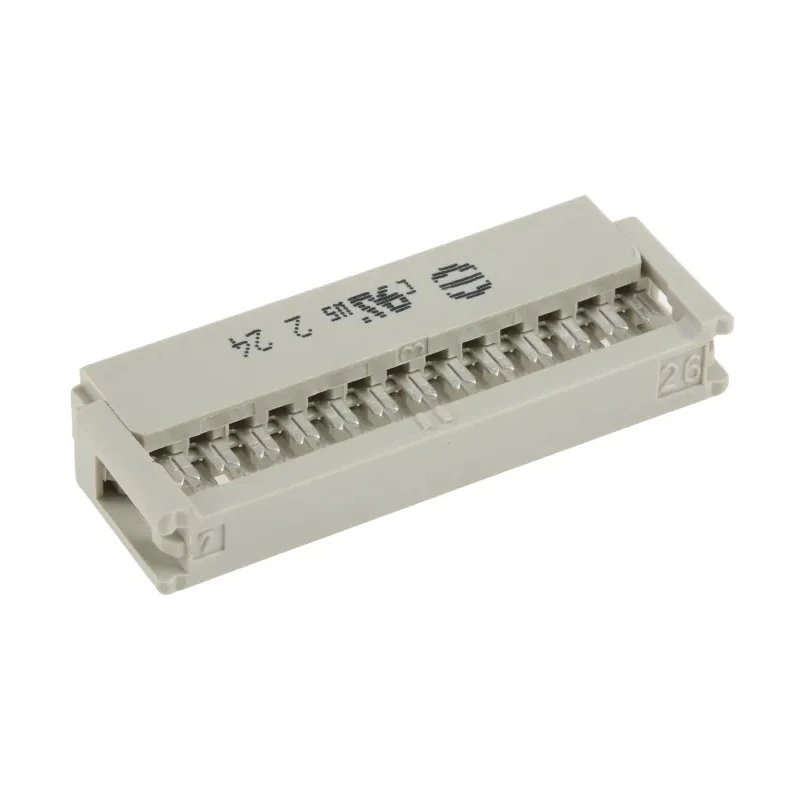

HARTING 26-Way IDC Connector Female for Cable, 2 Row 09185266813
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 26-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
| TE Connectivity 26-Way IDC Connector Female for Cable, 2 RowBrand | TE Connectivity |
Key Features
- Female connector designed for cable mounting ensures secure attachment.
- 26 contacts arranged in 2 rows allow high-density connection.
- Right-angle orientation facilitates space-efficient installations.
- Gold-plated contacts improve conductivity and resist corrosion.
- Operates within a wide temperature range from -55°C to 125°C for tough environments.
- Rated for 2.5A current and 320V AC voltage applications.
- Shrouded design provides mechanical protection and safety.
- IDC termination type reduces assembly time with reliable connections.
Product Description
The HARTING 09185266813 26-Way IDC Connector Female for Cable, 2 Row is designed for efficient and durable connectivity in demanding electronic applications. Featuring 26 gold-plated female contacts arranged in two rows with 2.54mm pitch, this connector ensures a reliable interface between cables and PCBs. The right-angle orientation supports compact and space-saving configurations, making it ideal for equipment where space constraints exist.
Its IDC termination method allows quick, tool-less, and error-resistant assembly, improving production efficiency. Rated for 2.5A current and 320V AC voltage, the connector is suitable for a wide range of industrial and automation system uses. The operating temperature span from -55°C to +125°C enables performance under harsh conditions.
The shrouded housing made of polybutylene terephthalate guards the contacts against mechanical damage and environmental factors, while the copper alloy contacts' gold plating ensures superior conductivity and corrosion resistance over time. This connector complies with standards including IDC, BT224, DIN41651, DIN EN 60603-13, and holds approvals such as UL E102079 and CSA 98267.
Female design enables straightforward cable attachment. 26 contacts ensure substantial connectivity options in a compact form factor. Right-angle orientation supports efficient use of enclosure space. 2.54mm pitch ensures compatibility with industry-standard components.
IDC termination facilitates fast, reliable assembly. Gold plating on contacts reduces wear and enhances conductivity. Wide operating temperature range for extreme environments. Shrouded construction provides increased mechanical protection.
Suitable for automation, electronic assemblies, and control units. Constructed with copper alloy contacts and durable polybutylene terephthalate housing.
This connector is widely used in industrial, manufacturing, and commercial electronic applications requiring robust and stable signal transmission. EnvMart offers this high-quality HARTING IDC Connector for customers needing dependable cable connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a current of 2.5A and a voltage of 320V AC.
It operates within a temperature range of -55°C to +125°C, making it suitable for harsh environments.
The connector features 26 contacts arranged in 2 rows.
This model utilizes IDC (Insulation Displacement Connector) termination, allowing for quick and reliable assembly.
The pitch of the contacts is 2.54mm, ensuring compatibility with industry-standard components.
The housing is made from polybutylene terephthalate, providing mechanical protection.
It features a right-angle orientation, which facilitates space-efficient installations.
It is suitable for automation, electronic assemblies, and control units in industrial and commercial environments.
The contacts are made of copper alloy and are gold-plated to enhance conductivity and resist corrosion.
This connector is shrouded, which provides additional mechanical protection for the contacts.
It complies with standards including IDC, BT224, DIN41651, and DIN EN 60603-13, and holds approvals such as UL E102079 and CSA 98267.
The connector is manufactured in India.
