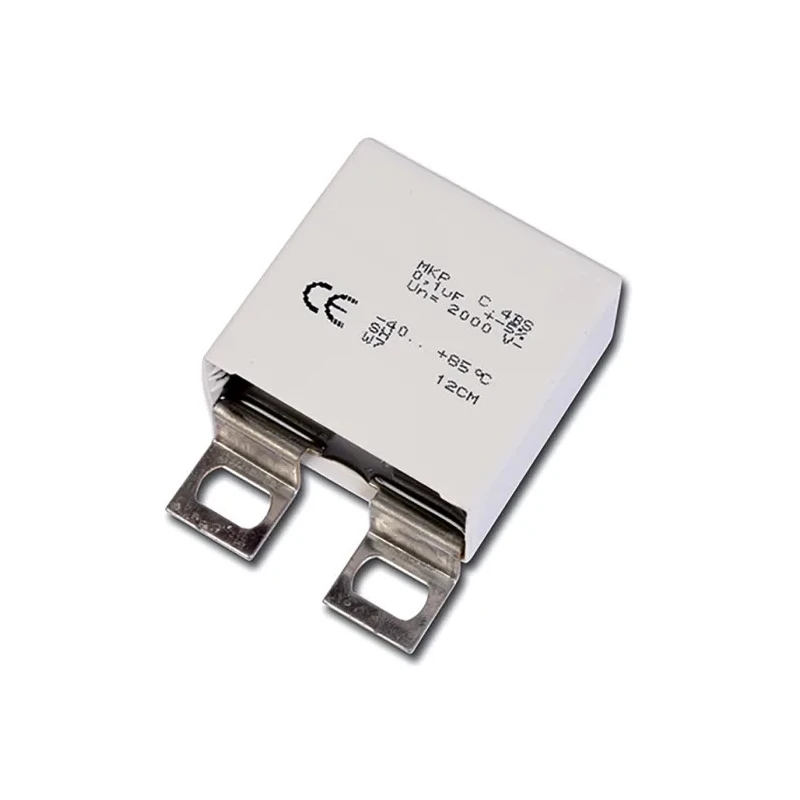

KEMET Film Capacitor ±5 % 100 nF 3 kV DC 700 V AC Panel Mount C4BS

Name: KEMET Film Capacitor ±5 % 100 nF 3 kV DC 700 V AC Panel Mount C4BS
Brand: KEMET
SKU: 151779
Price: 10.81 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	20mm
Length	41.5mm
Model	C4BS
Packaging	Bag
Width	40mm
Mount Type	Panel Mount
Series	C4BS
Maximum Operating Temperature	85°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	0.0005%
Lead Length	14mm
Standards/Approvals	EN 61071, IEC 61071, VDE 0560
Rated AC Voltage	700V ac
Rated DC Voltage	3kV dc
Lead Pitch	25.5mm
Equivalent Series Resistance ESR	17.3mΩ

Key Features

High reliability with self-healing film capacitor construction.
Suitable for high frequency and IGBT applications.
Rated for operating temperatures from -40°C to 85°C.
Radial terminal type with 25.5 mm lead pitch and 14 mm lead length.
Low dissipation factor of 0.0005% for efficient performance.
Complies with EN 61071, IEC 61071, and VDE 0560 standards.
Panel mount type for secure and easy installation.

Product Description

KEMET C4BS Film Capacitor is a high-quality electronic component designed for advanced electronic circuits requiring stable and reliable capacitance. With a capacitance of 100 nF, this capacitor supports a rated DC voltage of 3 kV and AC voltage of 700 V, ensuring robust performance in demanding electrical environments. The ±5 % tolerance guarantees precision in applications such as IGBTs, power electronics, and high frequency circuits.

The panel mount design facilitates easy integration into electronic assemblies, enhancing mechanical stability and simplifying installation. Its radial terminal type, with a lead pitch of 25.5 mm and lead length of 14 mm, supports standard PCB mounting techniques.

This capacitor features self-healing film technology to maintain function after dielectric breakdown, providing long-term durability. The low dissipation factor of 0.0005% minimizes power loss, making it efficient for high-frequency applications.

KEMET ensures compliance with international standards including EN 61071, IEC 61071, and VDE 0560, assuring quality and safety in industrial and laboratory uses. The capacitor operates reliably across a wide temperature range from -40°C to +85°C, suitable for various environmental conditions.

Common industrial uses include power electronics, renewable energy systems, motor controls, and other electrical equipment requiring stable energy storage and filtering. The compact dimensions (41.5 mm length, 40 mm width, 20 mm height) make it ideal for densely packed electronic devices.

High reliability Film Capacitor with self-healing properties. Rated DC voltage 3 kV and AC voltage 700 V for versatile use. Low ESR of 17.3 mΩ enhances efficiency in power circuits. Operating temperature range -40°C to 85°C for robust performance.

Panel mount with radial terminals ensures secure placement. Compliance with major international standards for quality assurance. Explore the range of KEMET capacitors on EnvMart for reliable components in electronic manufacturing and design projects.
