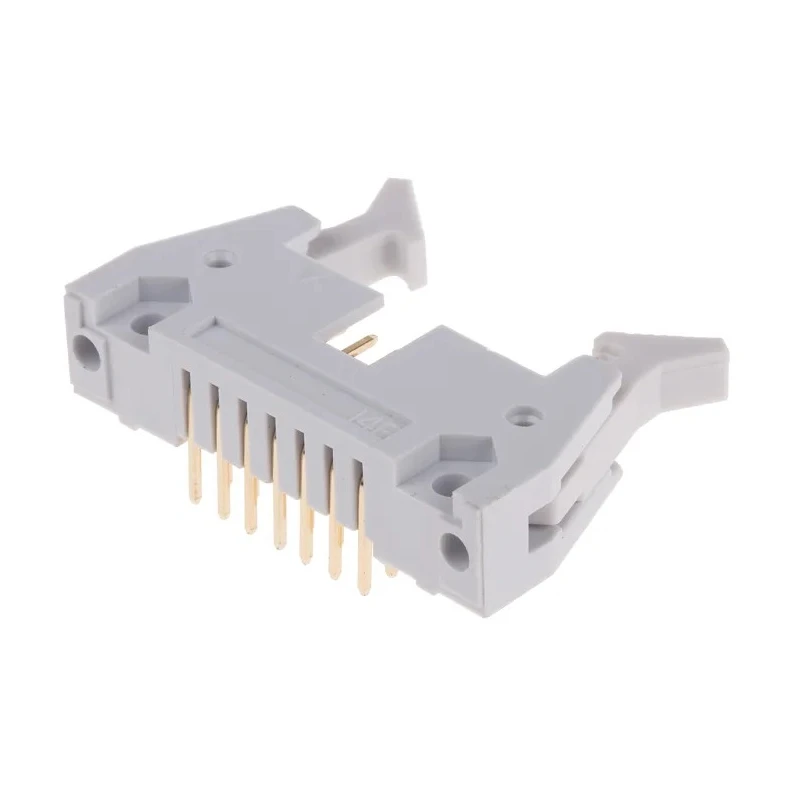

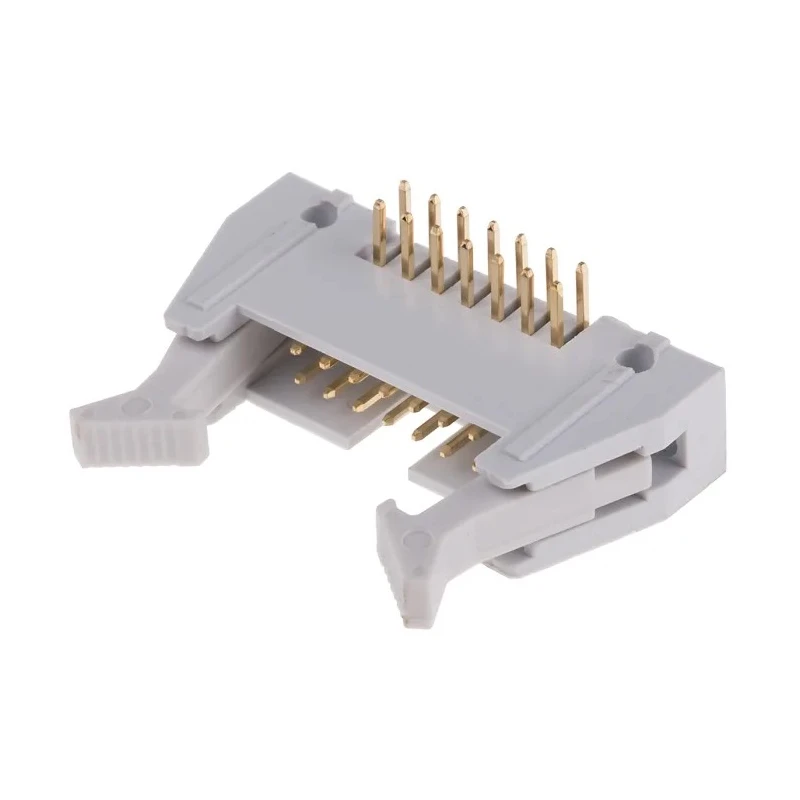

RS PRO Right Angle Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 1 Row, Shrouded 471-115
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 1A |
| Model | 471-115 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| 14 way male r/a mount side latch headerBrand | TE Connectivity |
Key Features
- Features 14 male contacts arranged in a single row for efficient signal transmission.
- Gold plated brass contacts ensure excellent conductivity and corrosion resistance.
- Thermoplastic housing material offers robust structural integrity and UL94V rated insulation.
- Supports through hole mount type with right-angle orientation for versatile PCB layouts.
- Operating temperature range from -45°C to +105°C enables use in harsh environments.
- Contact pitch of 2.54 mm allows compatibility with industry-standard connectors.
- Shrouded design provides protection against mechanical damage and contact bending.
- Solder termination type facilitates secure and reliable PCB assembly.
Product Description
RS PRO 471-115 is a high-quality Right Angle Through Hole PCB Header featuring 14 male contacts arranged in a single row with a 2.54 mm pitch. It is designed with a shrouded thermoplastic housing and gold plated brass contacts that provide excellent electrical performance and durability. This connector withstands operating temperatures from -45°C up to 105°C, making it suitable for demanding environments.
The header is engineered for through hole mounting with a right angle orientation, facilitating versatile PCB configurations in electronic assemblies. Its solder-type terminations ensure strong mechanical and electrical connections. The shrouded housing protects the contacts from physical damage and helps maintain signal integrity.
This PCB header finds applications across various industrial sectors including prototype development, medical devices, consumer electronics, data storage solutions, and industrial automation systems. Manufactured in Taiwan, it assures reliability and compliance with industry standards.
Features 14 male contacts arranged in a single row for efficient signal transmission. Gold plated brass contacts ensure excellent conductivity and corrosion resistance. Thermoplastic housing material offers robust structural integrity and UL94V rated insulation.
Supports through hole mount type with right-angle orientation for versatile PCB layouts. Operating temperature range from -45°C to +105°C enables use in harsh environments. Contact pitch of 2.54 mm allows compatibility with industry-standard connectors.
Shrouded design provides protection against mechanical damage and contact bending. Solder termination type facilitates secure and reliable PCB assembly. Manufactured in Taiwan ensuring high build quality and conformance.
Suitable for applications in prototyping, medical equipment, consumer electronics, and industrial automation. Explore related RS PRO PCB connectors and headers on EnvMart to find compatible components for your electronic assembly needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header features 14 male contacts arranged in a single row, designed for efficient signal transmission.
The contact pitch of this model is 2.54 mm, allowing compatibility with industry-standard connectors.
The maximum operating temperature for this PCB header is 105°C, making it suitable for use in demanding environments.
It supports through hole mounting with a right-angle orientation, facilitating versatile PCB configurations.
The housing is made of thermoplastic, while the contacts are gold plated brass, ensuring excellent conductivity and corrosion resistance.
This model features a solder termination type, which facilitates secure and reliable PCB assembly.
The minimum operating temperature for this PCB header is -45°C, allowing for use in harsh environments.
This PCB header has 1 row of contacts.
It is suitable for applications in prototyping, medical devices, consumer electronics, and industrial automation.
This product is manufactured in Taiwan, ensuring compliance with industry standards.
The current rating for this model is 1A.
Yes, this model features a shrouded design that provides protection against mechanical damage and contact bending.
