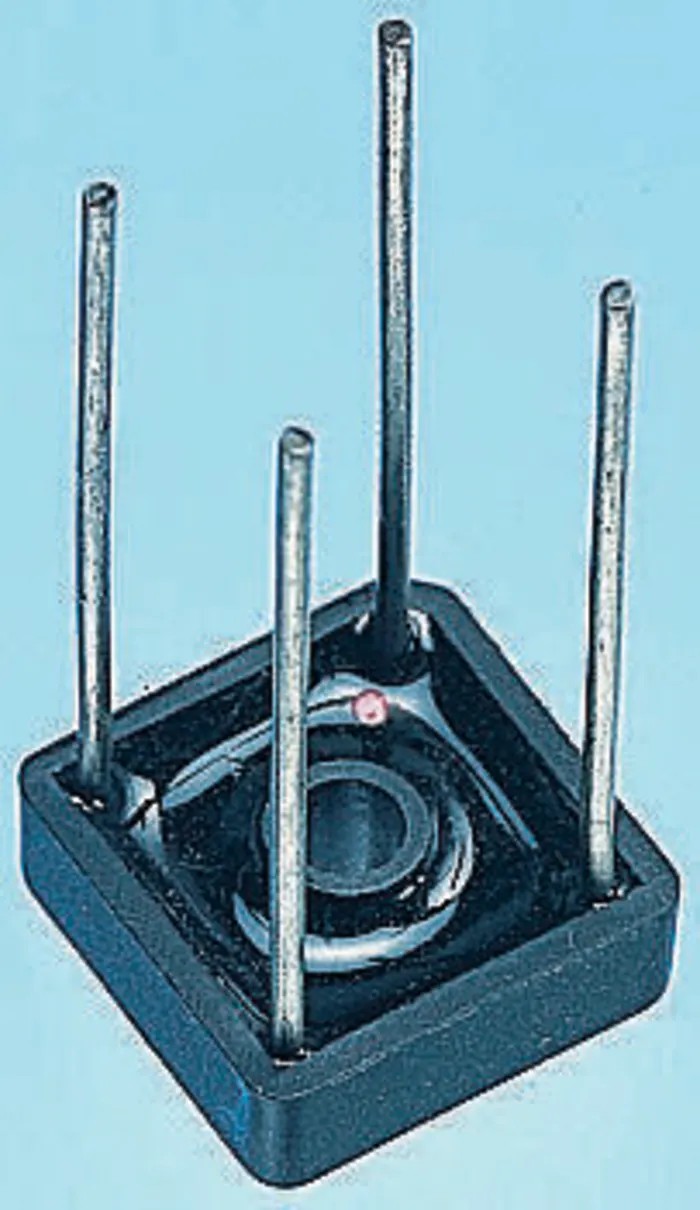

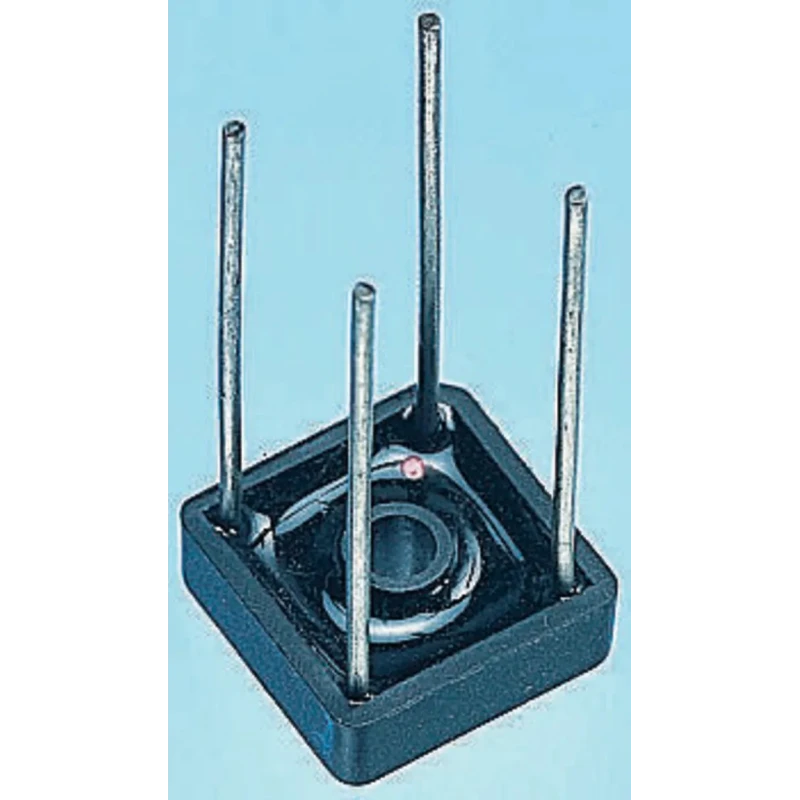

Vishay Bridge Rectifier 200 V 6 A Forward Current 137 A Surge Current 4-Pin Through Hole D-72 Package VS-KBPC602PBF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 5.33mm |
| Length | 15.75mm |
| Model | VS-KBPC602PBF |
| Width | 15.75mm |
| Mount Type | Through Hole |
| Series | VS-KBPC6 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-72 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 137A |
| Forward Current If | 6A |
| Peak Forward Voltage Vf | 1.2V |
Key Features
- Operates within a temperature range of -40°C to 150°C.
- Features a compact D-72 package with dimensions of 15.75 mm length, 15.75 mm width, and 5.33 mm height.
- Contains 4 pins for easy PCB or chassis mounting.
- Delivers a peak non-repetitive forward surge current of 137 A for high surge tolerance.
- Maintains low peak forward voltage of 1.2 V and peak reverse current of 10 μA for efficient operation.
- Built without automotive standards, suitable for industrial and electronic component applications.
- Designed for reliable full-wave rectification converting AC to DC for power supply circuits.
- Wire lead structure ensures robust electrical connections and stability.
Product Description
Vishay VS-KBPC602PBF Bridge Rectifier is a high-performance semiconductor device engineered for industrial electronics and power conversion applications. It is tailored for printed circuit board (PCB) or chassis mounting with a through-hole mount type and a durable 4-pin D-72 package.
This single-phase bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 200 V and a continuous forward current (If) of 6 A, enabling efficient full-wave rectification of alternating current (AC) to direct current (DC). The device handles peak non-repetitive forward surge currents (Ifsm) up to 137 A, offering robust protection in surge conditions common in industrial environments.
Operating comfortably in temperature ranges from -40°C to 150°C, it ensures reliability across diverse thermal conditions. The package dimensions are compact at 15.75 mm (length) x 15.75 mm (width) x 5.33 mm (height), minimizing footprint on PCB designs.
With a low peak forward voltage of 1.2 V and minimal peak reverse current of 10 μA, the rectifier provides efficient energy conversion with reduced power losses. The wire lead structure aids in stable electrical connections essential for industrial and HVAC systems, manufacturing, and electronic assemblies.
Operates over a wide temperature range for durability in harsh conditions. Compact size reduces PCB space requirements. High surge current capacity for transient protection. Reliable full-wave rectification for stable DC power supply.
Low voltage drop ensures efficient energy use. Simplified mounting with through-hole design. Wire lead structure enhances electrical connection integrity. Suitable for Semiconductor and Electronics Components industrial applications.
This bridge rectifier is ideal for use in industrial machines, electronic circuits, power supplies, and HVAC equipment. Its proven reliability and electrical characteristics make it an essential component in manufacturing electronic devices and assemblies.
Explore more semiconductor products or search for additional Vishay bridge rectifiers in the Electronics & Electricals category on EnvMart for comprehensive electronics component solutions.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
It has a peak reverse repetitive voltage (Vrrm) rating of 200 V.
The continuous forward current capacity of this rectifier is 6 A.
This model can handle a peak non-repetitive forward surge current of up to 137 A.
The D-72 package dimensions are 15.75 mm in length, 15.75 mm in width, and 5.33 mm in height.
The peak forward voltage for this bridge rectifier is 1.2 V.
The minimum operating temperature is -40°C.
This model features 4 pins for easy PCB or chassis mounting.
It uses a through-hole mounting type, suitable for printed circuit boards.
The peak reverse current rating for this model is 10 μA.
Yes, it is designed for industrial and electronic component applications, providing reliable full-wave rectification.
This model has a single-phase configuration.
