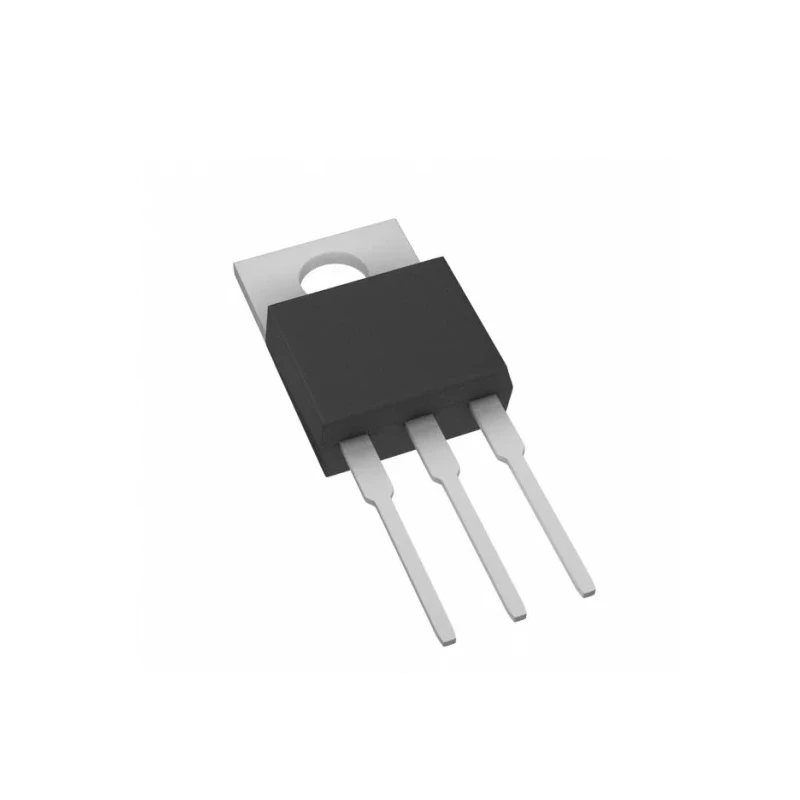

Vishay Single Type N-Channel Power MOSFET 15 A, 50 V, 3-Pin TO-220AB IRFZ20PBF

Free Delivery in India | Lowest Global Shipping Charges

Vishay Single Type N-Channel Power MOSFET 15 A, 50 V, 3-Pin TO-220AB IRFZ20PBF

Name: Vishay Single Type N-Channel Power MOSFET 15 A, 50 V, 3-Pin TO-220AB IRFZ20PBF
Brand: Vishay
SKU: 99496
Price: 0.68 USD
Availability: InStock



Category MOSFET Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	6.48mm
Length	14.4mm
Model	IRFZ20PBF
Width	10.52mm
Mount Type	Socket
Maximum Operating Temperature	150°C
Package Type	TO-220AB
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS 2002/95/EC
Pin Count	3
Number of Elements per Chip	1
Channel Type	Type N
Maximum Continuous Drain Current Id	15A
Maximum Drain Source Voltage Vds	50V
Maximum Drain Source Resistance Rds	0.1Ω
Maximum Power Dissipation Pd	40W
Typical Gate Charge Qg @ Vgs	17nC
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	1.5V
Transistor Configuration	Single

Key Features

The MOSFET features a 3-pin TO-220AB package for easy mounting via socket.
Offers a low maximum drain-source resistance of 0.1 ohms for minimal power loss.
Capable of operating at temperatures ranging from -55°C to 150°C ensuring high thermal stability.
Has a maximum power dissipation rating of 40 W for robust performance in power circuits.
Incorporates fast switching characteristics and extremely low RDS(on).
Forward voltage is 1.5 V supporting low conduction drop.
Typical gate charge is 17 nC at Vgs aiding in efficient gate drive control.
Lead (Pb) free component compliant with RoHS directives.

Product Description

Vishay IRFZ20PBF is a Single Type N-Channel Power MOSFET housed in a TO-220AB 3-pin package designed to provide efficient power switching solutions. It supports a maximum continuous drain current of 15 A and a maximum drain-source voltage of 50 V, making it suitable for various electronic power applications.

This MOSFET operates over a wide temperature range from -55°C to 150°C, ensuring excellent temperature stability for industrial and commercial uses. It has a low maximum drain-source resistance of 0.1 ohm at a gate-source voltage of 10 V, contributing to lower conduction losses and improved energy efficiency.

With a maximum power dissipation of 40 watts, this device accommodates high power loads while maintaining reliable operation. Its fast switching ability and reduced gate drive current aid in enhanced performance in battery chargers, power inverters, switching mode power supplies, and power supply circuits.

The compact plastic TO-220AB package allows for easy mounting with socket compatibility and supports paralleling for increased current capacity. As a lead-free component, it complies with RoHS 2002/95/EC standards.

Compact plastic package designed for excellent temperature stability and efficiency. Optimized for low switching and conduction losses. Extremely low drain-source resistance ensures high efficiency. Fast switching speed with a typical gate charge of 17 nC at Vgs.

Operating temperature range from -55°C to 150°C. Maximum power dissipation of 40 W for robust applications. Lead (Pb) free and RoHS compliant for environmental safety. Applications include battery chargers, inverters, power supplies, and SMPS.

The Vishay IRFZ20PBF MOSFET is ideal for industrial, commercial, and power electronics applications demanding a reliable, efficient, and thermally stable power switch. Explore more Vishay semiconductors and power devices on EnvMart for your next design project.
