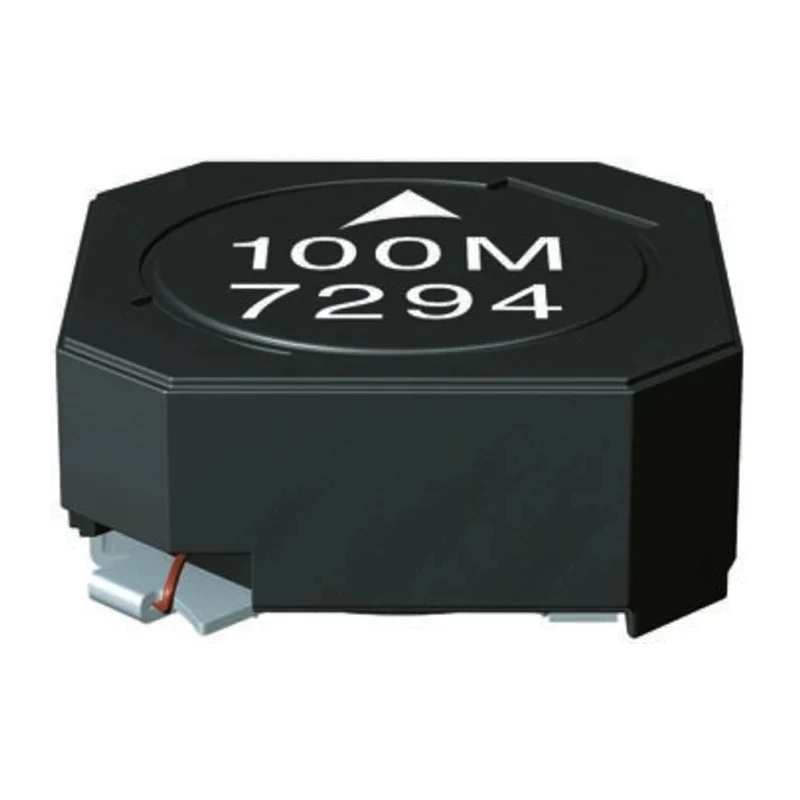

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 % 530 mA Idc B82462G4104M000

TDK B82462G4104M000 shielded wirewound surface mount inductor with ferrite core is designed for electronic applications requiring stable inductance and excellent electromagnetic interference suppression. With an inductance rating of 100 μH ±20% and capable of handling a maximum DC current of 530 mA, it meets stringent automotive requirements complying with AEC-Q200 standard.

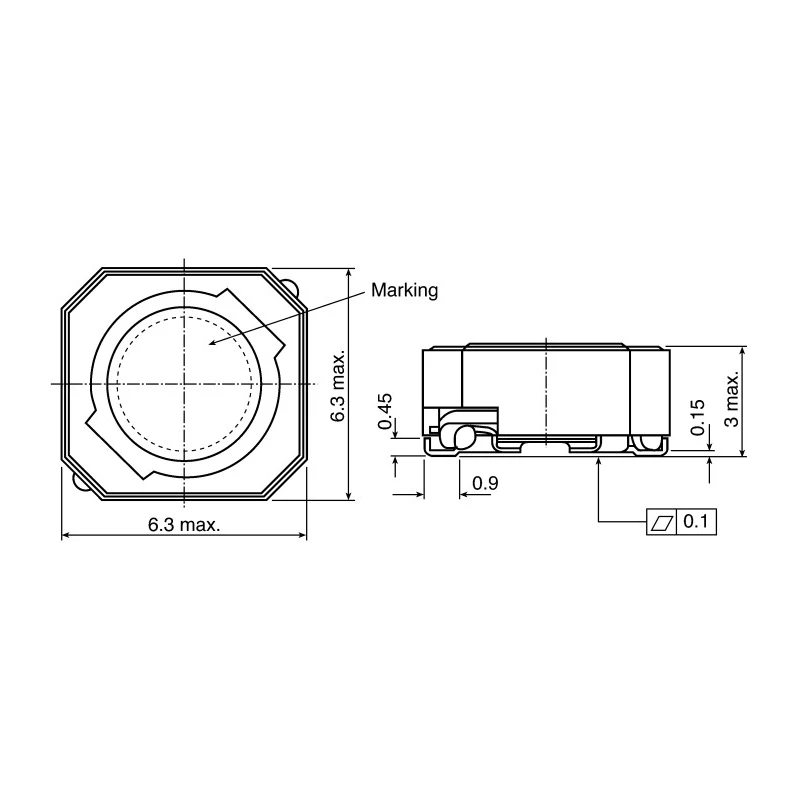

The inductor features a wirewound construction on a ferrite core encapsulated in a magnetically shielded housing, ensuring robust noise reduction and consistency across operating conditions from -55°C up to 150°C. Its solder termination style and compact dimensions (6.3 mm length, 6.3 mm depth, and 3 mm height) facilitate straightforward integration into surface mount technology assemblies. The maximum DC resistance of 580 mΩ supports efficient power handling, while the self-resonant frequency of 8.5 MHz allows operation in high-frequency circuits.

This component is supplied in tape & reel packaging, optimizing it for high-volume automated manufacturing processes. Its RoHS compliance guarantees environmental safety and regulatory adherence.

Typical applications include filtering in power supplies and automotive electronics where reliability and EMI suppression are crucial. The B82462-G4 series from TDK is ideal for industrial, automotive, and commercial electronic circuit designs where compact, reliable inductors are essential.

Magnetically shielded wire wound construction ensuring EMI reduction. Ferrite core construction provides stable inductance over wide temperature range. Suitable for surface mount technology with solder termination style.

Operates reliably between -55°C and 150°C ambient temperatures. Complies with automotive standard AEC-Q200 for quality and reliability. Compact 6.3 mm x 6.3 mm footprint with 3 mm height for space-saving SMT designs. Maximum DC resistance is 580 milliohms to minimize power losses.

Maximum self-resonant frequency of 8.5 MHz supports high-frequency applications. Available in tape and reel packaging for automated assembly processes. RoHS compliant ensuring environmental safety and compatibility. Explore a wide range of inductors and electronic components at EnvMart for your industrial and commercial manufacturing needs.
