TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20% 1.22A Idc VLCF4020T-100MR85
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 4.3mm |
| Model | VLCF4020T-100MR85 |
| Depth | 4mm |
| Packaging | Taping |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 4020 |
| Maximum DC Current | 1.22A |
| Maximum DC Resistance | 185mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Wirewound construction with magnetic shielding for reduced interference.
- Ferrite core enhances magnetic performance and stability.

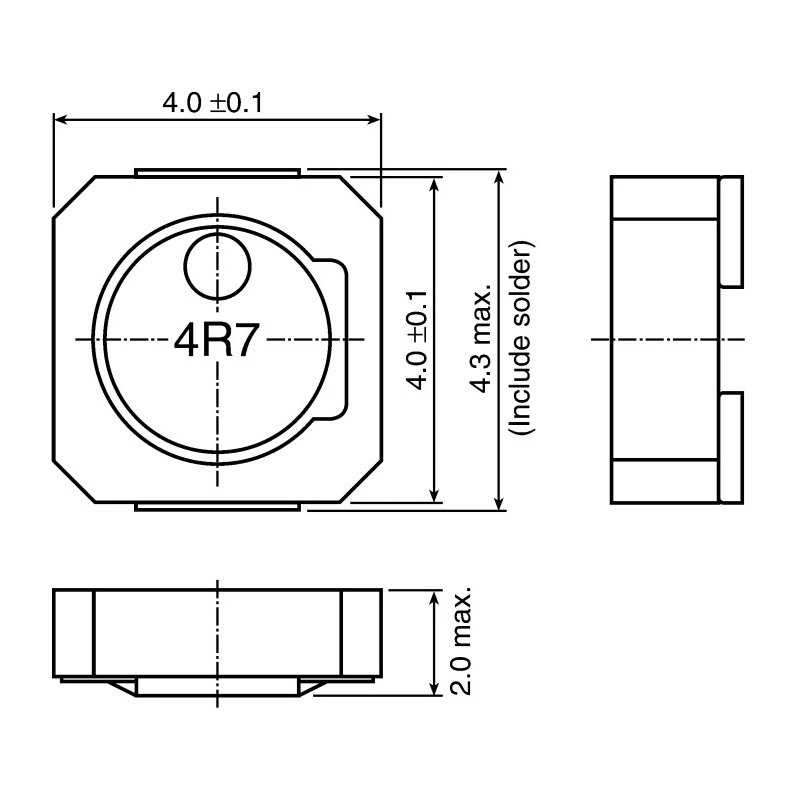

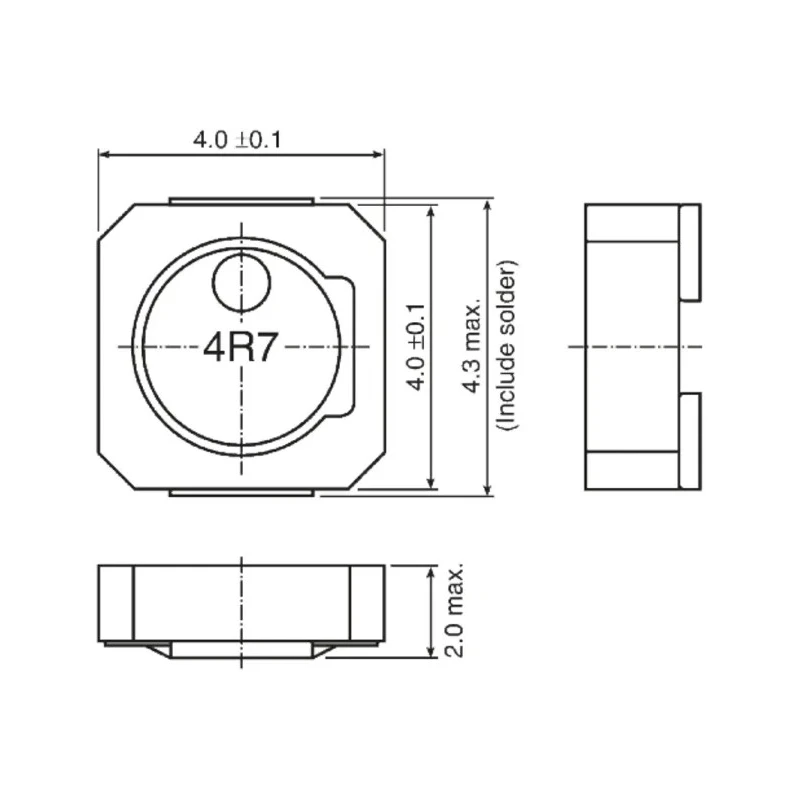

- Compact 4020 package size with dimensions 4.3mm length, 2mm height, and 4mm depth.
- Operates reliably between -40°C and 105°C temperature range.
- Maximum DC resistance of 185mΩ ensures efficient current flow.
- Inductance tolerance of ±20% suitable for portable DC-DC converter applications.
- Taped packaging designed for automated surface mount assembly.
- RoHS compliant ensuring environmentally friendly manufacturing.
Product Description
TDK VLCF4020T-100MR85 is a shielded wirewound surface mount inductor featuring a ferrite core, providing an inductance of 10 μH with ±20% tolerance and a maximum DC current rating of 1.22 A. It is designed in a compact 4020 package measuring 4.3mm in length, 2mm in height, and 4mm in depth, optimized for space-constrained electronic assemblies.
Constructed with magnetic shielding, the inductor suppresses electromagnetic interference, making it ideal for use in portable DC-DC converters and other power electronics requiring stable inductance performance under varying conditions. The ferrite core material enhances magnetic efficiency and stability across the operating temperature range of -40°C to 105°C. The device features low maximum DC resistance of 185 mΩ, contributing to low power losses and improved energy efficiency.
Manufactured to meet RoHS standards, the inductor supports environmentally compliant electronics assemblies. Its surface mount termination and molded construction allow for reliable automated assembly and long-term mechanical robustness. Packaged on tape, it facilitates efficient pick-and-place from reels during production.
Wirewound construction with magnetic shielding for reduced electromagnetic interference. Ferrite core enhances magnetic performance and stability. Compact 4020 package size suitable for dense PCB layouts. Wide operating temperature range from -40°C to 105°C ensures versatility.
Low maximum DC resistance at 185 mΩ lowers power losses. Inductance tolerance of ±20% matches portable power converter needs. RoHS compliant for environmental safety. Molded surface mount device packaged on taping reels for automation.
This TDK VLCF series surface mount inductor is widely used in industrial electronics, telecommunications, consumer electronics, and automotive portable power solutions requiring robust, compact inductive components. For more options in Surface Mount Inductors, browse the Electronics Components category in EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this surface mount inductor is 10 μH with an inductance tolerance of ±20%.
This model has a maximum DC current rating of 1.22 A.
The dimensions of the 4020 package are 4.3 mm in length, 2 mm in height, and 4 mm in depth.
It operates reliably between -40°C and 105°C.
The maximum DC resistance is 185 mΩ, which helps ensure efficient current flow.
It features a wirewound construction with magnetic shielding to reduce electromagnetic interference.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing.
The core material of this inductor is ferrite, which enhances magnetic performance and stability.
This inductor uses a surface mount termination style, designed for automated assembly.
It is packaged on tape, facilitating efficient pick-and-place during production.
This inductor is commonly used in portable DC-DC converters and various power electronics applications.
This inductor belongs to the VLCF series of TDK inductors.
