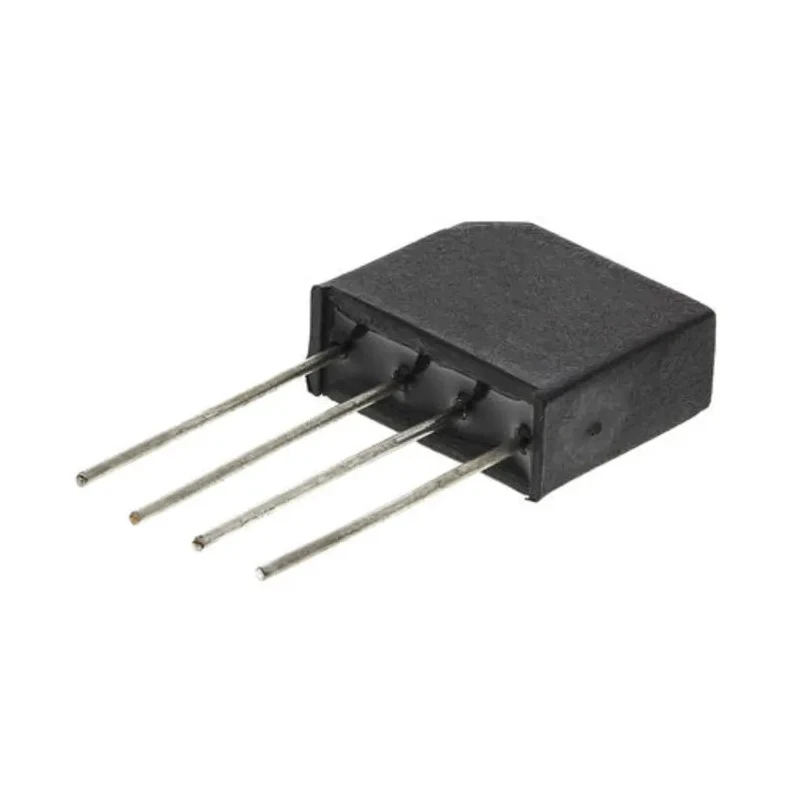

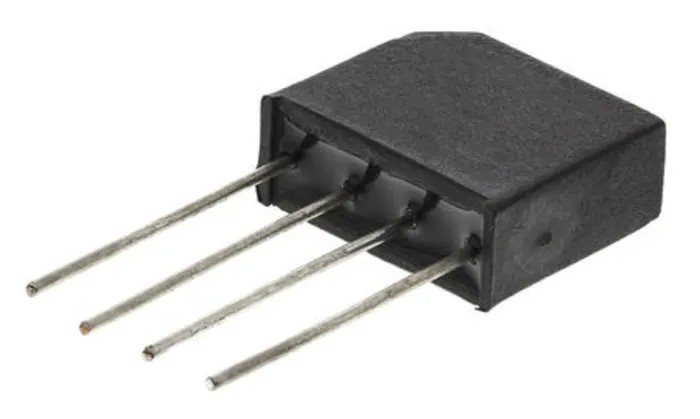

Vishay Bridge Rectifier, 100 V 52 A, 4-Pin Single VS-2KBB10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15mm |
| Length | 17.5mm |
| Model | VS-2KBB10 |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | VS-2KBB |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | D-37 |
| Minimum Operating Temperature | -40°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 52A |
| Forward Current If | 1.9A |
| Peak Forward Voltage Vf | 1.1V |
| Standard pin configuration is | - ∼ + ∼ |
| Alternative pin configuration (part no. suffix R) is | - ∼ ∼ + |
| Vishay Bridge Rectifier, 400 V 52 A, 4-Pin SingleBrand | Vishay |
Key Features
- Designed for through hole mounting on printed circuit boards.
- Compact D-37 package with SIL PCB mounting suitable for high reliability applications.
- Operates at a forward current of 1.9 A with a maximum operating temperature of 150°C.
- Standard pin configuration provides ease of installation with 2.54 mm grid spacing.
- High surge current rating allows handling of peak non-repetitive forward surge current of 52 A.
- Equipped with low peak forward voltage of 1.1 V for efficient operation.
- Operates reliably in ambient temperatures from -40°C to 150°C.
- Manufactured in India ensuring quality compliance.
Product Description
Vishay VS-2KBB10 Bridge Rectifier is a high-performance semiconductor device designed for full-wave rectification converting AC input to steady DC output in electronic circuits.
This single-phase component features a peak reverse repetitive voltage rating of 100 V and supports a surge current up to 52 A, making it suitable for demanding power applications.
The 4-pin single configuration, housed in a compact D-37 package, is optimized for through hole mounting on printed circuit boards with leads spaced at standard 2.54 mm, simplifying PCB design and assembly.
Built with SIL PCB mounting technology, it assures high reliability and thermal performance under continuous operation up to 150°C. Its low forward voltage drop of 1.1 V ensures energy-efficient operation, critical in power-sensitive systems.
The rectifier is engineered to operate in a wide temperature range from -40°C to 150°C, making it ideal for industrial, automotive, and consumer electronics applications requiring robustness against thermal stresses.
The standard pin configuration (- ∼ + ∼) allows straightforward integration into various circuit designs, with an alternative configuration available (part suffix R) for specialized applications.
Designed for through hole mounting on printed circuit boards. Compact D-37 package with SIL PCB mounting suitable for high reliability applications. Operates at a forward current of 1.9 A and withstands peak surge currents of up to 52 A.
Standard pin configuration and alternative pin options enhance design flexibility. Wide operating temperature range from -40°C to 150°C for diverse environments. Low forward voltage drop reduces power loss in circuits. Produced under strict quality standards in India.
This bridge rectifier is well-suited for industrial instrumentation, power supply units, and other electronic devices requiring reliable AC to DC conversion. Vishay's 2KBB series ensures compact size with excellent electrical and thermal performance.
Explore more products in the Vishay semiconductor range at EnvMart for tailored electronic solutions.
Explore more products in our Bridge Rectifier Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage rating of the Vishay VS-2KBB10 bridge rectifier is 100 V.
This model operates at a maximum temperature of 150°C.
The forward current rating for the VS-2KBB10 is 1.9 A.
The standard pin configuration of this rectifier is - ∼ + ∼, with an alternative configuration available for specialized applications.
It can handle a peak non-repetitive forward surge current of 52 A.
The dimensions of this bridge rectifier are 17.5 mm in length, 6.5 mm in width, and 15 mm in height.
The package type for the VS-2KBB10 is D-37, designed for through-hole mounting.
The minimum operating temperature for this model is -40°C.
This bridge rectifier is suitable for industrial instrumentation, power supply units, and other electronic devices requiring reliable AC to DC conversion.
This rectifier uses through-hole mounting on printed circuit boards.
The forward voltage drop of this model is 1.1 V, which contributes to its energy-efficient operation.
The Vishay VS-2KBB10 is manufactured in India, ensuring quality compliance.
