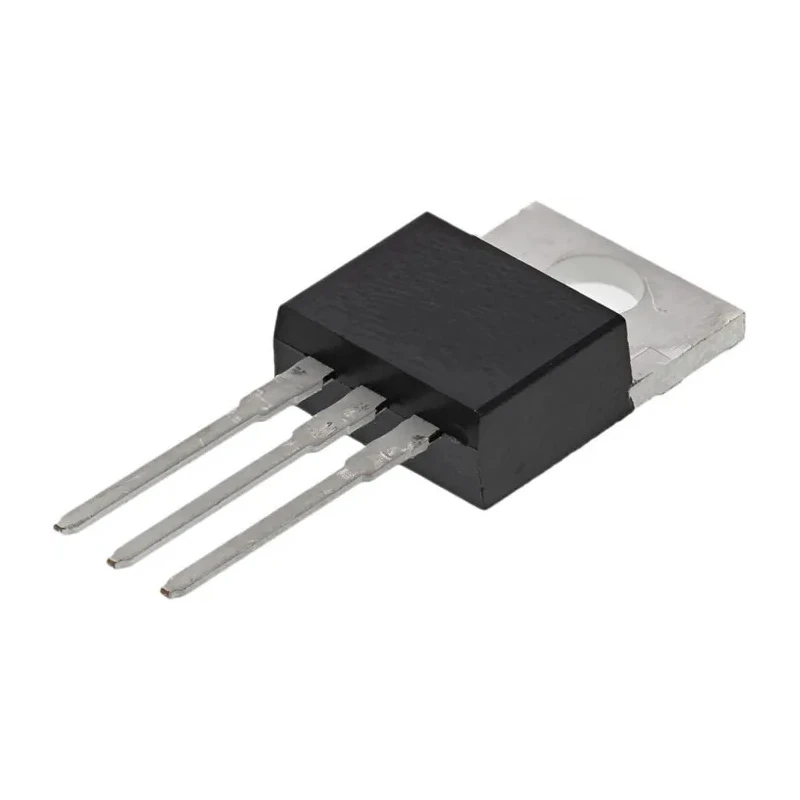

DiodesZetex N-Channel MOSFET 130A 60V Enhancement TO-220 Package DMNH6008SCT
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.1mm |
| Length | 3mm |
| Model | DMNH6008SCT |
| Width | 2.5mm |
| Mount Type | Through Hole |
| Series | DMN |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 130A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 6mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 1.13W |
| Typical Gate Charge Qg @ Vgs | 40nC |
| Maximum Gate Source Voltage Vgs | 12V |
| Forward Voltage Vf | 0.7V |
Key Features
- The DMNH6008SCT is an advanced N-channel MOSFET with 130A maximum continuous drain current.
- It supports operation up to 60V drain-source voltage for versatile applications.
- Features low drain-source resistance of 6 mΩ, improving power efficiency.
- Packaged in a TO-220 form factor with through-hole mounting for easy PCB integration.
- Rated for operation from -55°C to 175°C, suitable for automotive and industrial environments.
- Supports a maximum gate source voltage of 12V with a typical gate charge of 40nC.
- Complies with AEC-Q101 automotive standard, ensuring reliability.
- Perfect for power switching and high-current electronic circuits.
Product Description
DiodesZetex DMNH6008SCT N-Channel MOSFET is designed for high current and voltage handling, making it ideal for demanding power applications. This enhancement mode MOSFET delivers a maximum continuous drain current of 130A and operates reliably up to a drain-source voltage of 60V.
The DMNH6008SCT comes in a robust TO-220 package with 3 pins, facilitating standard through-hole mounting. Its low Rds(on) of 6 mΩ results in minimal power loss during operation, benefiting efficiency in switching power supplies, motor controls, and other power management designs.
This device is suitable for operation in challenging environments, rated with an operating temperature range from -55°C to 175°C. With compliance to the AEC-Q101 automotive standard, it ensures long-term reliability and durability, even in automotive-grade applications.
The MOSFET features an enhancement mode channel, requiring a positive gate voltage to turn on. It offers a maximum gate-source voltage of 12V and a typical gate charge of 40nC, streamlining switching performance in rapid control circuits.
The DMNH6008SCT is an advanced N-channel MOSFET with 130A maximum continuous drain current. It supports operation up to 60V drain-source voltage for versatile applications. Features low drain-source resistance of 6 mΩ, improving power efficiency.
Packaged in a TO-220 form factor with through-hole mounting for easy PCB integration. Rated for operation from -55°C to 175°C, suitable for automotive and industrial environments. Supports a maximum gate source voltage of 12V with a typical gate charge of 40nC.
Complies with AEC-Q101 automotive standard, ensuring reliability. Perfect for power switching and high-current electronic circuits. Compact size (3mm x 2.5mm x 1.1mm) allows for space-efficient installations.
This MOSFET is widely used in industrial, automotive, power electronics, and renewable energy systems. Applications include motor drives, DC-DC power conversion, battery management, and high-efficiency inverters. Its high performance and robust features make it a preferred choice for engineers and designers needing reliable switching solutions.
Explore more DiodesZetex semiconductor products and MOSFET solutions on EnvMart for precise and efficient electronic component selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 130A.
It supports a maximum drain-source voltage of 60V.
The low drain-source resistance (Rds(on)) is 6 mΩ, which improves power efficiency.
The operating temperature range is from -55°C to 175°C.
It is packaged in a TO-220 form factor with through-hole mounting.
The maximum gate-source voltage is 12V.
The typical gate charge is 40nC at the specified gate-source voltage.
It complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The dimensions are 1.1mm in height, 3mm in length, and 2.5mm in width.
This model is suitable for applications such as motor drives, DC-DC power conversion, and battery management.
The maximum power dissipation rating is 1.13W.
It has a pin count of 3.
