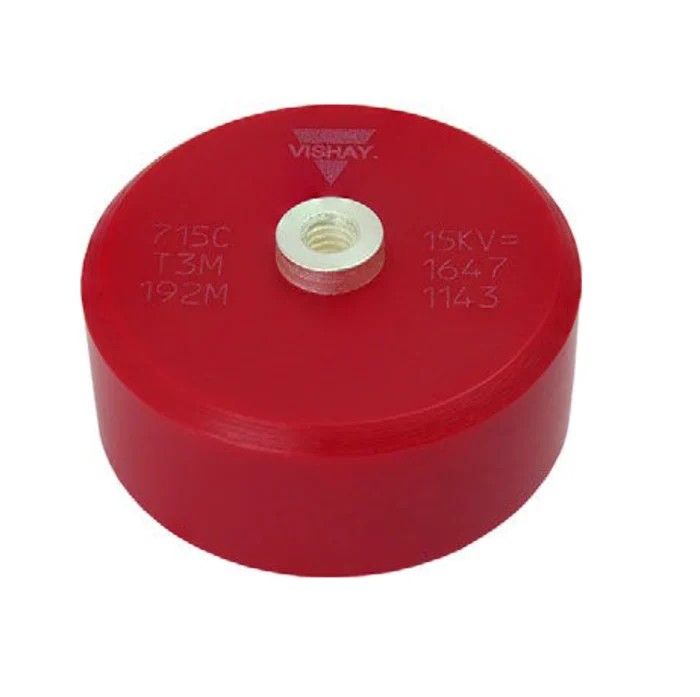

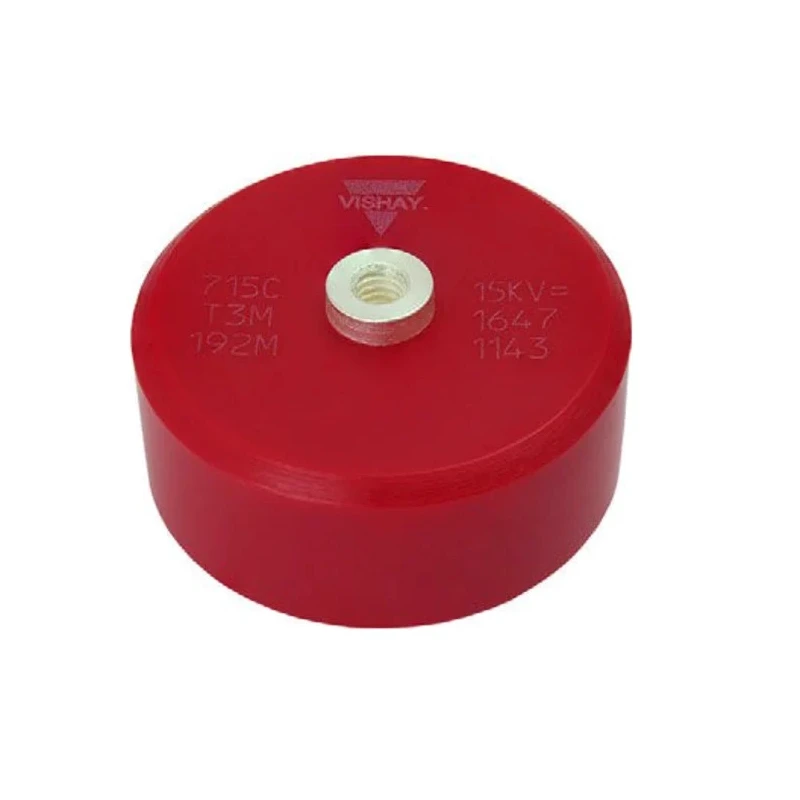

Vishay Single Layer Ceramic Capacitor 3.3 nF 30kV dc Y5U Dielectric Disc Package Screw Terminal 85 °C Max 715C30DKD33

Vishay 715C30DKD33 single layer ceramic capacitor is a high voltage, class 1 ceramic disc capacitor designed for demanding industrial and electronic applications. It provides a nominal capacitance of 3.3 nF and an operational DC voltage rating of 30 kV, making it suitable for usage in high voltage power supplies, CO2 laser systems, X-ray machines, welding equipment, and various industrial systems.

This capacitor utilizes a Y5U dielectric material with a wide capacitance tolerance range of -20 to 80%, enabling it to handle fluctuating operating conditions while maintaining stable performance. The disc package with a 54.1 mm diameter and screw terminal mounting ensures robust and secure electrical connections, supporting easy integration into bulk or custom assemblies.

The maximum operating temperature rating of 85 °C provides reliable operation under elevated thermal conditions. With a low dissipation factor of 0.2% at 1 kHz frequency, this component minimizes energy losses during operation, improving overall circuit efficiency.

Vishay's design complies with RoHS environmental standards, reflecting a commitment to sustainable manufacturing practices. Proudly manufactured in Germany, these capacitors meet stringent quality and durability requirements to serve critical electronic and industrial markets.

High voltage class 1 ceramic single layer AC and DC disc capacitor. Features Y5U dielectric with capacitance tolerance from -20 to 80%. Screw terminal mounting providing secure electrical connections. Maximum operating temperature rating of 85 °C ensures reliable performance.

Disc package with 54.1 mm diameter suitable for bulk mounting. Dissipation factor of 0.2% at 1 kHz enhances efficiency. RoHS compliant construction supports environmental safety standards. Designed for high voltage power supplies, CO2 lasers, X-ray and welding equipment.

Manufactured in Germany, ensuring high-quality production standards. Explore the full range of high reliability capacitors and electronic components on EnvMart for advanced industrial, laboratory, and manufacturing applications.
