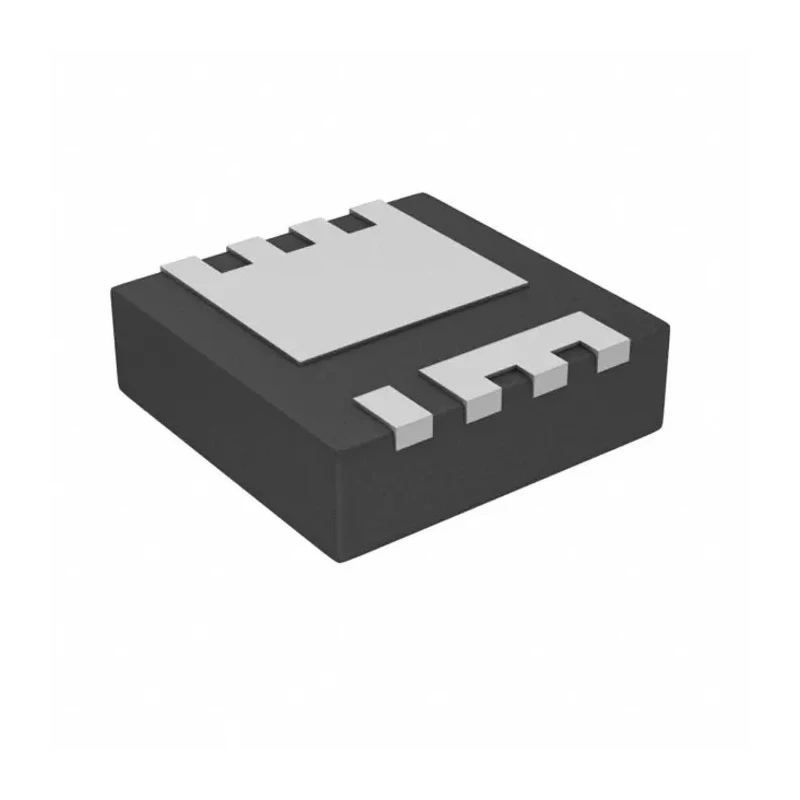

Infineon BSZ011NE2LS5IATMA1 N-Channel MOSFET, 212A, 40V, 8-Pin TSDSON-8 FL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | BSZ011NE2LS5IATMA1 |
| Mount Type | Surface |
| Series | BSZ |
| Maximum Operating Temperature | 175°C |
| Package Type | TSDSON-8 FL |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 212A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 0.7mΩ |
| Channel Mode | N |
| Maximum Power Dissipation Pd | 81W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1V |
Key Features
- Maximum continuous drain current of 212A for robust power handling.
- Rated for 40V drain-source voltage, ideal for automotive and industrial circuits.
- Very low on-resistance of 0.7mΩ minimizes power loss.
- High power dissipation up to 81W supports efficient operation.
- 8-pin TSDSON-8 FL surface mount package enables compact PCB designs.
- Operates reliably across a wide temperature range of -55°C to 175°C.
- RoHS compliant and halogen-free construction for environmental safety.
- Monolithic integrated Schottky-like diode improves switching efficiency.
Product Description
Infineon BSZ011NE2LS5IATMA1 N-Channel MOSFET offers exceptional performance and reliability, designed for high-efficiency power conversion, voltage regulation, and fast switching in demanding automotive and industrial applications. With a maximum continuous drain current of 212A and a drain-source voltage rating of 40V, this MOSFET supports robust current flow while providing safety and durability in circuits requiring high output.
The TSDSON-8 FL package features a surface mount design with 8 pins, allowing for compact integration onto printed circuit boards. The device boasts a very low on-resistance of 0.7mΩ, which minimizes heat generation and maximizes efficiency during operation. Supporting a power dissipation of up to 81W, it is suitable for use in systems with substantial power demands, including motor drives, DC-DC converters, and high-performance buck converters.
This model includes monolithic integrated Schottky-like diode functionality, enhancing switching performance and reducing reverse recovery losses. Its automotive-grade construction ensures long-term stability under challenging temperature conditions, with an operating range from -55°C up to 175°C. The gate-source voltage is rated at 20V, facilitating secure interface with driver ICs and microcontroller signals.
Infineon's OptiMOS 5 Power-Transistor technology delivers advanced features, including Pb-free lead plating, RoHS compliance, and halogen-free construction in accordance with IEC61249-2-21. The device supports efficient production workflows, especially when supplied on reels for automated assembly.
Maximum drain current of 212A and drain-source voltage of 40V. Ultra-low on-resistance for efficient power delivery. Integrated Schottky-like diode reduces switching losses. TSDSON-8 FL surface mount package for space-saving design.
Safe operation between -55°C and 175°C. RoHS and halogen-free for green manufacturing requirements. Reliable for use in industrial, automotive, and commercial electronics.
Ideal applications include industrial motor controls, power supply modules, automotive electronics, high-current switching, and DC-DC conversion. This MOSFET is a top choice for engineers seeking efficient power management and durability in advanced electronic assemblies.
Explore more Infineon semiconductor products in the MOSFET category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is 212A, allowing for robust power handling in various applications.
This MOSFET is rated for a drain-source voltage of 40V, making it suitable for automotive and industrial circuits.
The on-resistance is very low at 0.7mΩ, which minimizes power loss during operation.
It supports a maximum power dissipation of up to 81W, facilitating efficient operation in high-demand applications.
The device operates reliably across a wide temperature range of -55°C to 175°C.
This model comes in an 8-pin TSDSON-8 FL surface mount package, allowing for compact PCB designs.
The maximum gate-source voltage is rated at 20V, ensuring compatibility with driver ICs and microcontroller signals.
Yes, it includes a monolithic integrated Schottky-like diode that improves switching efficiency and reduces reverse recovery losses.
Yes, it is RoHS compliant and halogen-free, aligning with environmental safety requirements.
This MOSFET is ideal for applications such as industrial motor controls, power supply modules, automotive electronics, and DC-DC conversion.
The typical gate charge at Vgs is 80nC, which contributes to its efficient switching performance.
The country of origin for this MOSFET is India.
