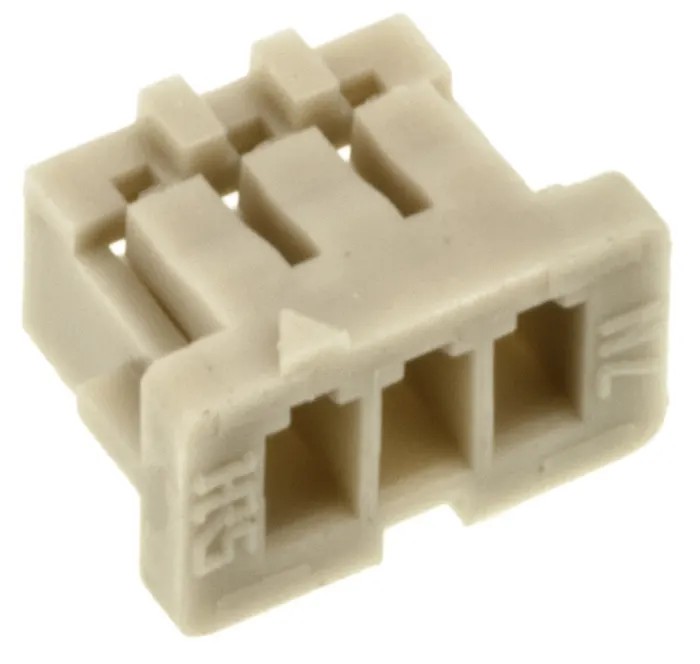

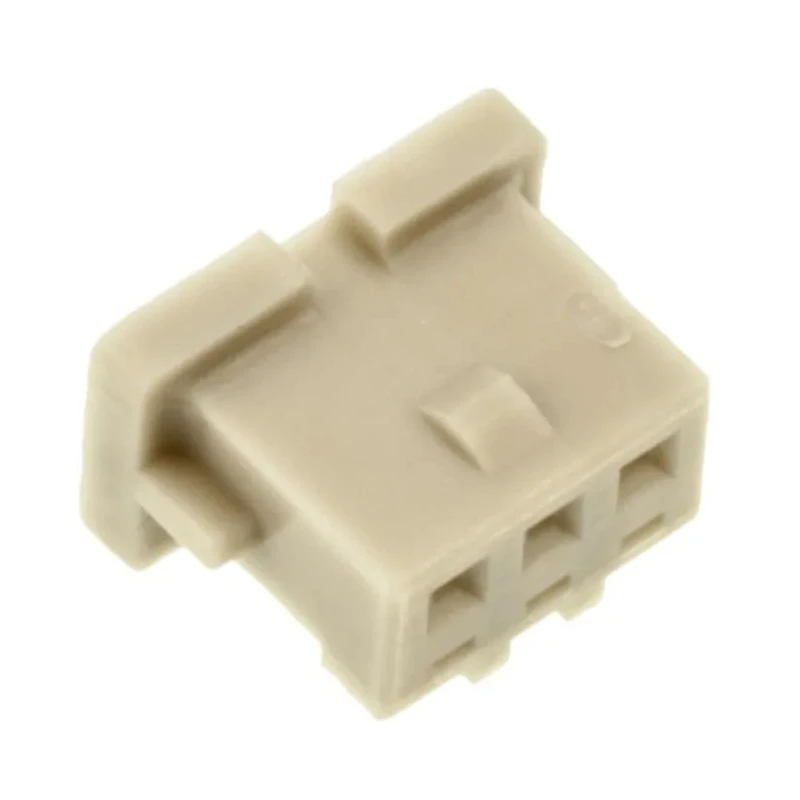

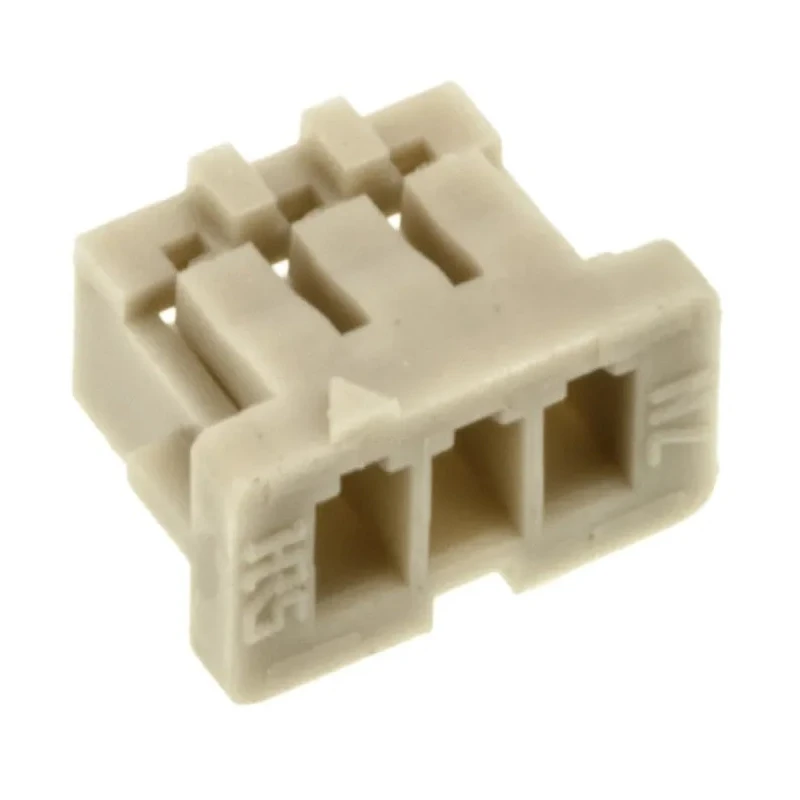

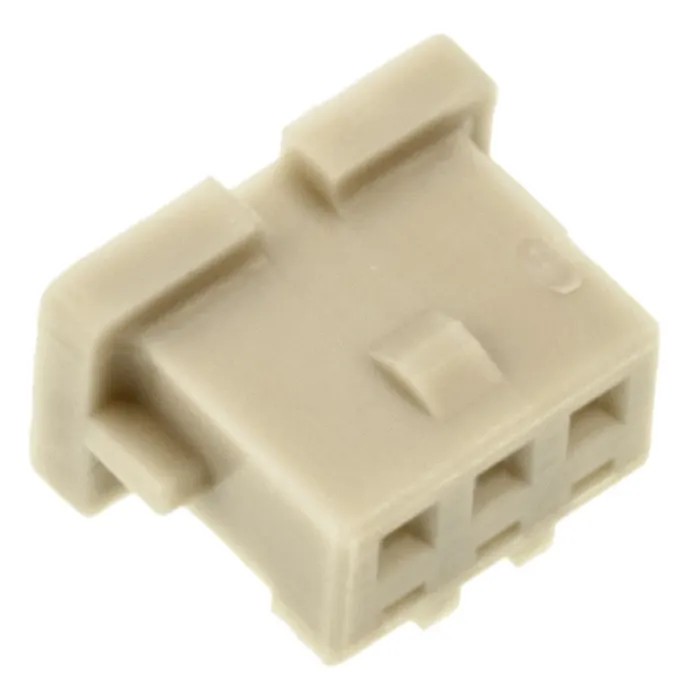

Hirose DF13 Male Connector Housing, 1.25 mm Pitch, 3 Contacts, 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 5.4mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | DF13 Series |
| Number of Contacts | 3 |
| Connector Gender | Male |
Key Features
- Miniature design ideal for space-saving in electronic devices.
- Constructed of durable polyamide housing material.
- Polarisation slots prevent incorrect mating.
- Friction locking mechanism ensures secure connections.
- Compatible with the DF13 series connectors.
- 3 contacts arranged in a single row for easy cable termination.
- Standard 1.25 mm pitch to support miniature electronic applications.
- Straight orientation facilitates cable mounting in tight spaces.
Product Description
Hirose DF13-3S-1.25C male connector housing is designed for lightweight and miniature electronic applications requiring secure cable connections. This connector housing features a 1.25 mm pitch and 3 contacts arranged in a single row with a straight orientation. The polyamide housing material provides durability and resistance to wear in demanding industrial, commercial, and electronics manufacturing environments.
Its miniature size makes it well-suited for use in digital cameras, LCD displays, access control units, car navigation systems, digital video recorders, and measurement devices that require high-density interconnects in constrained spaces.
The connector includes polarisation slots to prevent incorrect insertion and a friction locking mechanism that enhances mating reliability and mechanical stability. The DF13 series compatibility ensures easy integration with existing connector components to improve assembly efficiency.
With a length of 5.4 mm and width of 3.2 mm, this housing offers a compact footprint without compromising performance. Although it does not have specific industrial approvals, its robust design and material composition make it a dependable choice for numerous electronic applications.
Miniature design ideal for space-saving in electronic devices. Constructed of durable polyamide housing material. Polarisation slots prevent incorrect mating. Friction locking mechanism ensures secure connections. Compatible with the DF13 series connectors.
3 contacts arranged in a single row for easy cable termination. Standard 1.25 mm pitch to support miniature electronic applications. Straight orientation facilitates cable mounting in tight spaces. Length of 5.4 mm and width of 3.2 mm for compact installation.
Does not carry specific approvals or certifications.
This male connector housing is ideal for industrial, commercial electronics manufacturing, and PCB assembly applications requiring miniature wire-to-board solutions. It supports compact cable routing and contributes to reliable electronic device performance.
Explore more high-quality PCB Connector Housings and electronic components in this category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm, making it suitable for miniature electronic applications.
This model features 3 contacts arranged in a single row, facilitating easy cable termination.
The housing has a length of 5.4 mm and a width of 3.2 mm, providing a compact footprint for installation.
The connector housing features a straight orientation, which facilitates cable mounting in tight spaces.
It includes a friction locking mechanism that enhances mating reliability and mechanical stability during use.
This model is ideal for use in digital cameras, LCD displays, access control units, and other devices requiring high-density interconnects.
Yes, it features polarisation slots to prevent incorrect insertion of the connector, ensuring proper connections.
The mount type for this housing is cable, which is suitable for wire-to-board connections in electronic devices.
The country of origin for this connector housing is India.
This connector housing has 1 row, designed for compact installations in electronic applications.
