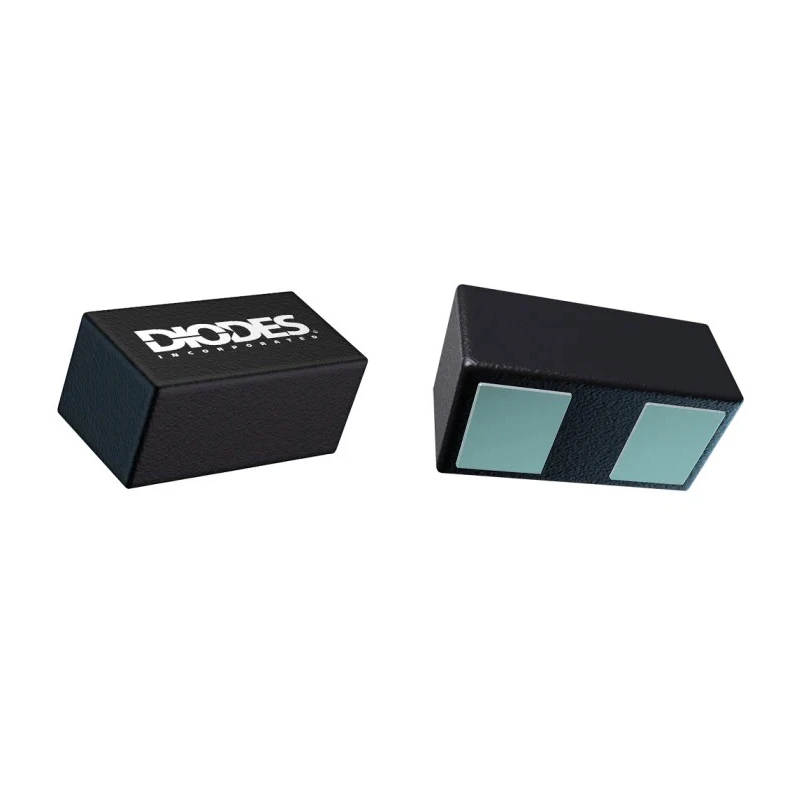

DiodesZetex 10 V 250 mW Zener Diode Surface Mount 2-Pin X3-DFN0603 GDZ10LP3-7

DiodesZetex GDZ10LP3-7 is a 10 V Zener diode designed for precise voltage regulation and circuit stabilization in modern electronic applications. This device features a low-profile, ultra-small 2-pin surface mount package, X3-DFN0603, measuring just 0.6 mm in length and 0.3 mm in height, making it ideal for compact PCB designs.

The GDZ10LP3-7 Zener diode supports a maximum power dissipation of 250 mW and a test current of 5 mA, ensuring stable and reliable voltage reference in circuits. It operates efficiently within a wide temperature range from -55°C to 150°C, enabling use in diverse industrial and automotive environments.

This diode offers a nominal zener voltage of 10 V with a tolerance of ±5%, providing accurate voltage stabilization and protection against over-voltage or electrostatic discharge in sensitive electronic components.

Key technical features include a maximum reverse leakage current of 200 nA which reduces circuit power drain, and compliance with the automotive standard AEC-Q101, demonstrating its suitability for automotive-grade applications and high-reliability environments.

Typical applications for the GDZ10LP3-7 include use as a reference voltage source in regulated power supplies, voltage shifters in low voltage circuits, and protection devices in electronic assemblies requiring compact, surface mount solutions.

This Zener diode is surface mount type with an ultra-small X3-DFN0603 package. It provides stable voltage regulation at 10 V nominal zener voltage with ±5% tolerance. Maximum power dissipation is 250 mW to handle modest load conditions.

Pin count is 2, suitable for minimal footprint circuit layouts. Operating temperature range of -55°C to 150°C ensures rugged performance. Maximum reverse leakage current limited to 200 nA for efficiency. Tested at 5 mA test current for reliable performance.

Meets automotive standard AEC-Q101 for use in automotive and industrial sectors.

This product supports industrial, automotive, electronics manufacturing, and laboratory applications requiring compact and reliable voltage regulation components. It is ideal for engineers designing power regulation circuits and protective electronic devices on high-density PCBs.

EnvMart provides access to this precision DiodesZetex Zener Diode GDZ10LP3-7 for enhanced voltage regulation solutions, supporting your design and manufacturing needs with assured quality.
