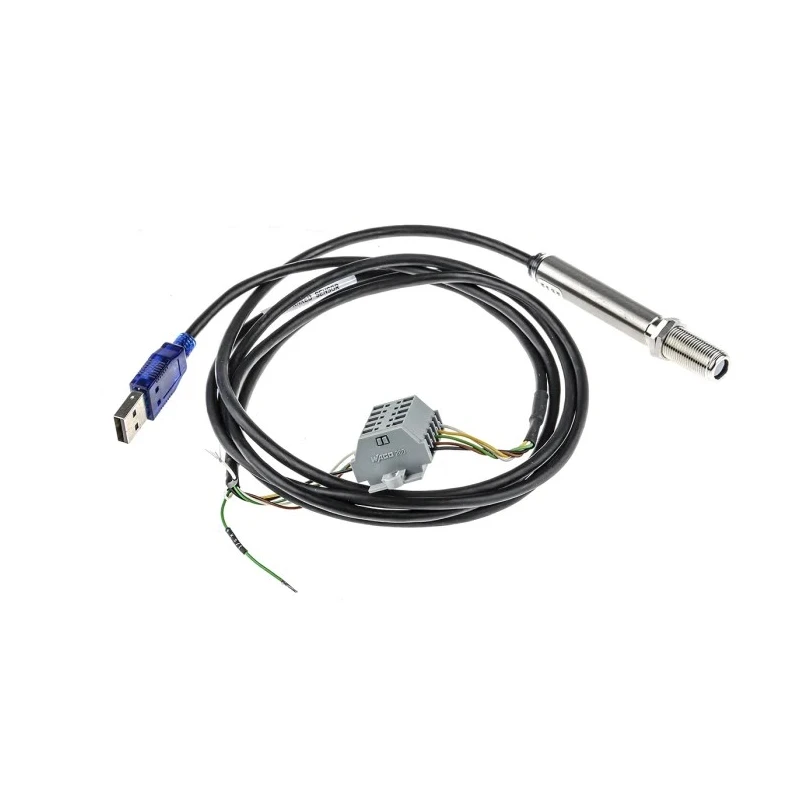

Optris Infrared Temperature Sensor CS Series V Output Signal 1 m Cable, -20 °C to 350 °C RSCCSLT15SFCB1K
Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | 1.5 % |
| Diameter | 12mm |
| Brand | Optris |
| Spectral range | 8 to 14 μm |
| Light Source | Infrared LED |
| Model | RSCCSLT15SFCB1K |
| Sensor Type | V Output Signal |
| Mount Type | Screw |
| Series | CS |
| Interfaces | USB adapter for online data output and programming |
| Maximum Ambient Temperature | 80°C |
| Standards/Approvals | EMC, EN, CE |
| Maximum Supply Voltage | 10V |
| Maximum Temperature Sensed | 350°C |
| Minimum Temperature Sensed | -20°C |
| Cable Length Sensing Head | 1m |
| Cable Length Output | 1m |
| Response Time 90% | 25ms |
| IP Rating Sensing Head | IP65 |
| Housing Material Sensing Head | Stainless Steel |
| Emissivity Setting | Adjustable |
| Analogue Output Type | Analogue |
| Digital Interface Type | USB |
| High-quality 15 | 1 silicon lens |
Key Features
- Offers a fast response time of 25 ms for quick temperature detection.
- Includes an adjustable emissivity setting to suit various surface types.
- Equipped with a stainless steel housing and screw mount for durable stationary installation.
- Features an IP65 rated sensing head suitable for harsh environments.
- Supports both analogue output and digital output via USB adapter for data and programming.
- Includes PC software for sensor configuration and recording measured values.
- Comes with a cable length of 1 meter, extendable by the user.
- Operates within a broad supply voltage range and withstands a maximum ambient temperature of 80 °C.
Product Description

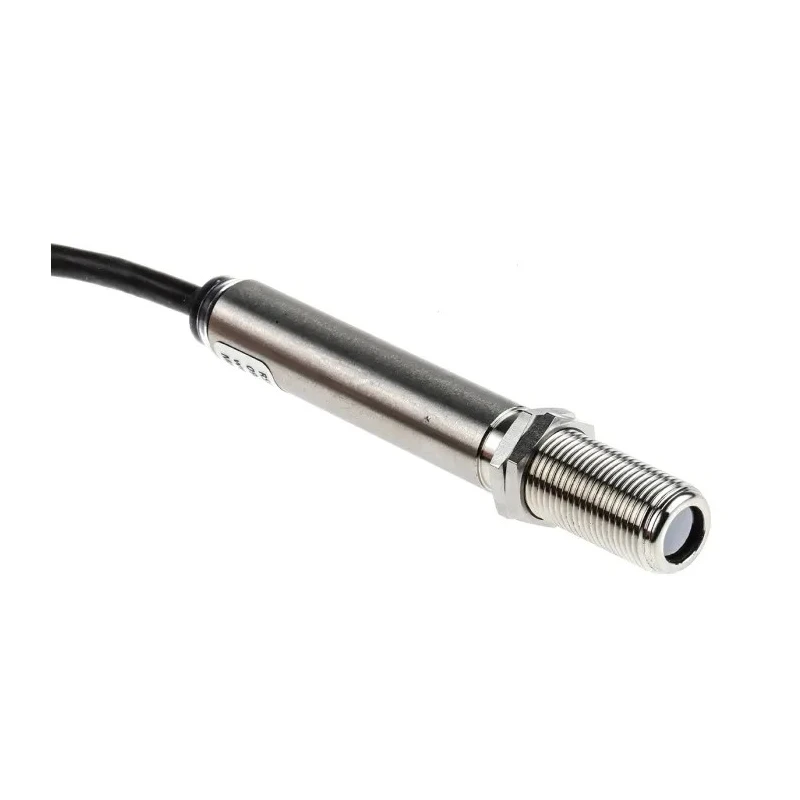

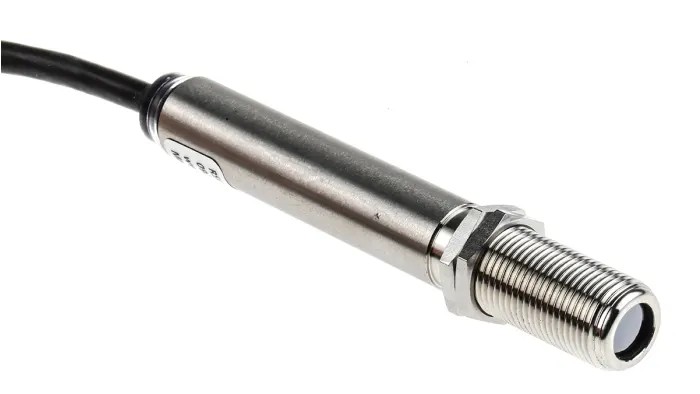

Optris RSCCSLT15SFCB1K CS Series infrared temperature sensor provides precise temperature measurement from -20 °C to 350 °C with a durable stainless steel 12 mm diameter sensing head. Designed for stationary installation, it features a V output signal and a high-quality 15:1 silicon lens that ensures accurate targeting and measurement.
This sensor delivers a fast 25 ms response time and an accuracy of 1.5% using an infrared LED light source. The emissivity setting is adjustable to enhance measurement accuracy across various materials. The sensing head is rated IP65 for dust and water protection, guaranteeing durability in industrial and laboratory environments.

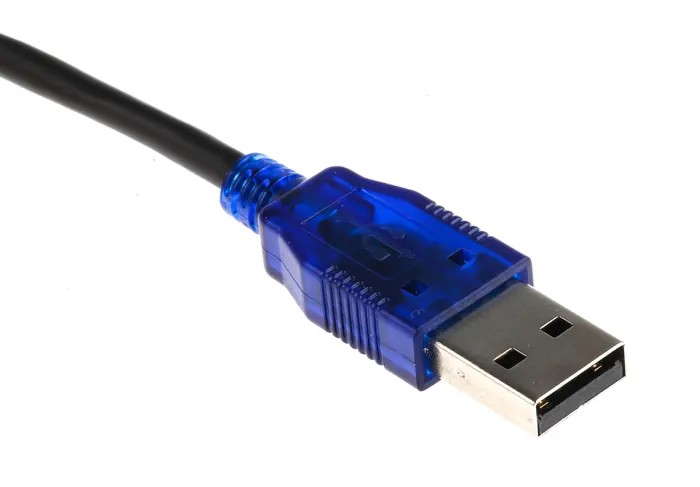

Connectivity options include an analogue output and digital interface via a USB adapter, allowing online data output and programming. The sensor includes PC software for easy configuration and real-time monitoring and recording of temperature data. The unit comes with 1 meter cable length for both sensing head and output, which can be extended as needed by the user.
Suitable for industrial automation, electrical engineering, laboratory instrumentation, HVAC monitoring, manufacturing quality control, and water treatment applications, this sensor is engineered for reliable, precise temperature monitoring.

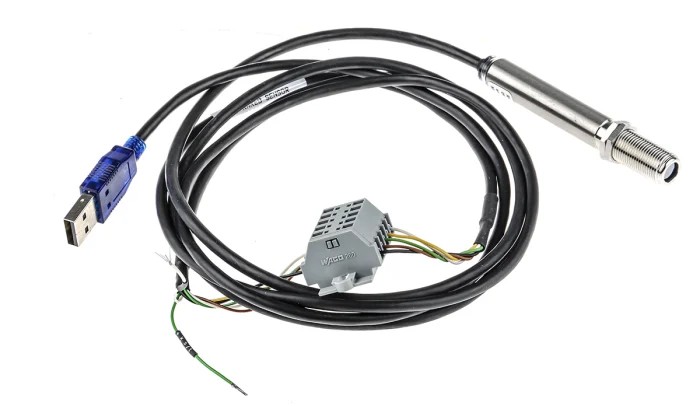

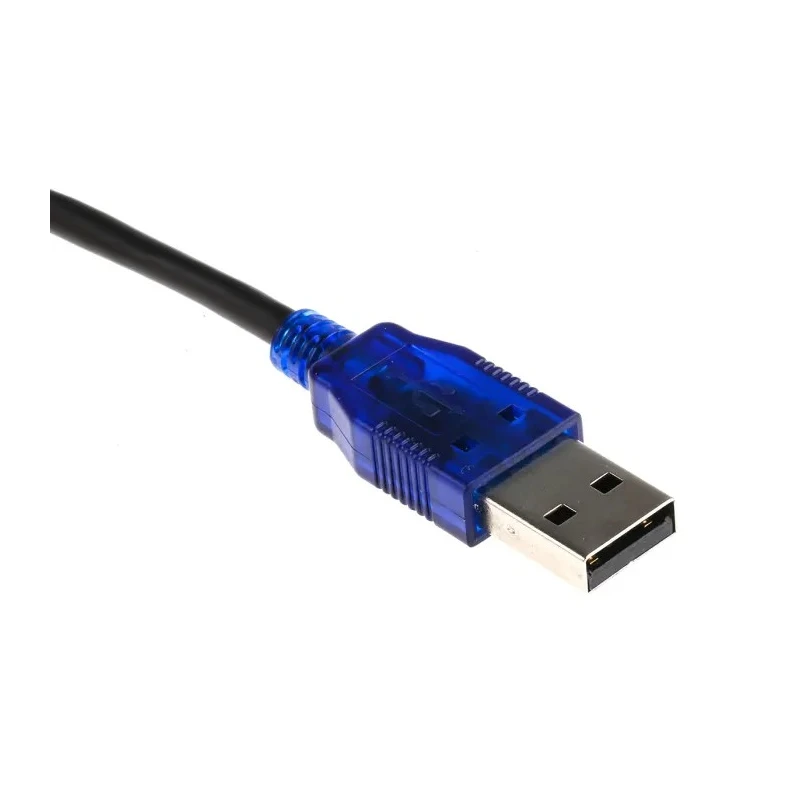

Package contents include the Optris CS sensor, USB adapter, PC software, and instruction manual for seamless deployment and integration. Provides infrared temperature measurement with a high-quality 15:1 silicon lens. Offers a fast response time of 25 ms for quick temperature detection.
Includes an adjustable emissivity setting to suit various surface types. Equipped with a stainless steel housing and screw mount for durable stationary installation. Features an IP65 rated sensing head suitable for harsh environments.
Supports both analogue output and digital output via USB adapter for data and programming. Includes PC software for sensor configuration and recording measured values. Comes with a cable length of 1 meter, extendable by the user.
Operates within a broad supply voltage range and withstands a maximum ambient temperature of 80 °C. Explore our comprehensive selection of Temperature Sensors and infrared sensors at EnvMart to find solutions tailored to your precision measurement requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures temperatures from -20 °C to 350 °C.
It has an accuracy of 1.5%.
It supports both analogue output and digital output via a USB adapter.
The sensor features a fast response time of 25 ms.
It can withstand a maximum ambient temperature of 80 °C.
The sensing head is rated IP65, providing protection against dust and water.
The sensing head is made of stainless steel.
The diameter of the sensing head is 12 mm.
The unit comes with a cable length of 1 meter, which can be extended by the user.
Yes, it includes an adjustable emissivity setting to suit various surface types.
It comes with PC software for sensor configuration and recording measured values.
It complies with EMC, EN, and CE standards.
