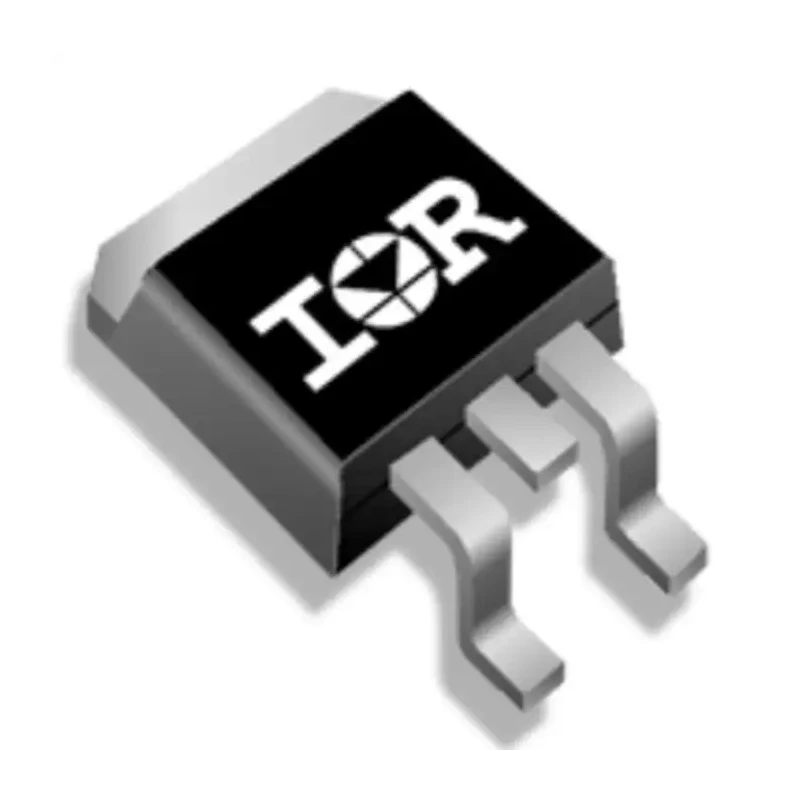

Infineon HEXFET Type N-Channel MOSFET, 340A, 40V, Enhancement, 3-Pin TO-263 AUIRFS3004TRL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 4.83mm |
| Length | 10.67mm |
| Model | AUIRFS3004TRL |
| Width | 9.65mm |
| Mount Type | Surface |
| Series | HEXFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 340A |
| Maximum Drain Source Voltage Vds | 40V |
| Maximum Drain Source Resistance Rds | 1.75mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 380W |
| Typical Gate Charge Qg @ Vgs | 160nC |
| Maximum Gate Source Voltage Vgs | 20V |
| Forward Voltage Vf | 1.3V |
Key Features
- HEXFET technology for ultra-low on-resistance and fast switching speeds.
- Maximum continuous drain current rated at 340A, suitable for demanding power applications.
- Enhancement mode N-channel configuration with 40V maximum drain-source voltage.
- Automotive qualified to AEC-Q101 standard for high reliability in automotive systems.
- 3-pin TO-263 surface mount package ensures compact footprint and efficient thermal management.
- Supports a maximum power dissipation of 380W, ideal for high-power switching.
- Wide temperature range from -55°C to 175°C for robust performance.
- Maximum drain-source resistance of only 1.75mΩ for minimal heat generation.
Product Description
Infineon AUIRFS3004TRL HEXFET Type N-Channel MOSFET is engineered for high-efficiency power management applications. This advanced MOSFET features a 340A maximum continuous drain current and 40V maximum drain-source voltage, making it suitable for use in automotive and industrial power electronic systems. With enhancement mode N-channel design, it provides rapid switching performance, ultra-low on-resistance, and robust reliability.
HEXFET process technology delivers exceptionally low on-resistance and enables fast transitions, optimizing efficiency for switching applications. 340A maximum drain current capacity supports demanding loads, including motor control, DC/DC converters, and battery management systems.
Automotive qualified to AEC-Q101 ensures performance under harsh environments, meeting reliability standards required in vehicles. The 3-pin TO-263 surface-mount package is compact, supporting high-density PCB designs, with dimensions of 10.67mm x 9.65mm x 4.83mm.
Maximum power dissipation rated at 380W allows operation in high-power circuits with proper heat sinking. Wide operating temperature span from -55°C to 175°C supports both cold-start and extreme heat situations. Maximum drain-source resistance of 1.75mΩ reduces power losses and improves overall thermal management.
Advanced gate charge characteristics ensure quick switching and low drive requirements.
This device is widely used in automotive, industrial, and commercial settings for applications such as power switching, inverter systems, and energy-efficient electronics. Its high reliability and efficiency make it a preferred solution for designers seeking robust MOSFET performance.
Industrial, automotive, manufacturing, and power management use cases are supported by the AUIRFS3004TRL MOSFET, including inverters, motor drivers, DC/DC converters, and other high-power switching circuits.
Explore more MOSFET devices from Infineon in the Electronics & Electricals > Semiconductor > MOSFET category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for this model is rated at 340A, making it suitable for demanding power applications.
The maximum drain-source voltage is 40V, allowing it to operate effectively in various power management applications.
This model comes in a 3-pin TO-263 surface mount package, which supports compact PCB designs and efficient thermal management.
The maximum power dissipation for the AUIRFS3004TRL is rated at 380W, suitable for high-power switching applications with proper heat sinking.
The AUIRFS3004TRL operates within a temperature range from -55°C to 175°C, ensuring robust performance in extreme conditions.
The maximum drain-source resistance is 1.75mΩ, which helps in reducing power losses and improving thermal management.
Yes, this model is automotive qualified to the AEC-Q101 standard, ensuring high reliability in automotive systems.
The AUIRFS3004TRL features an enhancement mode N-channel configuration, providing rapid switching performance and low on-resistance.
The dimensions of this model are 10.67mm in length, 9.65mm in width, and 4.83mm in height.
The typical gate charge for the AUIRFS3004TRL is 160nC at Vgs, which contributes to its quick switching characteristics.
This MOSFET is widely used in automotive, industrial, and commercial settings, including applications like motor control, DC/DC converters, and battery management systems.
The maximum gate-source voltage for the AUIRFS3004TRL is 20V, which is important for ensuring proper operation in various circuits.
