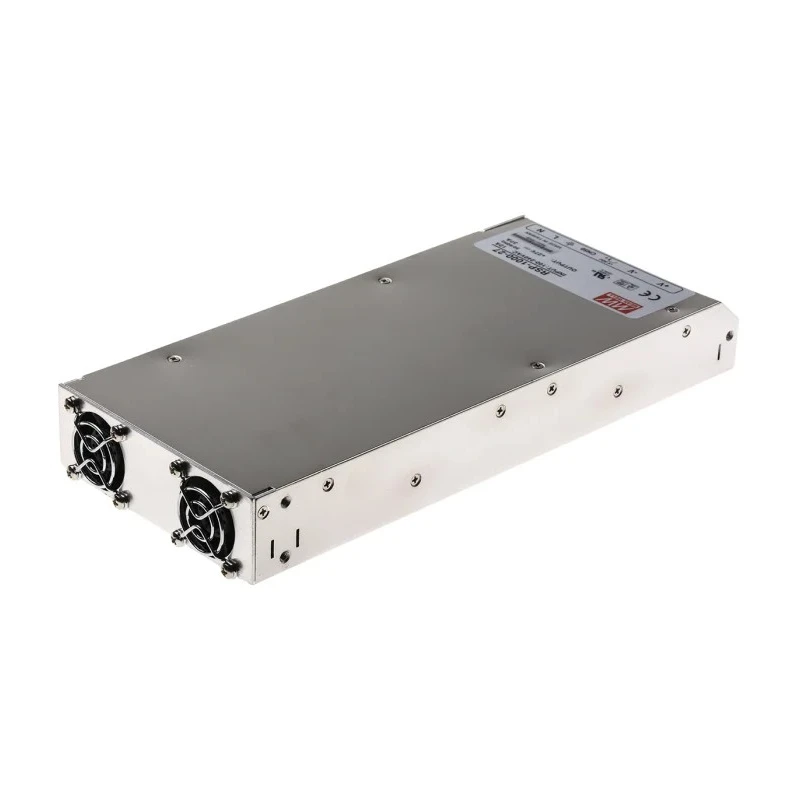

MEAN WELL RSP-1000-27 Switching Power Supply, 27V DC, 999W, 37A, Chassis Mount, Universal Input, Dual Fans
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 999W |
| Efficiency | 88% |
| Length | 295mm |
| Model | RSP-1000-27 |
| Depth | 41mm |
| Gross Weight | 2kg |
| INSTALLATION | Input screw terminals, Output 2xM4 bolts |
| Width | 127mm |
| Mount Type | Chassis |
| Series | RSP-1000 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 27V dc |
| SMPS Output Current | 37A |
| Minimum Input Voltage | 90V ac |
Key Features
- Single output design with 27V DC voltage and up to 37A current for versatile load support.
- High power density and 999W output ensures stable operation in industrial environments.
- Universal input capability ranging from 90V AC to 264V AC and 370V DC maximum input.
- Built-in dual fans enhance thermal management and overall reliability.
- Remote sense and remote ON-OFF controls for advanced integration and remote management.
- Supports current sharing up to 3000W (2+1 configuration) for parallel operation.
- LED indicator provides clear power-on status monitoring.
- Short circuit, overload, over-voltage, and over-temperature protection for enhanced safety.
Product Description
The MEAN WELL RSP-1000-27 Switching Power Supply is engineered for demanding commercial, industrial, and laboratory applications requiring stable and efficient DC power delivery. Featuring a single output of 27V DC and a maximum output current of 37A, this 999W supply is ideal for powering high-load devices and critical systems.
This device is equipped with universal input capability, supporting input ranges from 90V AC to 264V AC or up to 370V DC, allowing for flexible integration into diverse electrical infrastructures. The high conversion efficiency of up to 88% minimizes energy loss, providing long-term operational cost savings and prolonged equipment life.
Safety and reliability are central to the RSP-1000-27's design. It incorporates dual cooling fans for excellent heat dissipation, and comprehensive protection features such as short circuit, overload, over-voltage, and over-temperature protection, safeguarding connected loads from electrical faults.
Control interfaces include remote sense and ON-OFF management, as well as a DC OK signal for system monitoring. The supply supports current sharing up to 3000W through a 2+1 parallel configuration, allowing scalable deployment in multi-supply systems. Installation is straightforward, utilizing supplied input screw terminals and output 2xM4 bolts, with adjustable output voltage (±10%) for application-specific tuning.
Compliance with international standards - AS/NZS62368.1, UL 62368-1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCCGB4943.1, BSMI CNS143361 - ensures suitability for global industrial requirements. EMC meets EN 55022 Class B, and power factor correction adheres to EN 61000-3-2.
Typical applications include industrial automation, laboratory power supply systems, manufacturing equipment, LED lighting systems, telecommunications, commercial electronics, and process control environments where reliable high-power DC output is essential.
RSP-1000-27 combines easy installation, robust chassis mount form factor (295 x 127 x 41 mm), and a low-profile 1U design for space-critical installations. Power-on status is indicated via LED, and auxiliary 5V/0.5A output enables additional low-voltage device supply.
Browse top-performing MEAN WELL switching power supplies and industrial power solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 999W.
It supports a universal input voltage range from 90V AC to 264V AC and up to 370V DC.
The maximum output current is 37A.
The dimensions are 295mm in length, 127mm in width, and 41mm in depth.
This model has an efficiency rating of up to 88%.
It features a chassis mount design.
It includes short circuit, overload, over-voltage, and over-temperature protection.
The operating temperature range is from -20°C to 60°C.
Yes, it includes remote sense and remote ON-OFF controls for advanced integration and management.
It is suitable for industrial automation, laboratory power supply systems, manufacturing equipment, and telecommunications, among others.
It utilizes input screw terminals and output connections with 2xM4 bolts.
It complies with international standards including AS/NZS62368.1, UL 62368-1, and TUV BS EN/EN 62368-1, among others.
