OEP Surface Pulse Transformer 1:1:1 Turns Ratio, 3 mH Primary Inductance, 0.65Ω Primary Resistance PT6SM

OEP PT6SM Surface Pulse Transformer is engineered for high-frequency pulse applications requiring electrical isolation between firing circuits and loaded elements, particularly in thyristor and triac control environments.

This open and encapsulated PCB mount transformer features a precise 1:1:1 turns ratio delivering consistent pulse management with a primary inductance of 3 mH and a primary DC resistance of 0.65 ohms, ensuring efficiency and reliability in signal transmission.

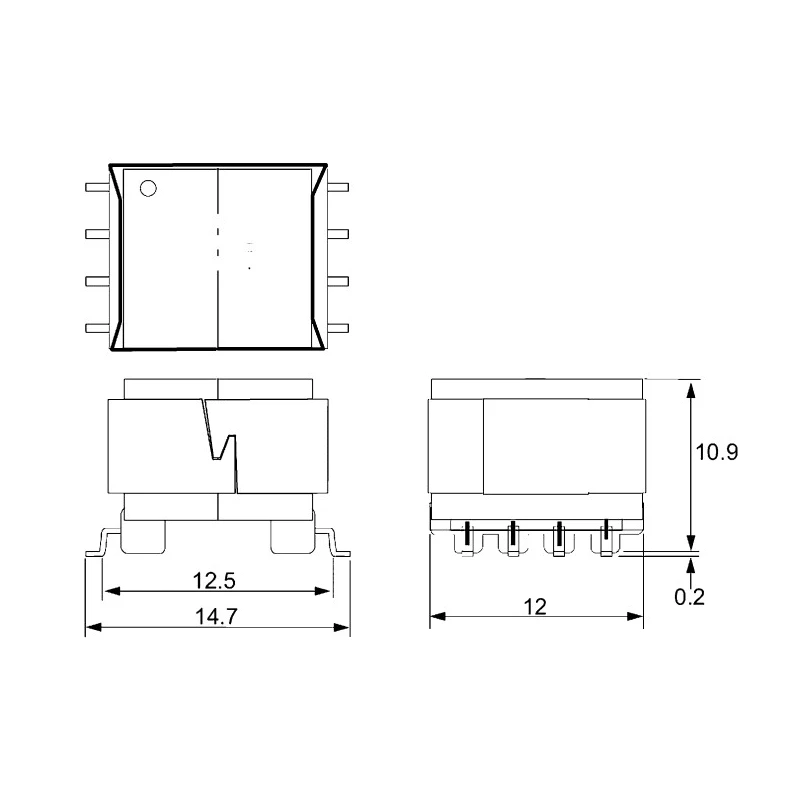

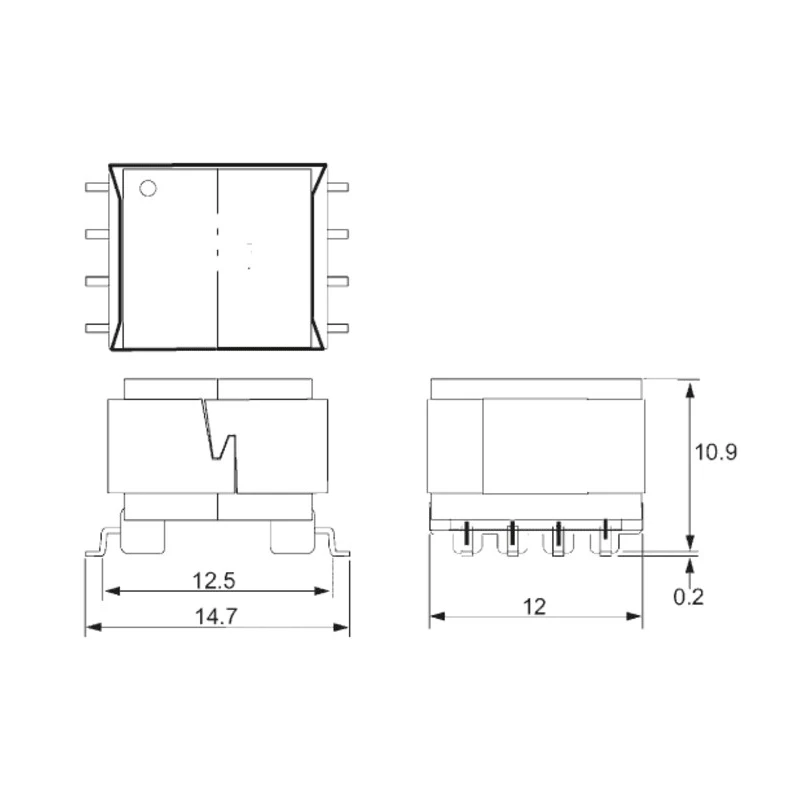

The device exhibits low secondary DC resistance of 0.55 ohms and leakage inductance of only 1.8 microhenries, optimizing performance by minimizing energy loss and distortion. Measuring 13.1 mm in length, 17 mm in width, and 11.95 mm in depth, the compact footprint suits densely populated electronic assemblies without compromising functionality.

Constructed to meet UL 94 V-0 flammability requirements, it ensures safety and quality compliance in demanding industrial and commercial electronics applications.

This pulse transformer is ideal for industrial automation, power supplies, and control systems involving pulse generation and isolation in laboratory, manufacturing, and electrical engineering sectors.

Designed for surface mount PCB integration with wide bandwidth pulse capabilities. Precision 1:1:1 turns ratio for balanced signal transfer and isolation. Low primary and secondary DC resistance reduces power loss and heating.

Minimal leakage inductance enhances pulse fidelity and timing accuracy. Complies with UL 94 V-0 to assure fire resistance and safety standards. Compact form factor supports space-constrained design environments. Widely used in thyristor and triac firing circuits and power control electronics.

Explore OEP Pulse Transformers for reliable solution in advanced electronics on EnvMart.
