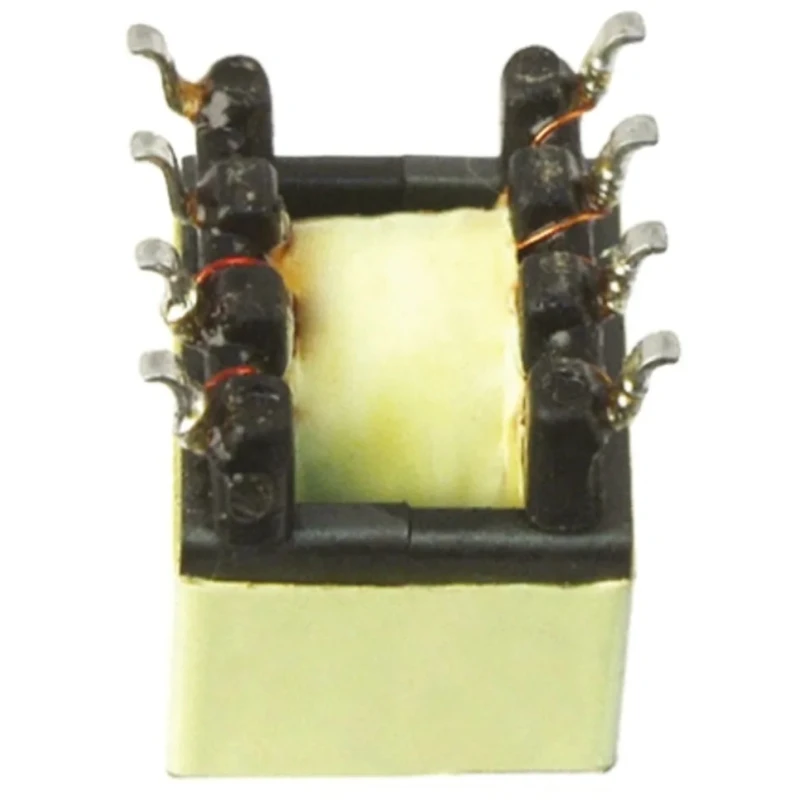

Wurth Elektronik Surface Pulse Transformer 5:1 Turns Ratio, 80μH Primary Inductance, 0.325Ω Primary Resistance 750311692
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 9.14mm |
| Depth | 10.54mm |
| Width | 9.78mm |
| Mount Type | Surface |
| Series | WE‑FB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
| Isolation Voltage | 2.5kV |
| Primary Inductance | 80μH |
| Turns Ratio | 5:1 |
| Primary DC Resistance | 0.325Ω |
| Secondary DC Resistance | 8.7Ω |
| Leakage Inductance | 2μH |
| Turns Ratio5 | 1 |
| Wurth Elektronik Surface Pulse Transformer 5 | 1 Turns Ratio, 80 μH Prim. Inductance, 0.325Ω Prim. Resistance |
Key Features
- Optimized for DC-DC converters and PWM switching regulators.
- Compact surface mount design with 8 pins for efficient PCB integration.
- Leakage inductance of 2μH supports high electrical performance.
- Wide operating temperature range from -40°C to 125°C for versatile usage.
- Isolation voltage rated at 2.5kV offering reliable electrical separation.
- Compliant with RoHS standards ensuring environmental safety.
- Part of the WE-FB series specialized for flyback transformer applications.
Product Description
Wurth Elektronik 750311692 Surface Pulse Transformer features a 5:1 turns ratio, primary inductance of 80μH, and primary resistance of 0.325Ω, engineered for efficient power conversion in electronic circuits.
This surface mount device with 8 pins is ideal for DC-DC converter circuits and offline PWM switching regulators, providing compactness without compromising power handling, thanks to its smaller size compared to traditional mains transformers.
The transformer exhibits a leakage inductance of 2μH and supports an isolation voltage of 2.5kV, ensuring electrical safety and high performance in demanding applications.
Designed for industrial, electronics manufacturing, and power supply systems, it operates reliably over a temperature range from -40°C to 125°C, ensuring stable functionality in various environments.
Physical dimensions are precisely 9.14mm in length, 9.78mm in width, and 10.54mm in depth, suitable for dense PCB layouts. Compliance with RoHS standards affirms the product’s environmental responsibility. The transformer is part of Wurth's WE-FB series, known for quality flyback transformers.
Optimized for flyback and switching power supply applications. Surface mount with 8-pin configuration for compact PCB integration. Meets stringent environmental and safety standards. Enables efficient power management in industrial, laboratory, and commercial devices.
High isolation voltage supports secure operation in electrical systems. Explore Wurth Elektronik products and related power supply components at EnvMart for comprehensive industry-grade selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this model is 80μH.
It features a turns ratio of 5:1.
The isolation voltage is rated at 2.5kV, ensuring reliable electrical separation.
The dimensions are 9.14mm in length, 9.78mm in width, and 10.54mm in depth.
The primary DC resistance is 0.325Ω.
The maximum operating temperature is 125°C.
The minimum operating temperature is -40°C.
This model has 8 pins for surface mount integration.
The leakage inductance is 2μH, which supports high electrical performance.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
It is optimized for DC-DC converters and PWM switching regulators, particularly in flyback applications.
This transformer is part of the WE-FB series, which is specialized for flyback transformer applications.
