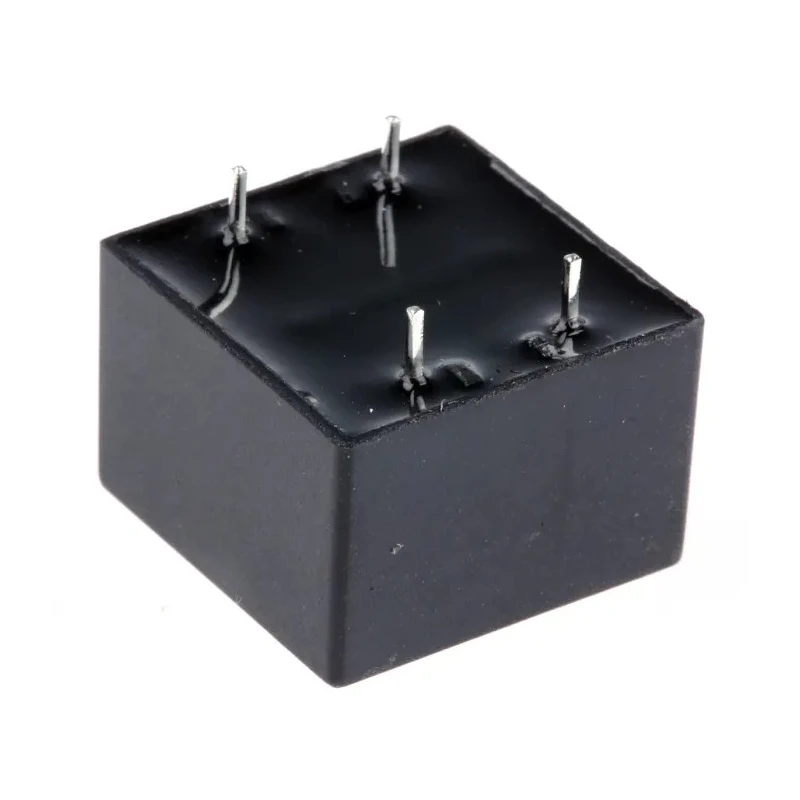

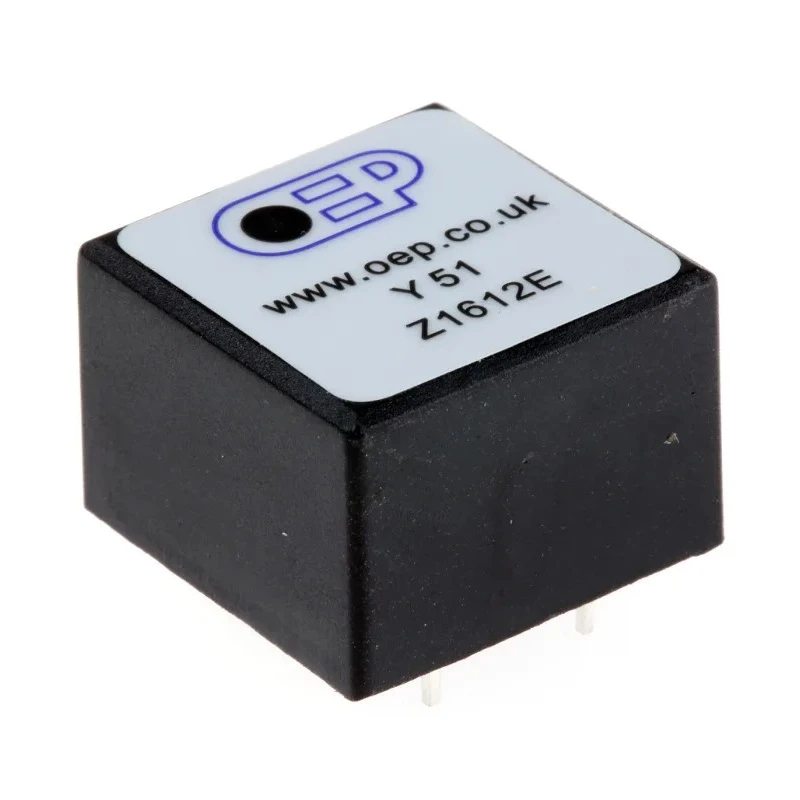

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 68Ω Primary Resistance Z1612E
Specifications
| Country of Origin | China |
|---|---|
| Brand | OEP |
| Length | 18mm |
| Model | Z1612E |
| Depth | 18mm |
| Width | 12.5mm |
| Mount Type | Through Hole |
| Standards/Approvals | EN60950EN41003BABT Certificate of Recognition CR/0126BS6305UL94-V0 |
| Number of Pins | 4 |
| Insertion Loss | 1.5dB |
| Turns Ratio | 1:1 |
| Primary DC Resistance | 68Ω |
| Turns Ratio 1 | 1 |
| Leakage Inductance | 4mH |
| OEP Through Hole Pulse Transformer 1 | 1 Turns Ratio, 4.15 h Prim. Inductance, 65Ω Prim. ResistanceBrand: OEP |
Key Features
- Designed for use in telecommunications circuits meeting BS6305 standards.
- Constructed with resin encapsulated glass-filled nylon housing for durability and flame retardance.
- Features 4 pins and a through-hole mount type for secure PCB installation.
- Leakage inductance of 4mH ensures efficient signal integrity.
- Certified to safety standards including EN60950, EN41003, and UL94-V0.
- Primary DC resistance is precisely 68Ω for accurate performance.
- Insertion loss of 1.5dB minimizes signal degradation.
- Ideal for industrial, telecommunications, and power supply applications.
Product Description
OEP Z1612E Through Hole Pulse Transformer is a reliable line isolating transformer designed for industrial and telecommunications environments. It features a 1:1 turns ratio and a primary DC resistance of 68Ω, ensuring consistent electrical performance in data transmission circuits.
The transformer adopts a through-hole mounting style with four pins, facilitating easy integration into printed circuit boards. It has a compact form factor with dimensions of 18mm length, 18mm depth, and 12.5mm width, making it suitable for use in space-constrained applications.
Constructed from resin encapsulated in a glass-filled nylon housing, the unit offers excellent flame retardant properties conforming to UL94-V0 standards. This rugged design ensures durability and reliability throughout its operational life.
The Pulse Transformer complies with multiple safety and performance standards, including EN60950, EN41003, BS6305, and holds the BABT Certificate of Recognition CR/0126. It delivers a low insertion loss of 1.5dB and leakage inductance of 4mH, contributing to high signal fidelity in power and telecommunications circuits.
Designed for use in telecommunications and industrial data transmission applications. Meets BS6305 Class A requirements for speech and non-speech signals. Encapsulated glass-filled nylon housing for flame retardance and durability.
Compact through-hole design with 4 pins for PCB mounting. Primary resistance of 68Ω with low insertion loss of 1.5dB. Certifications include EN60950, EN41003, BS6305, and BABT recognition. Leakage inductance of 4mH ensures efficient signal transmission.
Suitable for industrial, laboratory, telecommunications, and power supply use cases. Explore more reliable transformers and electronic components in our comprehensive Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary DC resistance of this pulse transformer is 68Ω, ensuring accurate performance in electrical applications.
This model has dimensions of 18mm in length, 18mm in depth, and 12.5mm in width, making it suitable for space-constrained applications.
The turns ratio of this transformer is 1:1, which is designed for line isolation in telecommunications circuits.
The insertion loss is 1.5dB, which minimizes signal degradation during transmission.
It utilizes a through-hole mounting style with four pins for secure installation on printed circuit boards.
This transformer complies with multiple safety standards, including EN60950, EN41003, BS6305, and holds the BABT Certificate of Recognition CR/0126.
The leakage inductance is 4mH, which contributes to efficient signal integrity in telecommunications circuits.
It is designed for use in telecommunications, industrial data transmission, and power supply applications.
The transformer features a resin encapsulated glass-filled nylon housing, providing flame retardant properties.
This model has four pins, facilitating easy integration into electronic circuits.
The BS6305 standard ensures that the transformer meets specific requirements for speech and non-speech signals in telecommunications.
The country of origin for this transformer is China.
