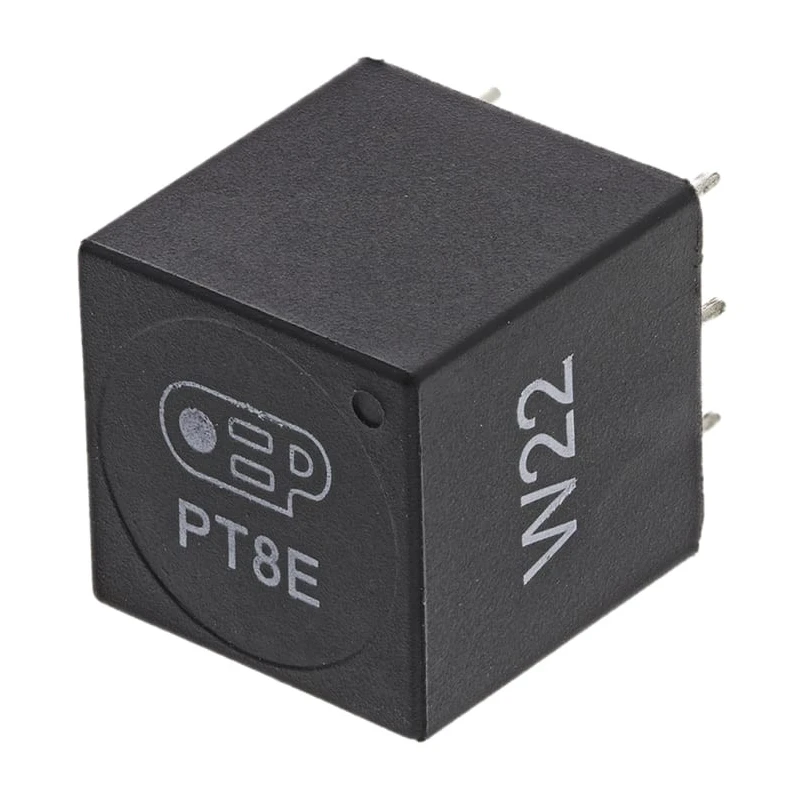

OEP Through Hole Pulse Transformer 2:1+1 Turns Ratio, 12 mH Primary Inductance, 4Ω Primary Resistance PT8E

The OEP PT8E Through Hole Pulse Transformer is engineered for wide-band and general pulse applications in electronic circuits, particularly suited to thyristor and triac control systems where isolation between firing circuits and loads is essential. It features a 2:1+1 turns ratio with a primary inductance of 12 mH and primary resistance of 4Ω, offering efficient pulse transmission and control.

This transformer utilizes a through-hole mounting type, providing robust mechanical stability to PCB assemblies. With a maximum operating frequency of 1 MHz and a minimum frequency of 3 kHz, it is versatile for various pulse frequency requirements. Its low leakage inductance of 30μH ensures minimal interference and signal loss, enhancing overall circuit performance.

The compact form factor measures 15mm in length and width, and 16mm in depth, making it suitable for tight space constraints in electronic assemblies. Electrical characteristics include a secondary DC resistance of 4.2Ω and the transformer is designed without additional approvals or certifications.

This product is manufactured in China and is provided in new condition, suitable for industrial, laboratory, electronics manufacturing, HVAC controls, and other electronic system applications requiring precise Pulse Transformer functionality.

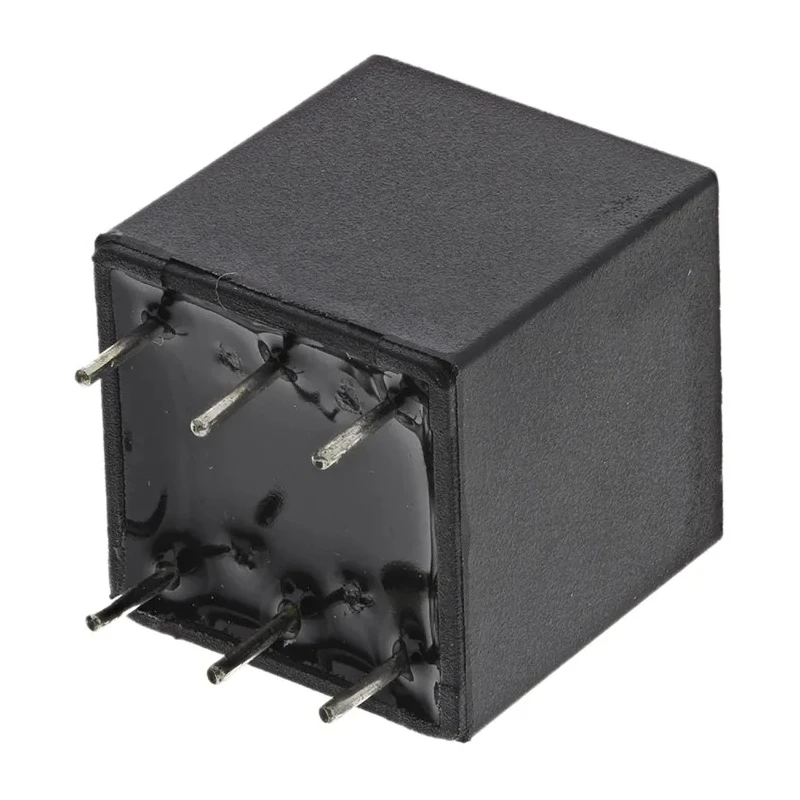

Through-hole PCB mount construction for secure integration. Optimized for pulse isolation and control in power electronics. Compact size suitable for dense circuit integration. Wide frequency range supports varied application demands.

Low leakage inductance minimizes signal distortion. Durable design tailored for industrial use cases. Manufactured to meet reliable quality standards. Explore the extensive range of transformers and electronic components at EnvMart to find complementary products and solutions.
