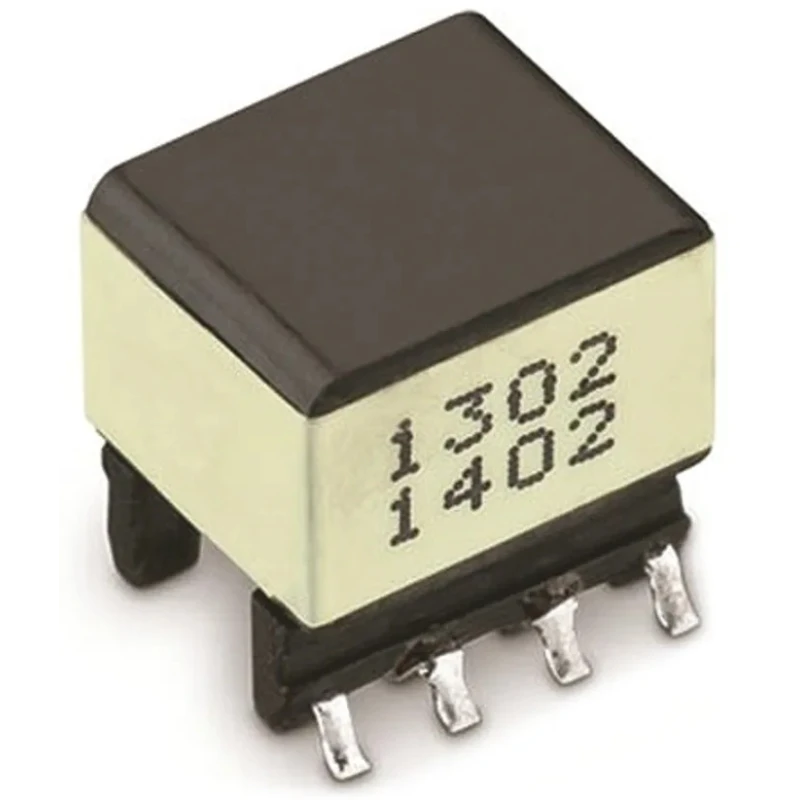

Wurth Elektronik Surface Pulse Transformer 2:1:1 Turns Ratio, 750μH Primary Inductance, 1.1Ω Primary Resistance 760301303
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 10.5mm |
| Depth | 11mm |
| Width | 10.5mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Pins | 8 |
| Isolation Voltage | 2.5kV ac |
| Maximum Operating Frequency | 100kHz |
| Primary Inductance | 750μH |
| Turns Ratio | 2:1:1 |
| Primary DC Resistance | 1.1Ω |
| Secondary DC Resistance | 700mΩ |
| Leakage Inductance | 4μH |
| Turns Ratio2 | 1:1 |
| Wurth Elektronik Surface Pulse Transformer 2 | 1:1 Turns Ratio, 750 μH Prim. Inductance, 1.1Ω Prim. Resistance |
Key Features
- Compact EP5 surface mount package suitable for various energy-efficient applications.
- High primary inductance of 750 μH ensuring effective energy transfer.
- Low primary DC resistance of 1.1Ω and secondary DC resistance of 700mΩ for minimal losses.
- Supports high-frequency operation up to 100 kHz, ideal for SMPS and synchronous flyback converters.
- Leakage inductance is minimized at 4 μH for improved performance.
- Operating temperature range from -40°C to 125°C allows use in harsh environments.
- Isolation voltage rated at 2.5 kV AC assures safety and compliance.
- Surface mount with 8 pins and solder termination for easy PCB integration.
Product Description
Wurth Elektronik 760301303 Surface Pulse Transformer is a high-performance gate drive transformer designed specifically for energy-efficient switch mode power supply (SMPS) applications. Its compact EP5 package and robust electrical characteristics make it well-suited for use in power electronics, signal, and synchronous flyback converter systems.
This transformer features a 2:1:1 turns ratio, providing optimal energy transfer with a primary inductance of 750 μH and low DC resistances (1.1Ω primary and 700mΩ secondary), resulting in reduced conduction losses. The leakage inductance is maintained at a low 4 μH to enhance efficiency and signal integrity.
Operational capabilities include resistance to high frequencies up to 100 kHz and an operating temperature range from -40°C to 125°C, enabling reliable performance in demanding industrial and commercial settings. The device has an isolation voltage rating of 2.5 kV AC ensuring electrical safety.
Compact EP5 surface mount design facilitates easy PCB assembly. Designed to meet the requirements of gate drive and synchronized flyback converter circuits. Suitable for use in industrial, commercial, and HVAC power supply systems.
Robust temperature rating supports a variety of environmental conditions. High isolation voltage for secure and stable circuitry. Low DC resistance for improved efficiency and reduced heat. Eight-pin configuration with solder termination for simplified mounting.
Wurth Elektronik’s expertise in transformer design assures reliable operation and longevity. This pulse transformer is ideal for designers seeking efficiency, compactness, and performance in power supply and gate drive applications.
Explore further high-quality Pulse Transformers and power components in the Electronics & Electricals category at EnvMart for industrial, laboratory, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this pulse transformer is 750 μH.
It features a 2:1:1 turns ratio, which provides optimal energy transfer.
The maximum operating frequency is 100 kHz, making it suitable for high-frequency applications.
This model measures 10.5 mm in length, 11 mm in depth, and 10.5 mm in width.
It has an isolation voltage rating of 2.5 kV AC, ensuring electrical safety.
The primary DC resistance is 1.1Ω, which helps reduce conduction losses.
This transformer has 8 pins, designed for surface mount with solder termination.
The secondary DC resistance is 700 mΩ, contributing to its efficiency.
The leakage inductance is minimized at 4 μH, which improves performance.
It features a solder termination type, facilitating easy PCB integration.
