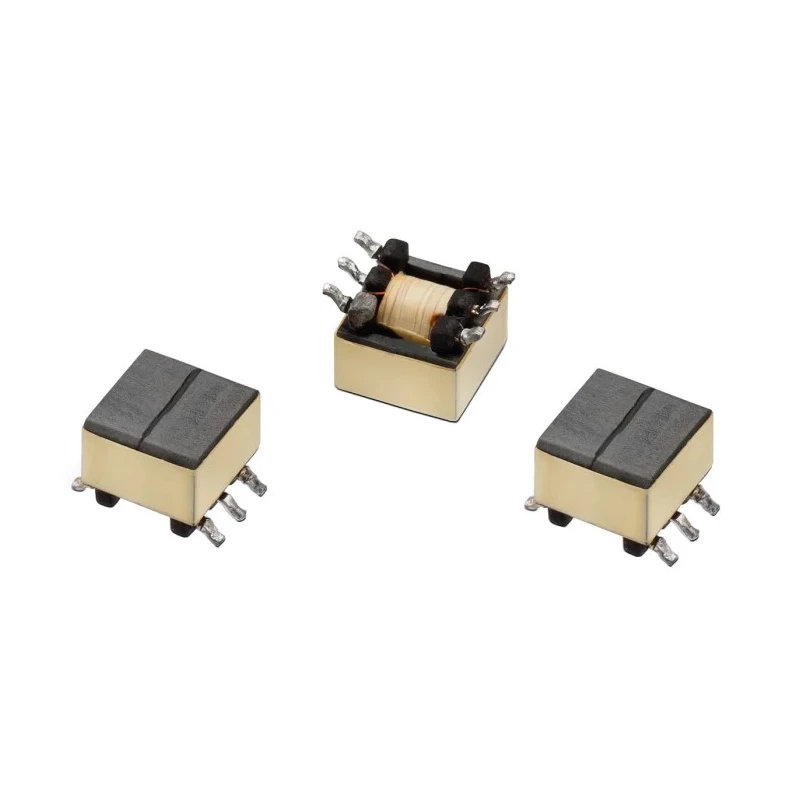

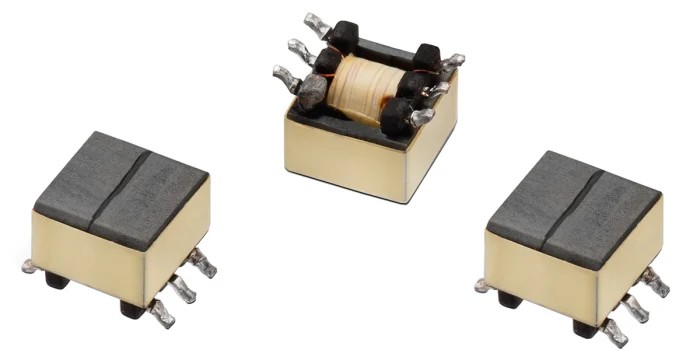

Wurth Elektronik Surface Pulse Transformer 2.5:1 Turns Ratio, 460μH Primary Inductance, 730mΩ Primary Resistance 760301108
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 7mm |
| Depth | 6mm |
| Width | 7mm |
| Mount Type | Surface |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Isolation Voltage | 1500V |
| Minimum Operating Frequency | 10kHz |
| Maximum Operating Frequency | 100kHz |
| Primary Inductance | 460μH |
| Turns Ratio | 2.5:1 |
| Primary DC Resistance | 730mΩ |
| Secondary DC Resistance | 150mΩ |
| 2.5 | 1 |
| Leakage Inductance | 2.3μH |
| Turns Ratio2.5 | 1 |
| Wurth Elektronik Surface Pulse Transformer 2.5 | 1 Turns Ratio, 460 μH Prim. Inductance, 730mΩ Prim. Resistance |
Key Features
- Provides excellent performance in a compact EP5 package.
- Features a primary inductance of 460 microhenries for efficient energy transfer.
- Primary DC resistance is 730 milliohms, ensuring low power loss.
- Surface mount design suitable for automated PCB assembly.
- Capable of operating at a maximum frequency of 100 kHz for versatile use.
- Isolation voltage rated at 1500 VDC for safety in electrical circuits.
- Operating temperature range from -40°C to 125°C supports harsh environments.
- Designed specifically for gate drive, synchronous flyback, and high-efficiency SMPS applications.
Product Description
Wurth Elektronik model 760301108 is a surface pulse transformer optimized for efficient and reliable performance in electronic circuits requiring signal and power isolation. Its 2.5:1 turns ratio and 460μH primary inductance make it suitable for gate drive applications, synchronous flyback converters, and high-efficiency switch mode power supplies (SMPS).
Constructed in a compact EP5 package with dimensions of 7 mm by 7 mm by 6 mm, it facilitates space-saving design on PCBs with surface mount technology.
The transformer features a primary DC resistance of 730 milliohms and a secondary DC resistance of 150 milliohms, contributing to minimized power losses and higher circuit efficiency. Leakage inductance is specified at 2.3μH, ensuring good signal integrity.
It supports a frequency range from 10 kHz minimum up to 100 kHz maximum, making it versatile for a variety of power and signal applications. The device withstands an isolation voltage of 1500 VDC, enhancing operator safety and circuit protection.
With a temperature operating range from -40°C to 125°C, this pulse transformer is designed for demanding industrial and commercial environments. IPC/JEDEC J-STD-020D standards compliance ensures manufacturing quality and reliability.
Provides excellent performance in a compact EP5 package. Features a primary inductance of 460μH for efficient energy transfer. Primary DC resistance of 730mΩ reduces power loss. Surface mount design facilitates modern PCB assembly.
Operating frequency up to 100kHz for diverse applications. 1500 VDC isolation voltage for electrical safety. Wide operating temperature range from -40°C to +125°C. Designed for gate drive, synchronous flyback, and high-efficiency SMPS.
Compliant with IPC/JEDEC J-STD-020D standards.
This pulse transformer is widely used in industrial electronics, power supplies, manufacturing, control systems, and HVAC devices where compact, high-efficiency isolation is required. It supports high-frequency switching environments and reliable performance in rugged conditions.
Explore more Pulse Transformers and related products in the Electronics & Electricals category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this model is 460 microhenries (μH), which facilitates efficient energy transfer.
It features a turns ratio of 2.5:1, making it suitable for various applications requiring signal and power isolation.
The dimensions of this model are 7 mm in length, 7 mm in width, and 6 mm in depth, making it compact for PCB designs.
It has an isolation voltage rating of 1500 VDC, ensuring safety in electrical circuits.
The primary DC resistance is 730 milliohms (mΩ), which helps minimize power loss during operation.
This model uses a surface mount design, which is compatible with automated PCB assembly processes.
It complies with IPC/JEDEC J-STD-020D standards, ensuring manufacturing quality and reliability.
The secondary DC resistance is 150 milliohms (mΩ), contributing to overall circuit efficiency.
It is designed specifically for gate drive, synchronous flyback, and high-efficiency switch mode power supply (SMPS) applications.
The leakage inductance is specified at 2.3 microhenries (μH), which helps maintain good signal integrity.
