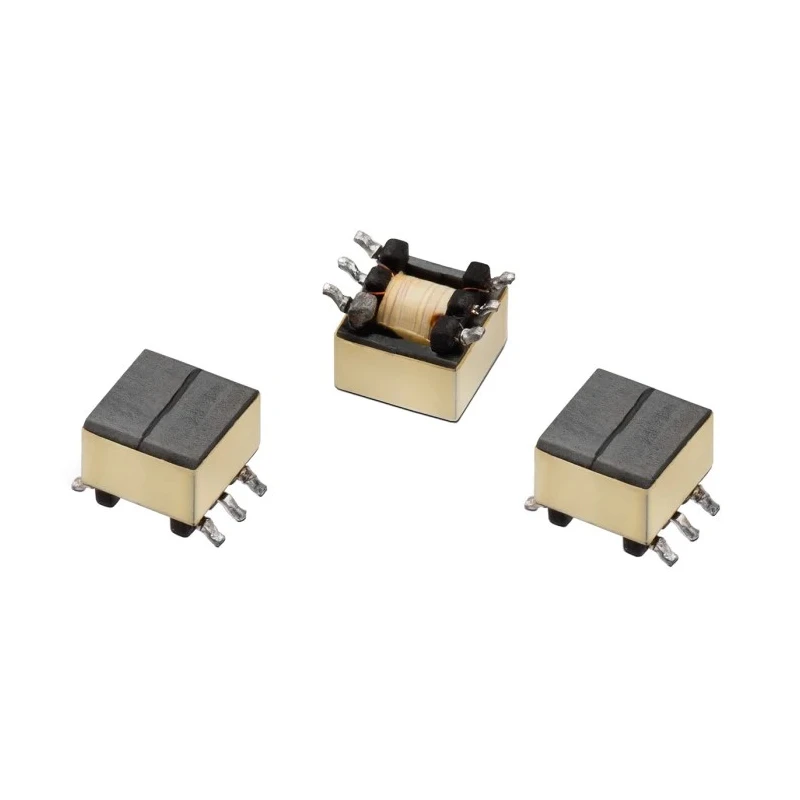

Wurth Elektronik Surface Mount Pulse Transformer 1:1 Turns Ratio, 370μH Primary Inductance, 520mΩ Primary 760301106
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Length | 7mm |
| Depth | 6mm |
| Width | 7mm |
| Mount Type | Surface |
| Series | WE-GDT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Isolation Voltage | 1500V |
| Minimum Operating Frequency | 10kHz |
| Maximum Operating Frequency | 100kHz |
| Primary Inductance | 370μH |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Primary DC Resistance | 520mΩ |
| Secondary DC Resistance | 640mΩ |
| Leakage Inductance | 1.8μH |
| Wurth Elektronik Surface Pulse Transformer 1 | 1 Turns Ratio, 370 μH Prim. Inductance, 520mΩ Prim. Resistance |
Key Features
- Compact surface mount design with an EP5 package measuring 7mm x 7mm x 6mm.
- Features excellent electrical performance suitable for high efficiency SMP Synchronous Flyback circuits.
- Operates within a wide frequency range of 10kHz to 100kHz ensuring versatile usage.
- Insulation voltage rating of 1500VDC for safe and reliable operation.
- Temperature resistant from -40°C up to 125°C for harsh industrial environments.
- Leakage inductance of 1.8μH supporting efficient energy transfer.
- Termination by solder, suitable for standard PCB assembly processes.
- Complies with IPC/JEDEC J-STD-020D standards for quality and reliability.
Product Description
Wurth Elektronik 760301106 Surface Mount Pulse Transformer is engineered for demanding industrial electronic applications requiring reliable and precise pulse signal transformation. This pulse transformer offers a 1:1 turns ratio and a primary inductance of 370μH with a primary DC resistance of 520mΩ.
This component is housed in a compact 7mm by 7mm by 6mm EP5 package, making it ideal for high-density PCB layouts. It supports frequencies ranging from 10kHz to 100kHz, accommodating various signal and power circuit needs.
The pulse transformer features an insulation voltage of 1500V, allowing safe operation in electrical isolation scenarios. It maintains excellent electrical performance across an operating temperature range from -40°C to 125°C, suitable for harsh and variable industrial environments.
Its leakage inductance is measured at 1.8μH, ensuring high efficiency and minimal energy loss in power transmission. The device has solder termination for standard PCB mounting and complies with IPC/JEDEC J-STD-020D standards, assuring robust manufacturing quality and reliability.
This model is especially designed for gate drive applications in synchronous power supplies and flyback converters, providing high efficiency and precise control in power electronics.
Compact surface mount design with EP5 package. 1:1 turns ratio with 370μH primary inductance. Operating frequency range of 10kHz to 100kHz. 1500V insulation voltage for high isolation. Wide operating temperature from -40°C to 125°C.
Low primary resistance of 520mΩ and secondary resistance of 640mΩ. Compliant with IPC/JEDEC J-STD-020D standard. Solder termination suitable for PCB mounting. Leakage inductance of 1.8μH. Ideal for gate drive and power supply applications.
Widely used in industrial electronics, power supplies, and manufacturing environments, the Wurth Elektronik 760301106 Pulse Transformer supports efficient signal isolation and power conversion. Explore more power transformers and electronic components on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this model is 370μH.
It features a 1:1 turns ratio.
This pulse transformer operates within a frequency range of 10kHz to 100kHz.
The insulation voltage rating is 1500VDC, allowing for safe and reliable operation.
The dimensions of the EP5 package are 7mm x 7mm x 6mm.
The primary DC resistance is 520mΩ.
The leakage inductance is measured at 1.8μH.
It can operate in a temperature range from -40°C to 125°C.
It uses solder termination, making it suitable for standard PCB assembly processes.
It complies with IPC/JEDEC J-STD-020D standards for quality and reliability.
The secondary DC resistance is 640mΩ.
