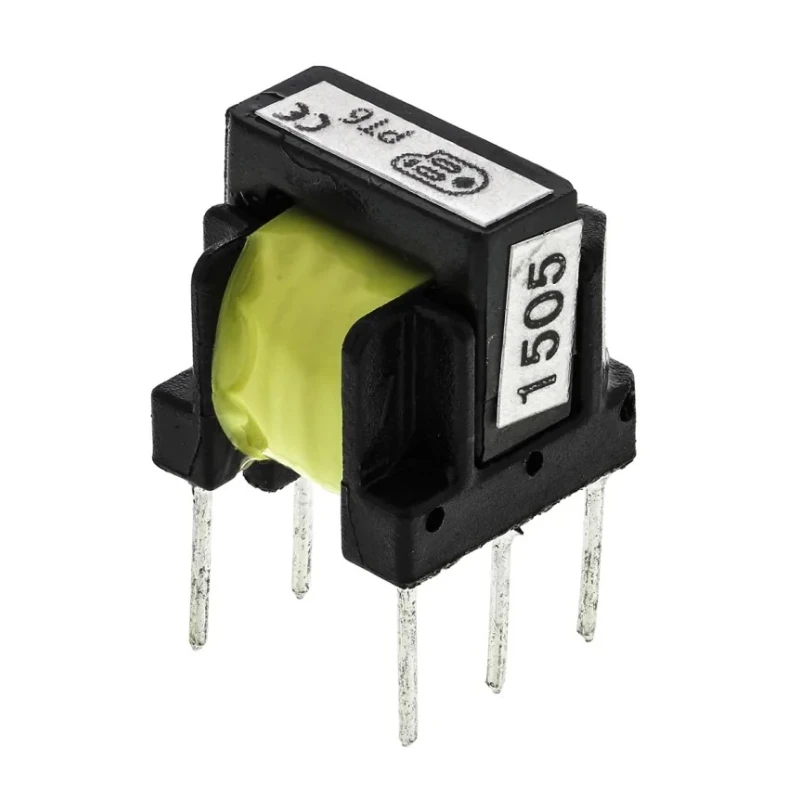

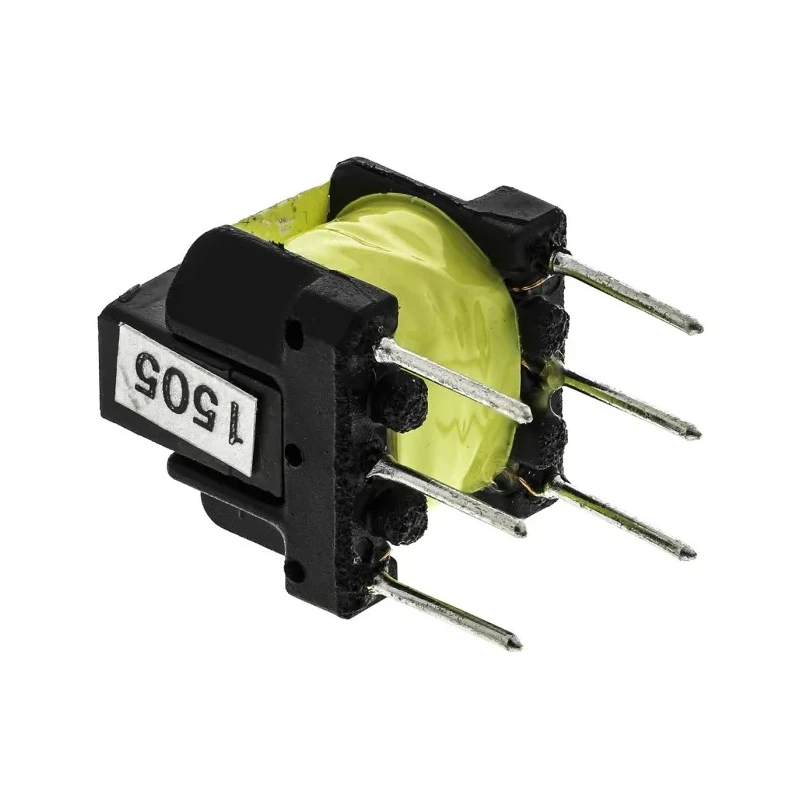

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 3 mH Primary Inductance, 1.1Ω Primary Resistance PT6

OEP PT6 Through Hole Pulse Transformer is built to provide electrical isolation and signal transfer in pulse applications, particularly thyristor and triac control systems. It features a robust 1:1 turns ratio with a primary inductance of 3 mH, making it suitable for a wide range of electronic equipment requiring isolation between firing circuits and loads.

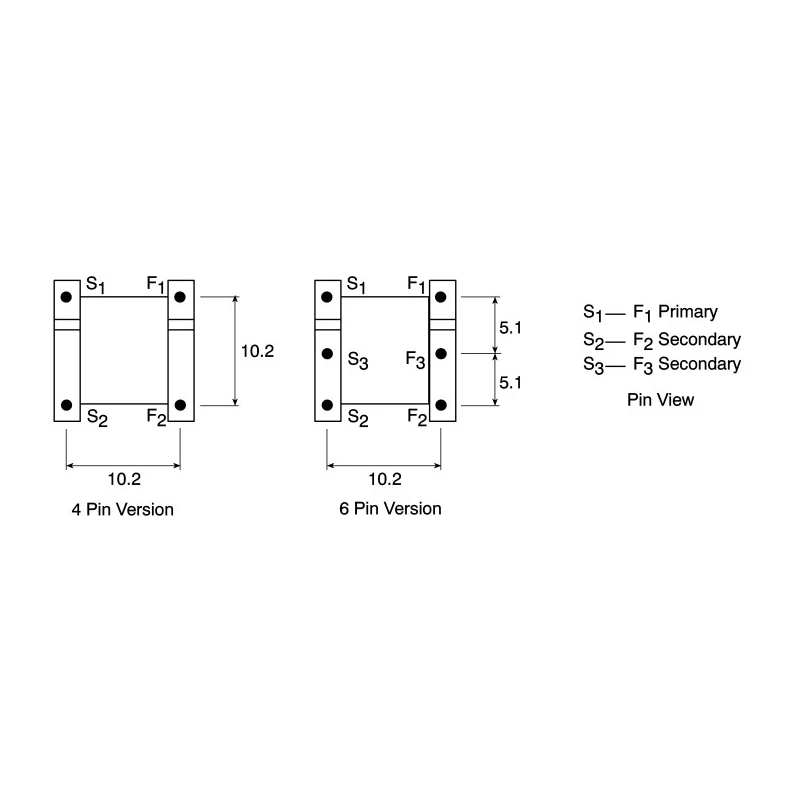

The transformer is designed for through-hole mounting on printed circuit boards, ensuring solid mechanical and electrical connections. Measuring 13 mm in length and width with a 15 mm depth, it offers a compact solution for tight PCB layouts.

With a maximum operating frequency of 1 MHz and minimum frequency of 3 kHz, this pulse transformer supports a broad spectrum of pulse and switching frequencies. Its primary DC resistance of 1.1Ω and secondary resistance of 0.9Ω provide efficient energy conduction with minimal losses. Leakage inductance is maintained at 19μH, enabling precise pulse shaping and signal integrity.

This product is manufactured in China and is ideal for use in industrial electronics, power supply circuits, control systems, and telecommunication applications requiring pulse transformation and isolation.

Key Features:. 1:1 turns ratio for balanced signal transfer. 3 mH primary inductance for energy storage and filtering. Primary resistance of 1.1Ω for stable current flow. Through-hole mount type for PCB integration. Compact size: 13 mm (L) x 13 mm (W) x 15 mm (D).

Operating frequency range from 3 kHz to 1 MHz. Leakage inductance of 19μH for accurate operation. Secondary DC resistance of 0.9Ω. Explore our broad range of Pulse Transformers and electronic components on EnvMart to find the ideal solution for your project and industrial needs.
