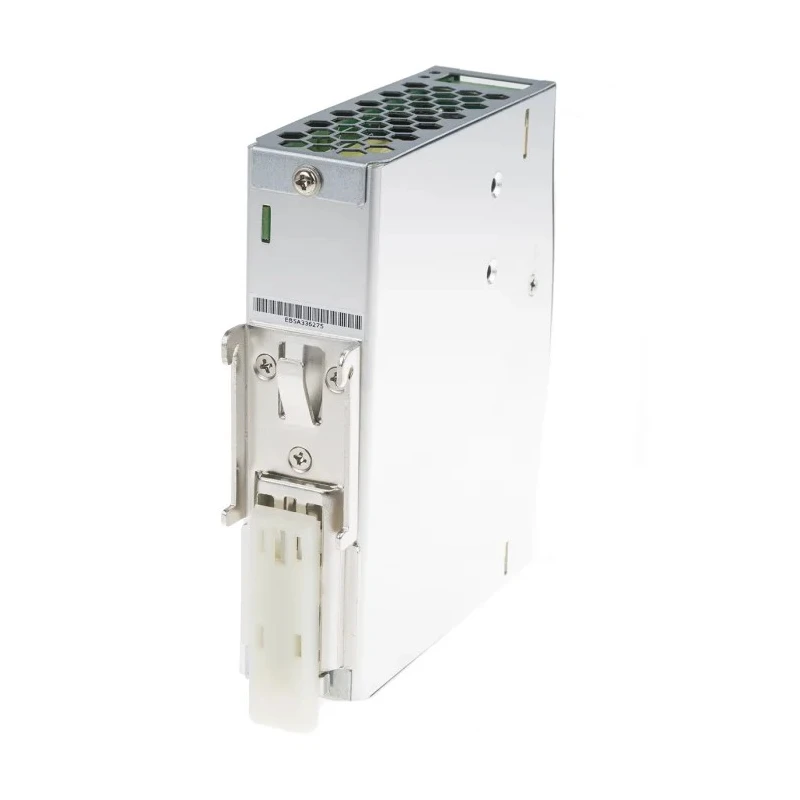

Mean Well Switched Mode DIN Rail Power Supply 370V DC / 264V AC Input, 15V DC 6.3A 75W, SDR-75-12
Specifications
| Country of Origin | India |
|---|---|
| Warranty | 3 years |
| Brand | MEAN WELL |
| Power | 75W |
| Efficiency | 88.5 % |
| Height | 125mm |
| Model | SDR-75-12 |
| Depth | 102mm |
| Width | 102mm |
| Series | SDR |
| Output Current | 6.3A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | UL, TUV EN 609501, RoHS |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 88V ac |
| Burn-in Test | 100% full load |
| Peak Load Capability | 150% |
| Industrial Immunity Level | EN61000-6-2 (EN50082-2) |
Key Features
- Provides 15V DC regulated output with maximum current of 6.3A.
- Accepts universal AC and DC input up to 370V DC or 264V AC.
- High efficiency switched mode design for reduced power loss and reliable operation.
- Full suite of protections including short circuit, overload, overvoltage, and overtemperature safeguards.
- Convenient DIN rail mounting for TS-35/7.5 or TS-35/15 rail types.
- Approved to global safety standards including UL, TUV EN 60950-1, and RoHS compliance.
- Metal housing for improved heat dissipation and industrial durability.
- Operating temperature range from -30°C to +70°C for performance in harsh environments.
Product Description
The Mean Well SDR-75-12 is a switched mode DIN Rail Power Supply engineered for industrial control systems, automation panels, semiconductor equipment, and other demanding environments where compact size, high efficiency, and reliable power are essential. With an output of 15V DC and a robust 6.3A maximum current, it delivers 75W of continuous regulated power.
This power supply accepts a wide range of AC and DC input voltages, including up to 370V DC and 264V AC, making it suitable for global operation. The switched mode design enhances energy efficiency and minimizes losses, while convection cooling eliminates the need for moving parts, reducing maintenance demands.
Comprehensive protection features are integral to the SDR-75-12. It is equipped to safeguard connected equipment against short circuit events, overload, overvoltage, and overtemperature conditions. The DIN rail mounting compatibility supports TS-35/7.5 and TS-35/15 profiles, streamlining cabinet installations for industrial and process control panels.
Manufactured with a robust metal housing, this power supply efficiently dissipates heat and withstands harsh environmental factors. The operating temperature covers a broad -30°C to +70°C range, supporting performance in extreme industrial and automation settings. Reliability is further assured through compliance with UL, TUV EN 60950-1, and RoHS standards, as well as passing a 100% full load burn-in test as part of quality assurance.
The Mean Well SDR-75-12 is commonly used to power programmable logic controllers (PLCs), sensors, relays, industrial I/O modules, actuators, and other DC-powered equipment in factory automation, process control, and electro-mechanical installations. The integrated DC OK signal relay enables remote status monitoring for panel operators.
Engineered for compactness and easy system integration, this power supply is ideal for control cabinets and distributed automation systems where space, uptime, and thermal performance are all critical. With a peak load capability of 150% and efficiency ratings approaching 90%, it meets the rigorous requirements of industrial power distribution.
Explore more DIN rail power supplies and industrial automation components from Mean Well and other leading brands at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR-75-12 provides a regulated output of 15V DC with a maximum current of 6.3A.
It accepts a wide input voltage range of up to 370V DC or 264V AC.
This power supply has dimensions of 125mm in height, 102mm in width, and 102mm in depth.
The efficiency rating of the SDR-75-12 is approximately 88.5%.
It operates effectively within a temperature range of -30°C to +70°C.
It complies with UL, TUV EN 60950-1 standards and is RoHS certified.
This model is designed for convenient DIN rail mounting compatible with TS-35/7.5 or TS-35/15 profiles.
It includes protections against short circuit, overload, overvoltage, and overtemperature conditions.
The peak load capability of this power supply is 150%.
It is a switched mode power supply designed for industrial applications.
