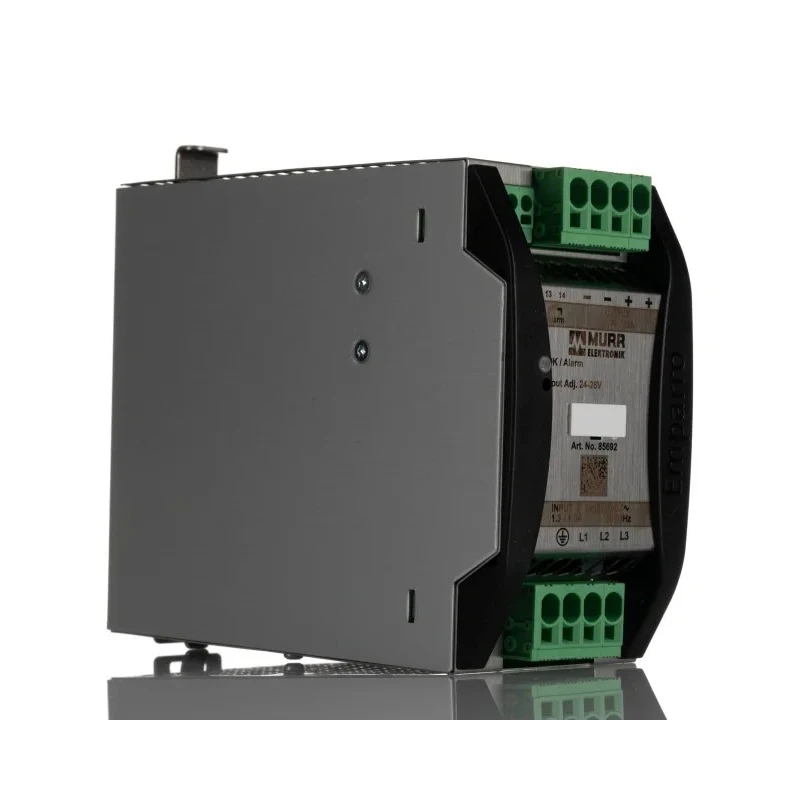

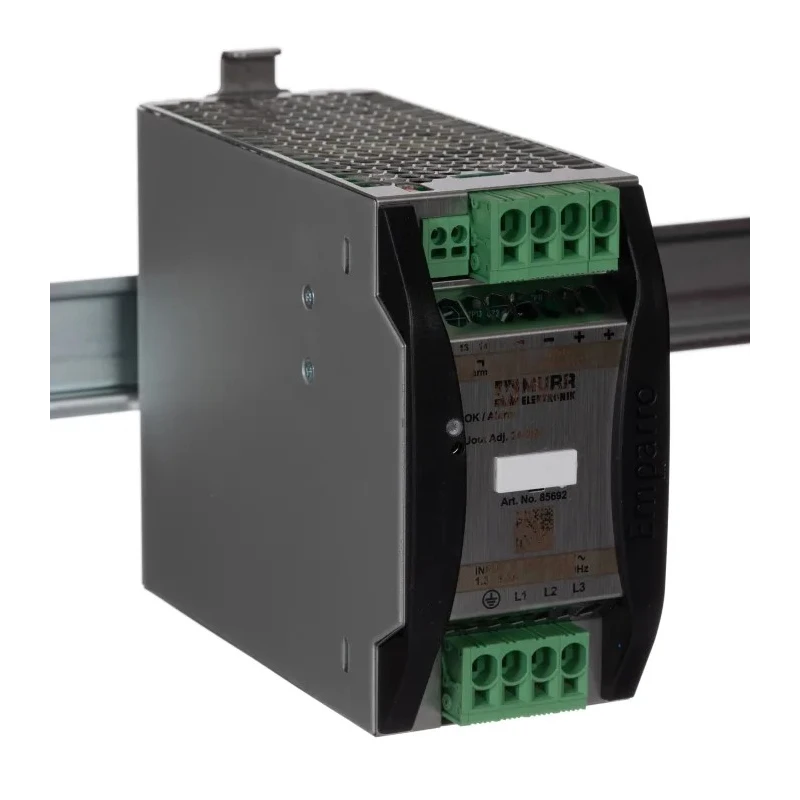

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 28V DC, 20A Output, 480W, AC/DC Input 324-572V AC 85692

Free Delivery in India | Lowest Global Shipping Charges

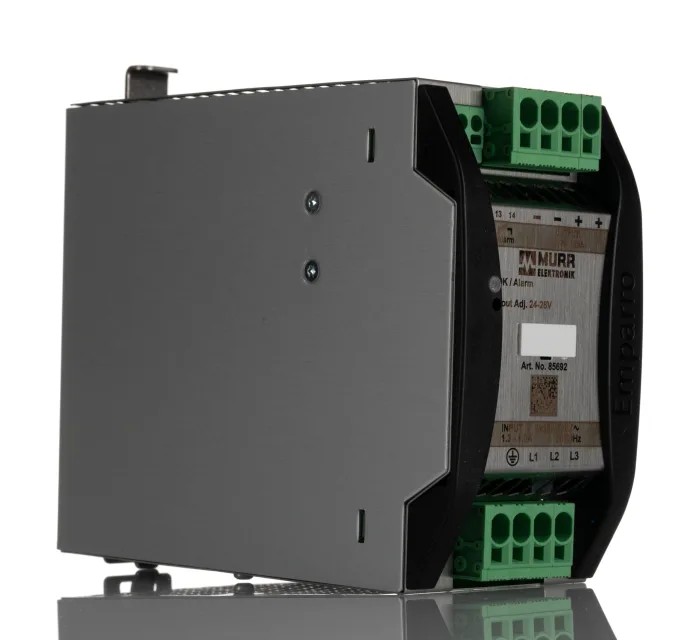

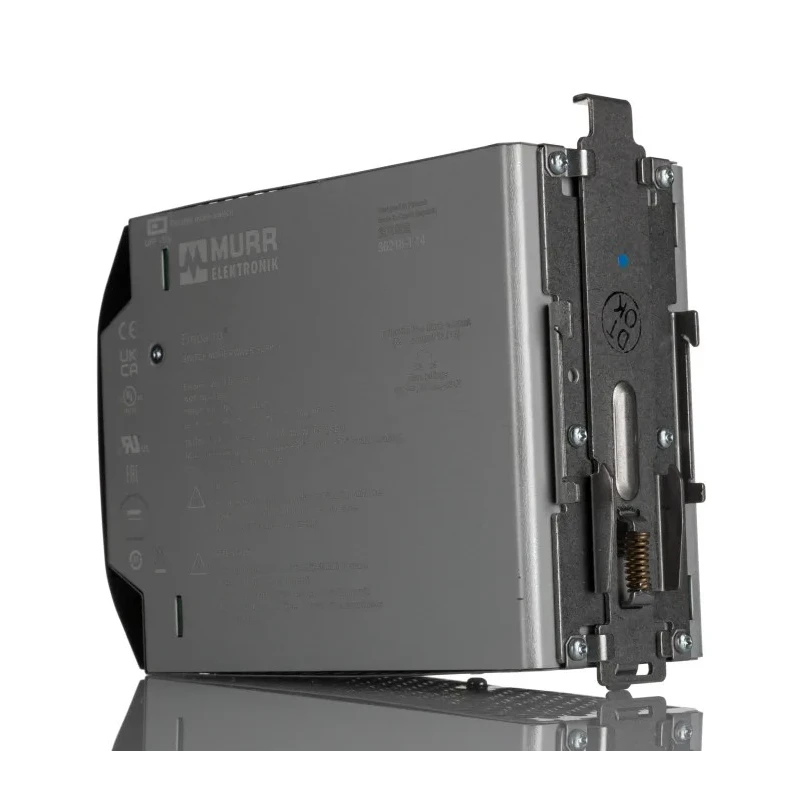

Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 28V DC, 20A Output, 480W, AC/DC Input 324-572V AC 85692

Name: Murrelektronik Limited EMPARRO Switched Mode DIN Rail Power Supply 28V DC, 20A Output, 480W, AC/DC Input 324-572V AC 85692
Brand: Murrelektronik Limited
SKU: 193224
Price: 615.09 USD
Availability: InStock



Category DIN Rail Power Supply Brand Murrelektronik Limited Condition New

Specifications

Country of Origin	Czech Republic
Brand	Murrelektronik Limited
Power	480W
Efficiency	94.8%
Height	143mm
Model	85692
Depth	167mm
Width	65mm
Series	EMPARRO
Output Current	20A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	572V ac
Maximum Output Voltage	28V dc
Minimum Input Voltage	324V ac

Key Features

Supports AC/DC input voltage from 324V AC to 572V AC with high efficiency up to 94.8%.
Provides power boost mode delivering 150% power for at least 4 seconds.
Compact design with metal housing and protective EMC characteristics.
Operating temperature ranges from -40°C to 70°C ensuring reliable industrial performance.
Equipped with push-in terminals and LED status indicator for user convenience.
Includes integrated device protection and constant current control during overload.
Suitable for use in industrial control systems and semiconductor fabrication equipment.

Product Description

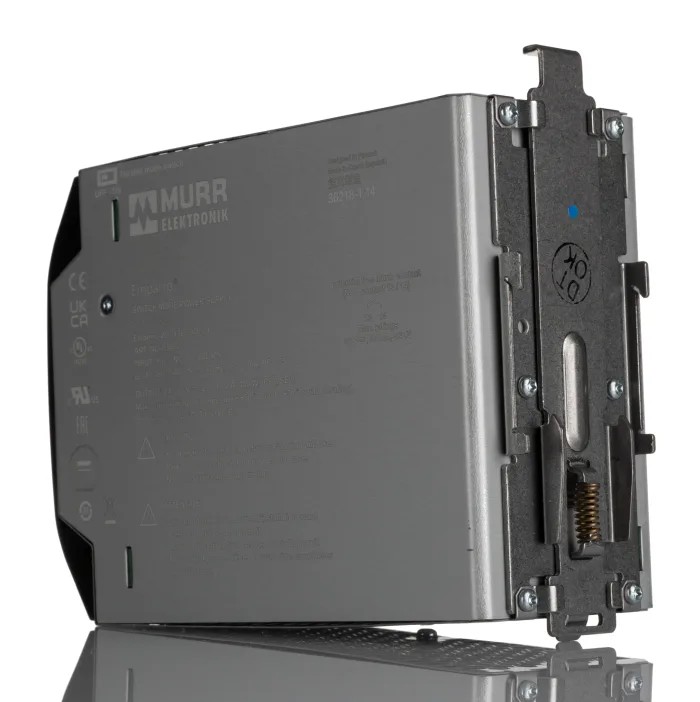

Murrelektronik Limited 85692 EMPARRO Switched Mode DIN Rail Power Supply delivers a stable and efficient DC output voltage of 28V with a maximum current output of 20A, and a total power rating of 480W. This power supply accepts a wide input voltage range of 324V AC to 572V AC (AC/DC input) designed to work with three electrical phases. Its metal housing ensures excellent electromagnetic compatibility (EMC) while providing mechanical robustness.

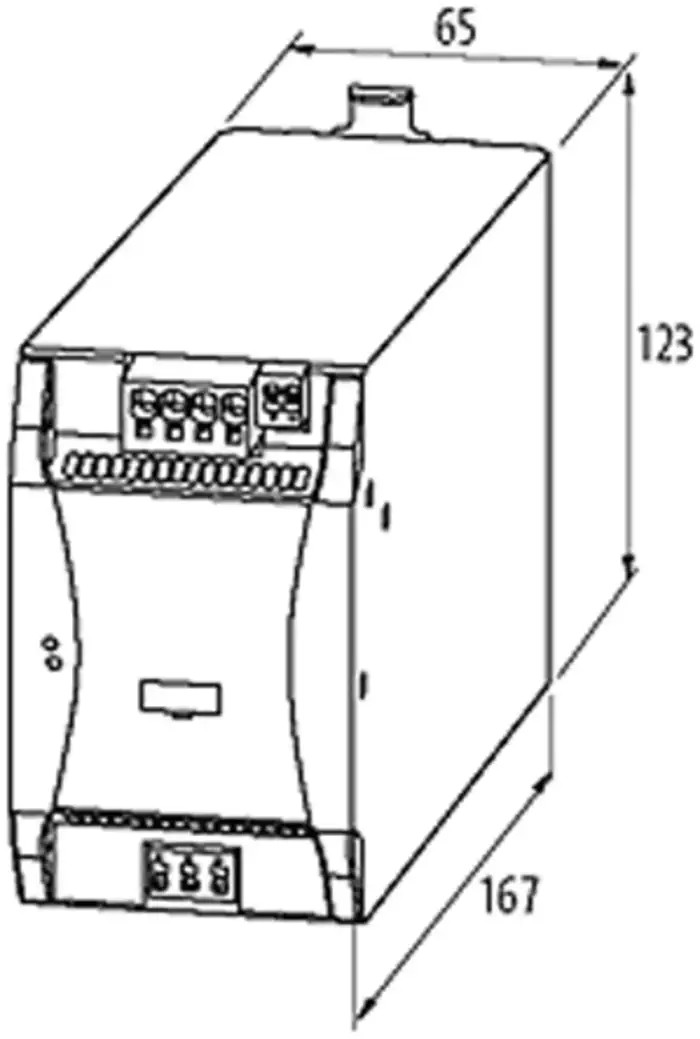

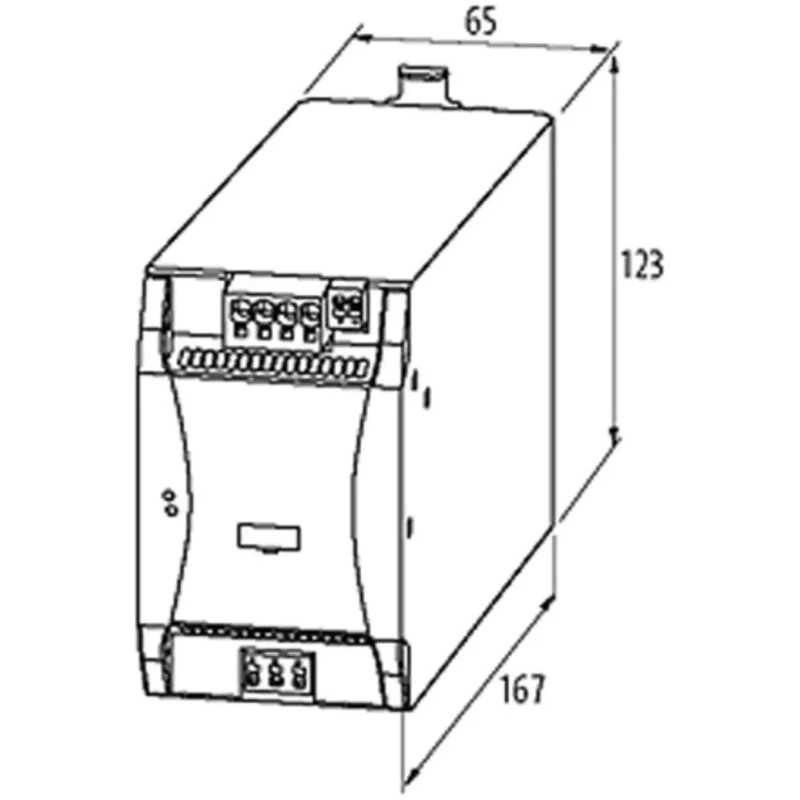

Featuring a slim design with dimensions 143mm height, 65mm width, and 167mm depth, it integrates seamlessly into DIN rail mounting systems commonly used in industrial automation and control panels. It supports a power boost mode delivering 150% of rated power for up to 4 seconds to handle the startup of higher load equipment without requiring additional power supplies.

The device operates efficiently with up to 94.8% efficiency and includes push-in terminals for fast wiring and an LED status indicator for operational monitoring. The output voltage is adjustable between 24VDC and 28VDC, and current is controlled steadily during overloads to protect connected equipment. Operating temperature ranges from -40°C to +70°C enable reliable functionality in harsh environments.

High efficiency and power boost mode enhance system reliability. Metal housing provides robust EMC protection. Wide input voltage range supports 3-phase power systems. Designed for installation on standard DIN rails. Integrated protection mechanisms ensure safety and durability.

LED status indicator simplifies maintenance and troubleshooting.

This DIN Rail Power Supply is ideal for applications in factory automation, electro-mechanical apparatus, industrial control systems, and semiconductor fabrication equipment. It complies with standards including EN 60950-1, cULus, SEMI F47, EN 55011 B, EN 61000-3-2, EN 60715, and EN 61204-3. The product is manufactured in the Czech Republic with a product condition certified as New.
