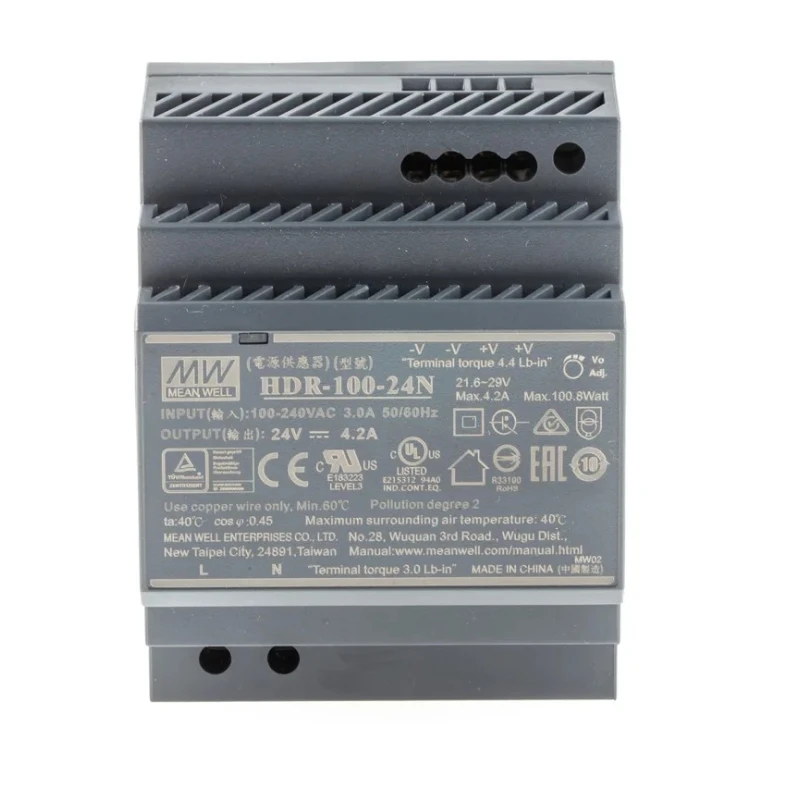

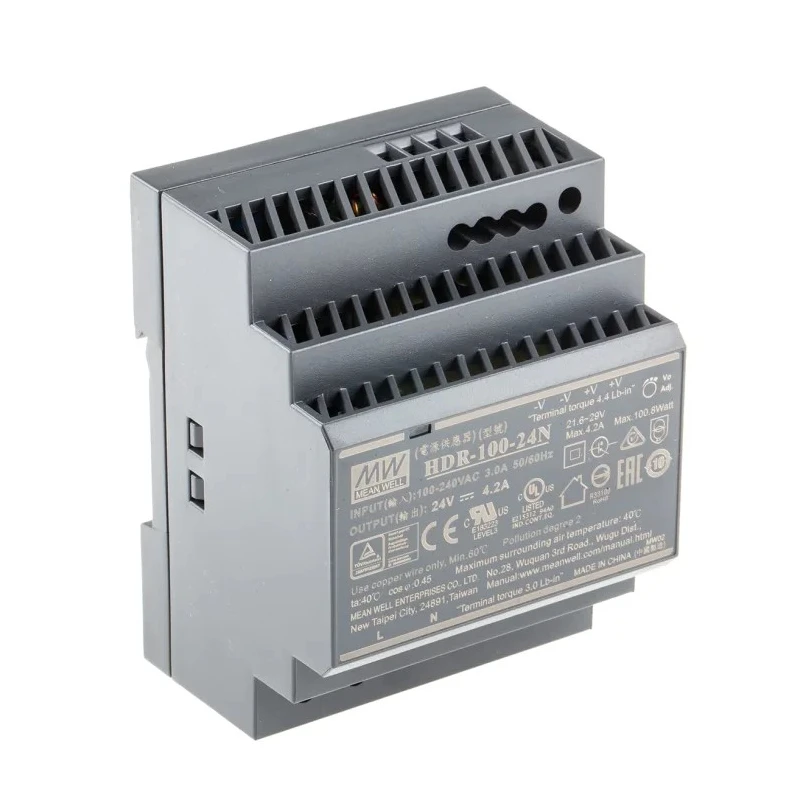

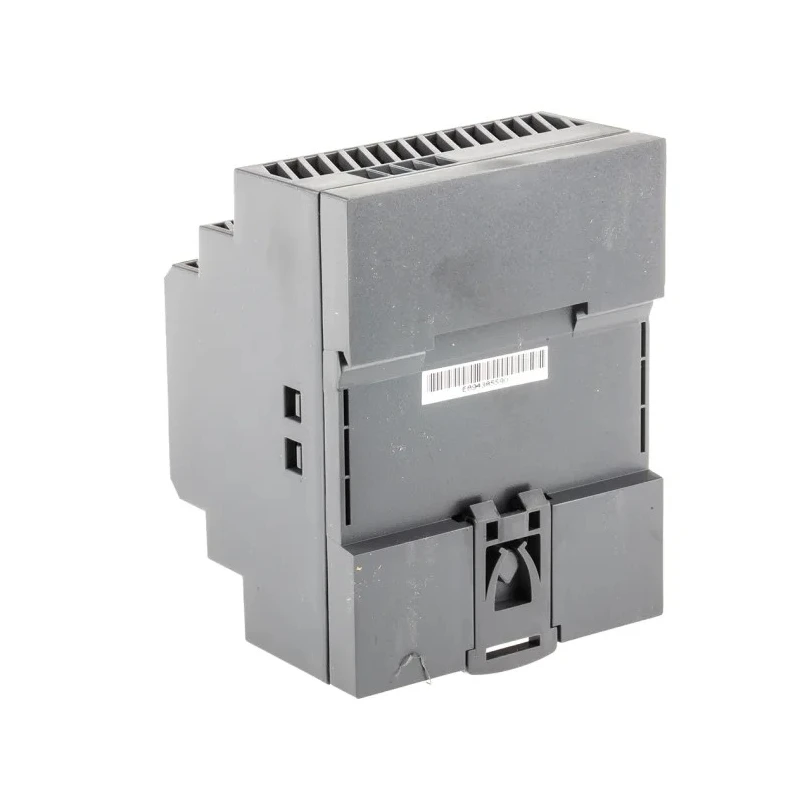

MEAN WELL Ultra Slim Switched Mode DIN Rail Power Supply 1 Phase AC/DC Input 85V to 370V, 24V DC 4.2A Output HDR-100-24N
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 100.8W |
| Efficiency | 90% |
| Height | 90mm |
| Model | HDR-100-24N |
| Depth | 54.5mm |
| Width | 70mm |
| Series | Ultra Slim |
| Output Current | 4.2A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | UL, TUV EN 609501, RoHS |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Supports a wide AC/DC input voltage range from 85V AC to 370V DC.
- Provides a single output voltage of 24V DC at 4.2A current.
- Compact size with dimensions 90mm height, 70mm width, and 54.5mm depth.
- High efficiency up to 90% ensuring low power loss during operation.
- Operates reliably in temperature range from -30°C to 70°C.
- Plastic housing designed for electrical hazard prevention and space-saving installation on TS-35 DIN rails.
- Meets UL, TUV EN 609501 safety standards and RoHS compliance.
- DC output voltage adjustable for specific applications.
Product Description
MEAN WELL HDR-100-24N is an ultra slim switched mode DIN Rail Power Supply designed for industrial and electronic applications requiring compact and reliable DC power delivery. It supports a broad input voltage range of 85V AC to 370V DC, making it suitable for various power environments.
The power supply delivers a regulated 24V DC output at 4.2A current with a power rating of 100.8W, enabling efficient power provision to sensitive electronics or control systems. Its plastic stepped shape housing provides electrical safety and allows installation on standard TS-35/7.5 or TS-35/15 DIN rails, optimizing cabinet space.
Operating performance spans from a minimum temperature of -30°C to a maximum of 70°C, accommodating industrial ambient conditions. With an efficiency of 90%, it ensures energy-efficient power conversion with minimal heat generation. The DC output voltage is adjustable, providing flexibility for tailored applications.
This model has been certified under UL and TUV EN 609501 standards and complies with RoHS directives, indicating adherence to safety and environmental norms. It is ideally used in industrial automation, control systems, manufacturing equipment, and building electrical infrastructure that require compact DIN rail mounted power supplies.
Key features include a full input range for AC/DC, plastic insulation housing, space saving ultra slim profile, electrical hazard prevention, and suitability for industrial DIN rail mounting. Such attributes make the HDR-100-24N a reliable component for electrical power distribution in commercial and industrial settings.
Supports a wide AC/DC input voltage range from 85V AC to 370V DC. Provides a single output voltage of 24V DC at 4.2A current. Compact size with dimensions 90mm height, 70mm width, and 54.5mm depth. High efficiency up to 90% ensuring low power loss during operation.
Operates reliably in temperature range from -30°C to 70°C. Plastic housing designed for electrical hazard prevention and space-saving installation on TS-35 DIN rails. Meets UL, TUV EN 609501 safety standards and RoHS compliance.
DC output voltage adjustable for specific applications. Explore our extensive collection of MEAN WELL power supplies and related electronic components at EnvMart for superior quality and industry-standard electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide AC/DC input voltage range from 85V AC to 370V DC.
This model provides a regulated output voltage of 24V DC at a current of 4.2A.
The dimensions are 90mm in height, 70mm in width, and 54.5mm in depth.
It has an efficiency rating of up to 90%, ensuring low power loss during operation.
It operates reliably in a temperature range from -30°C to 70°C.
This power supply meets UL and TUV EN 609501 safety standards and is RoHS compliant.
Yes, the DC output voltage is adjustable for specific applications.
It features a plastic housing designed for electrical hazard prevention and space-saving installation on DIN rails.
It has a power rating of 100.8W.
It is ideally used in industrial automation, control systems, manufacturing equipment, and building electrical infrastructure.
It operates on a single electrical phase.
The maximum input voltage is 370V DC or 264V AC.
