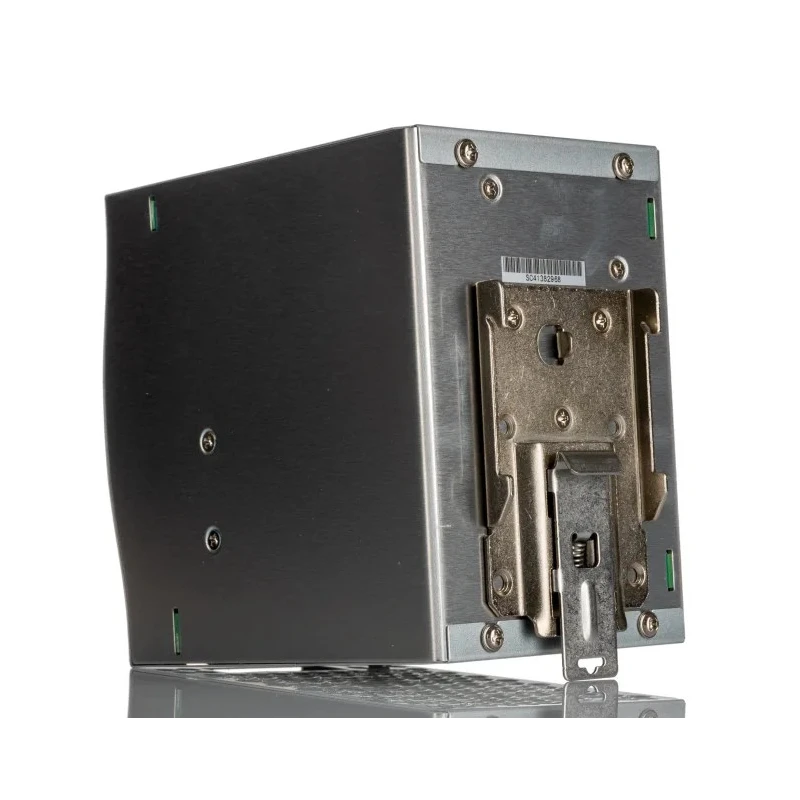

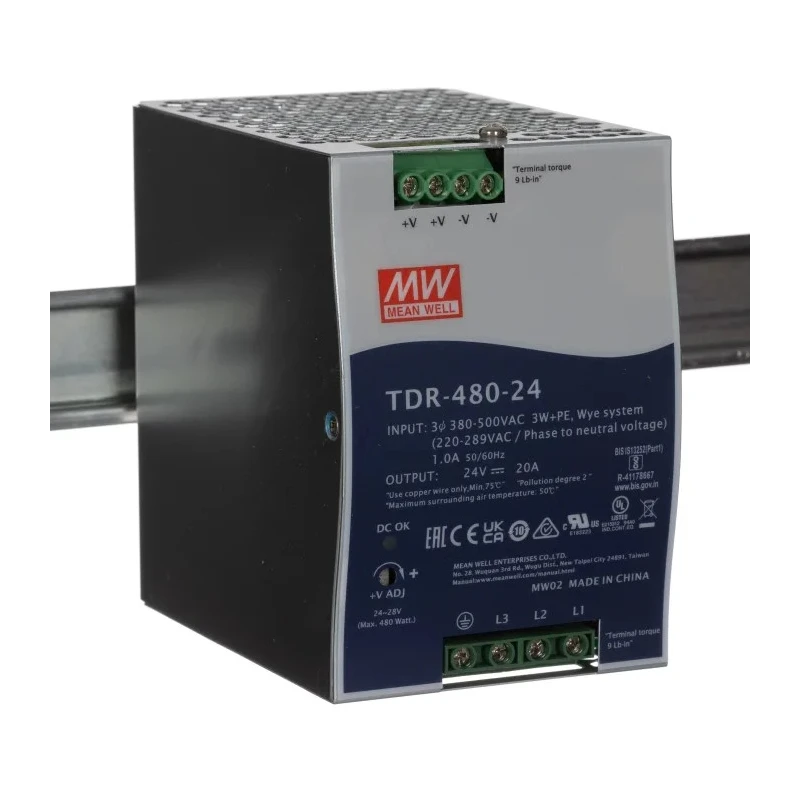

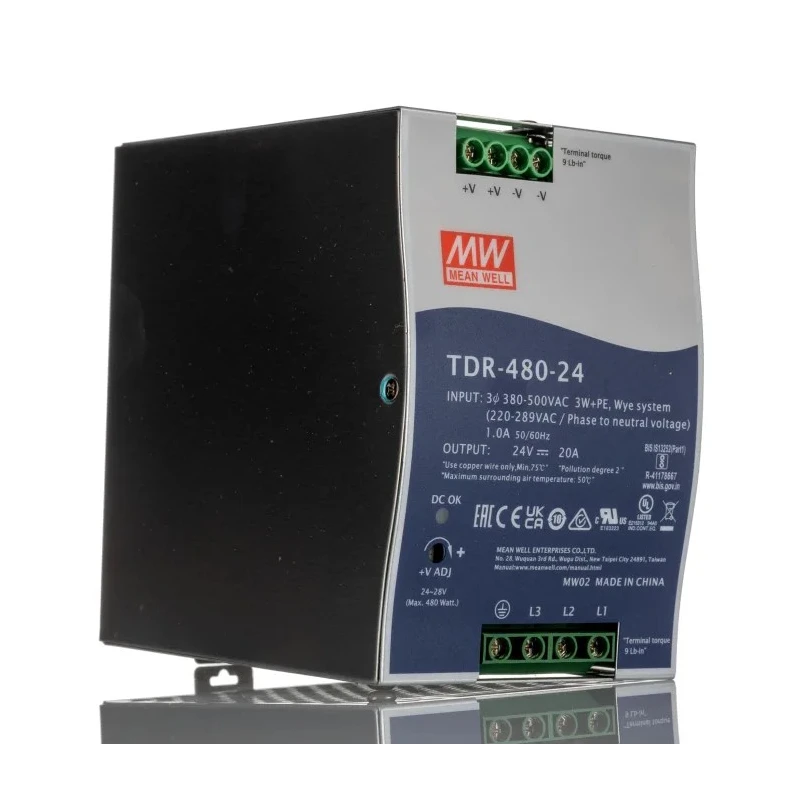

MEAN WELL TDR Switched Mode DIN Rail Power Supply 24V DC Output, 20A, 480W, AC/DC Input, 3 Phase TDR-480-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Power | 480W |
| Efficiency | 92.5% |
| Height | 125.2mm |
| Model | TDR-480-24 |
| Depth | 128.5mm |
| Width | 85.5mm |
| Series | TDR |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 780, 550V dc |
| Electrical Phase | 3 |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 340, 480V ac |
Key Features
- High efficiency of up to 92.5% for energy saving.
- Compact design with 85.5mm width, suitable for TS-35 DIN rails.
- Wide operating temperature range from -30°C to 70°C.
- Adjustable DC output voltage for flexible application needs.
- Compliance with RoHS, TUV EN 609501, and UL safety standards.
- Plastic housing with isolation class II for electrical hazard prevention.
- Designed for installation in industrial control cabinets and automation systems.
- Full range AC/DC input voltage with variations of 340-480V AC and 550-780V DC.
Product Description
MEAN WELL TDR-480-24 is a highly efficient switched mode DIN Rail Power Supply designed for industrial and commercial applications requiring reliable DC power. It provides a stable 24V DC output at 20A with a total power capacity of 480W and supports three phase AC/DC input voltage, making it suitable for complex electrical environments.
The power supply features a narrow and compact body measuring 85.5mm wide, enabling easy installation on standard TS-35/7.5 or TS-35/15 DIN rails, saving cabinet space. Its stepped plastic housing ensures a safe insulation class II rating which minimizes electrical hazard risk during operation and maintenance.
The TDR series supports an input voltage range of 340 to 480V AC and 550 to 780V DC, accommodating industrial power supply variations. Operating temperature range between -30°C and 70°C allows usage in harsh conditions. Its efficiency rating of 92.5% aids in lowering energy consumption and heat generation.
Industrial applications for this power supply include automation control panels, manufacturing systems, and instrumentation where stable and reliable DC voltage is critical. The product complies with internationally recognized safety standards including RoHS, TUV EN 609501, and UL, ensuring trustworthy operation.
High efficiency up to 92.5% reduces power loss and saves energy. Compact size with 85.5mm width for efficient DIN rail mounting. Wide input voltage supports AC/DC and three electrical phases. Suitable for extreme temperature environments from -30°C to 70°C.
Plastic stepped housing provides Class II isolation and safety. Compliance with RoHS, TUV EN 609501, and UL standards ensures reliability. Adjustable DC output voltage improves adaptability for diverse uses. Designed for industrial control panels and automation applications.
Ensure you explore related DIN rail power supplies at EnvMart for comprehensive industrial electrical power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDR-480-24 provides a stable output voltage of 24V DC and an output current of 20A.
This model has a maximum power capacity of 480W.
The efficiency rating of this power supply is up to 92.5%, which helps reduce energy consumption.
It operates within a wide temperature range of -30°C to 70°C, making it suitable for harsh environments.
This power supply supports an input voltage range of 340 to 480V AC and 550 to 780V DC.
The dimensions of the TDR-480-24 are 85.5mm in width, 125.2mm in height, and 128.5mm in depth.
It features a plastic housing with a Class II insulation rating to minimize electrical hazards.
Yes, it complies with RoHS, TUV EN 609501, and UL safety standards, ensuring reliable operation.
This model has one output.
The TDR-480-24 operates on a three-phase electrical system.
Yes, the output voltage is adjustable, allowing for flexible application needs.
It is designed for industrial control panels, automation systems, and manufacturing systems where stable DC power is required.
