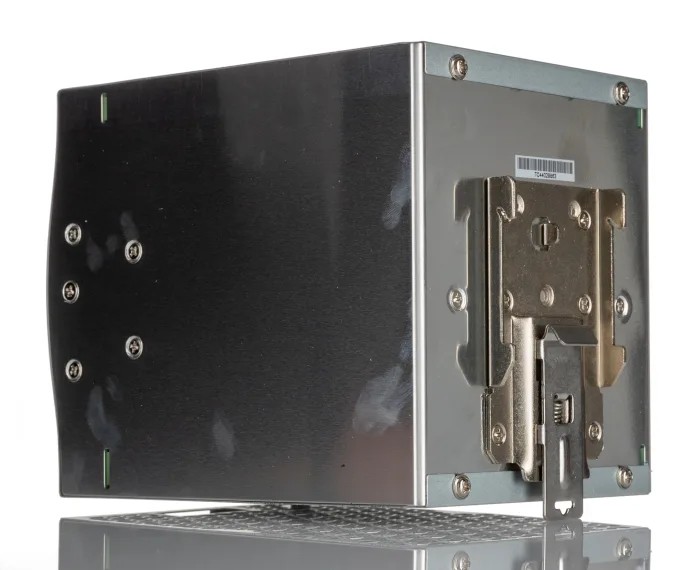

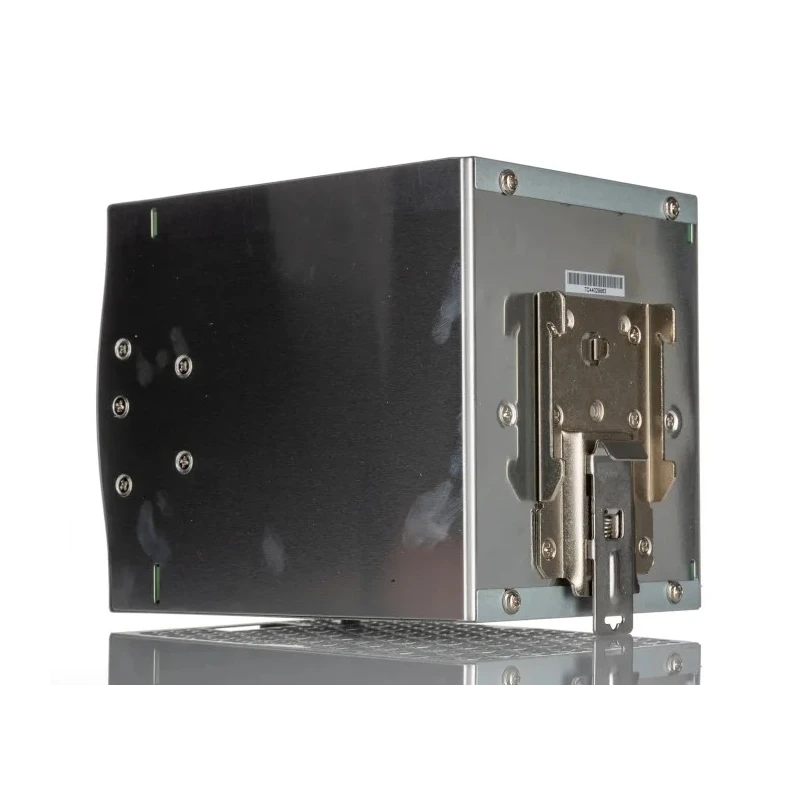

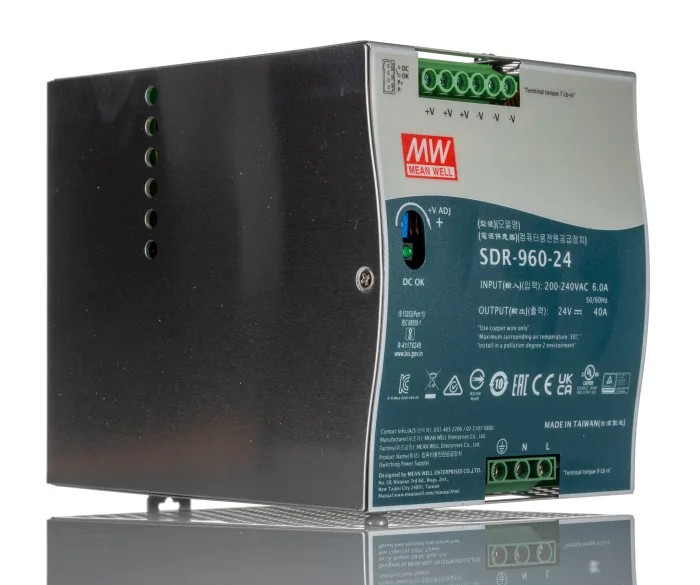

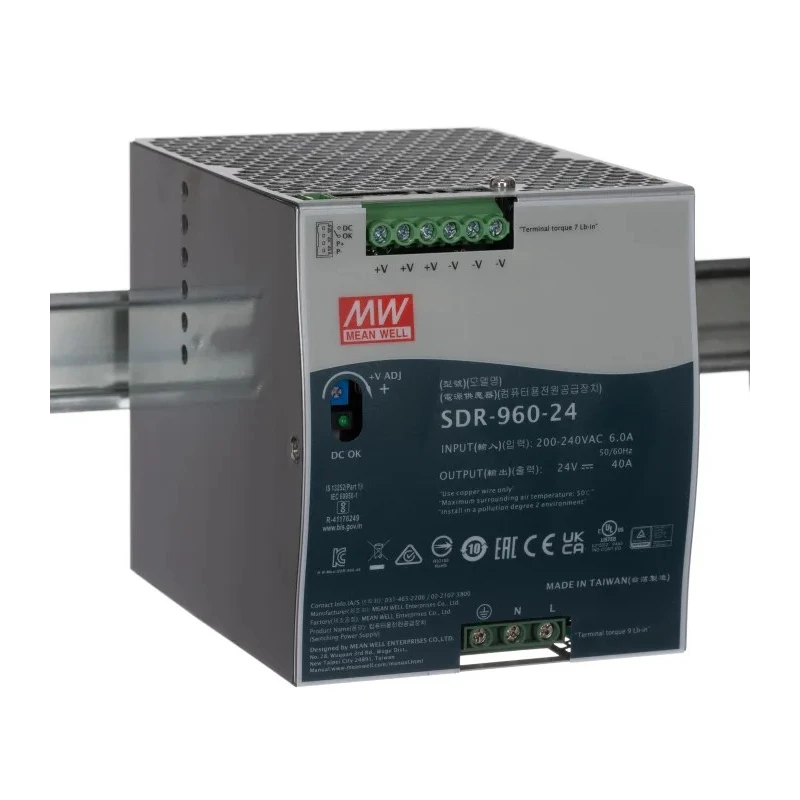

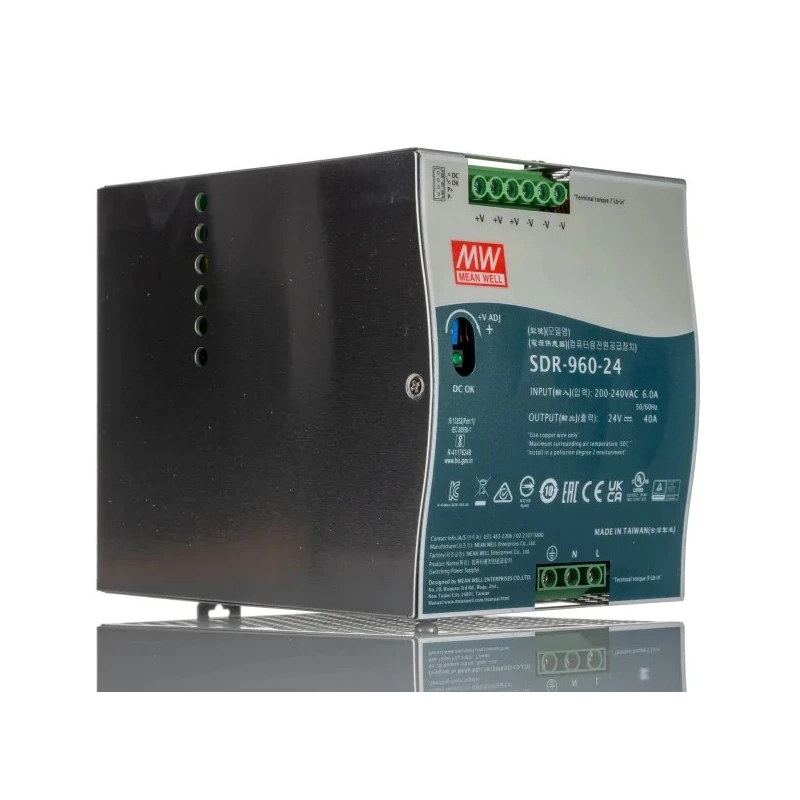

MEAN WELL SDR Switched Mode DIN Rail Power Supply 1 Phase AC 180-264V Input 28V DC 40A 960W SDR-960-24
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 960W |
| Height | 125mm |
| Model | SDR-960-24 |
| Depth | 150mm |
| Width | 110mm |
| Series | SDR |
| Output Current | 40A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | UL, RoHS, TUV EN 609501 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 180V ac |
Key Features
- Operates from 180V to 264V AC single-phase input voltage range.
- Equipped with built-in active PFC function compliant to EN61000-3-2 standards.
- Features built-in constant current limiting and DC OK relay contact for system monitoring.
- Compact 110 mm width metal housing for enhanced heat dissipation and space saving.
- Supports current sharing for power up to 3840W via parallel operation (3+1 configuration).
- Includes short circuit, overload, overvoltage, and over temperature protections.
- Cooling by free air convection eliminates need for fans and reduces maintenance.
- Certified to UL 508 for industrial control equipment and meets EN61000-6-2 industrial immunity level.
Product Description
MEAN WELL SDR-960-24 is a switched mode DIN Rail Power Supply designed for industrial and automation use, accepting a wide AC input voltage range of 180V to 264V single-phase and delivering regulated 28V DC output at 40A with 960W power rating.
This power supply features a slim 110mm width metal enclosure that enables efficient heat dissipation and space-saving installation on TS-35/7.5 or TS-35/15 DIN rails. Its built-in active power factor correction (PFC) meets the EN61000-3-2 standard, improving energy efficiency and reducing power line disturbances.
Additional protections including short circuit, overload, overvoltage, and over temperature safeguard the device and connected equipment, while a built-in DC OK relay contact monitors output status. It supports current sharing for parallel operation to achieve higher power outputs up to 3840W using three units plus one redundant unit.
Cooling is by free air convection, eliminating moving parts and maintenance needs. The power supply is UL 508 approved for industrial control equipment and complies with EN61000-6-2 for industrial immunity, ensuring robust performance in harsh electrical environments.
Ideal for use in industrial control systems, semiconductor fabrication, factory automation, and electro-mechanical apparatus, the SDR-960-24 offers reliable and efficient DC power for a wide range of applications.
Operates from 180V to 264V AC single-phase input voltage. Output voltage 28V DC with maximum current 40A delivers 960W power. Built-in active PFC and constant current limiting enhance performance. Short circuit, overload, overvoltage, and over temperature protections included.
Supports current sharing up to 3840W (3+1 configurations) for scalability. Cooling by free air convection for maintenance-free operation. UL 508 and EN61000-6-2 certified industrial power supply. Compact dimensions: Width 110mm, Height 125mm, Depth 150mm.
Designed for DIN rail mounting on TS-35/7.5 or TS-35/15 rails. Explore the MEAN WELL SDR series and other industrial power supplies on EnvMart for trusted performance and efficient power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with an input voltage range of 180V to 264V AC single-phase.
This model provides a regulated output voltage of 28V DC with a maximum output current of 40A.
The SDR-960-24 has a total power rating of 960W.
It has a compact size with dimensions of 110mm in width, 125mm in height, and 150mm in depth.
It includes protections against short circuit, overload, overvoltage, and over temperature.
Yes, it supports current sharing for parallel operation, allowing for higher power outputs up to 3840W using three units plus one redundant unit.
Cooling is achieved through free air convection, which eliminates the need for fans and reduces maintenance.
The maximum operating temperature is 70°C, while the minimum operating temperature is -30°C.
It is designed for DIN rail mounting on TS-35/7.5 or TS-35/15 rails.
It is certified to UL 508 for industrial control equipment and meets the EN61000-6-2 industrial immunity level.
This model is a single-phase switched mode power supply.
The country of origin for this power supply is Taiwan.
