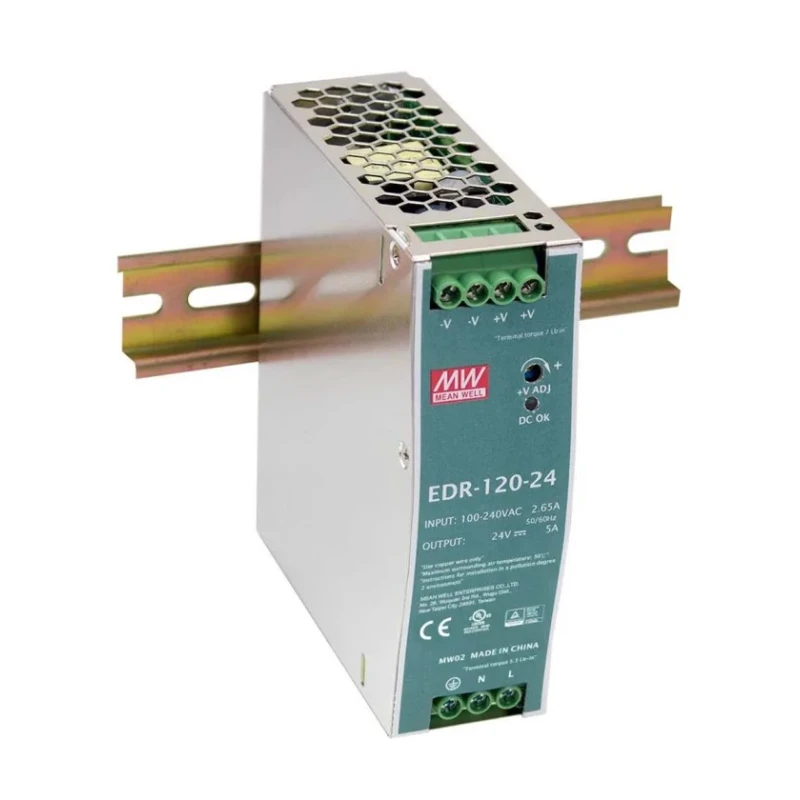

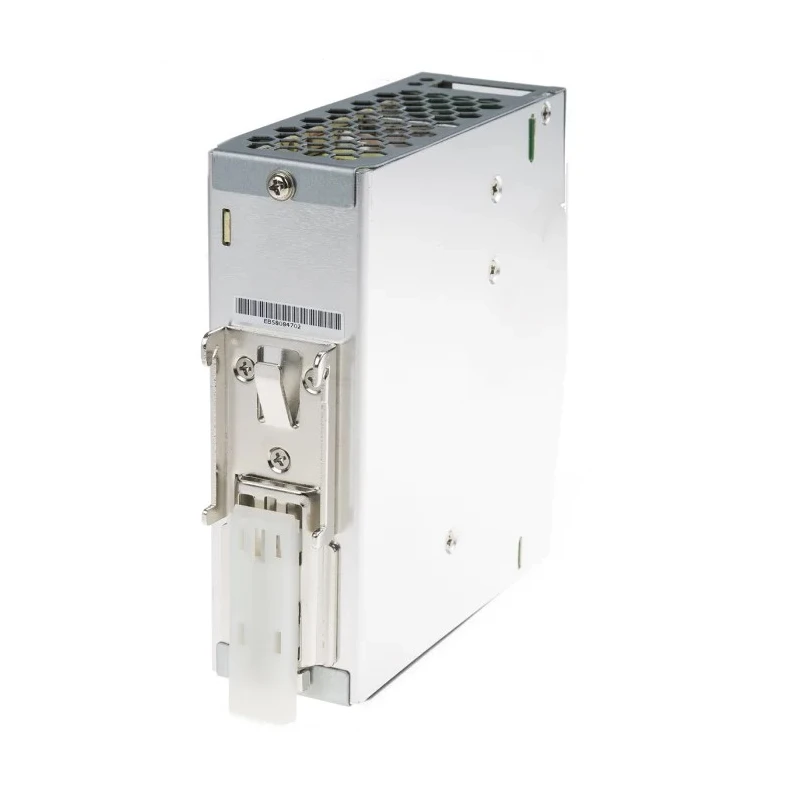

RS PRO EDR Switched Mode DIN Rail Power Supply 264V AC Input 28V DC, 5 A Output, 120 W EDR-120-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 120W |
| Efficiency | 85.5% |
| Height | 125mm |
| Model | EDR-120-24 |
| Depth | 114mm |
| Width | 40mm |
| Series | EDR |
| Output Current | 5A |
| Maximum Operating Temperature | 60°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Provides reliable single output of 28V DC with 5 A current capacity.
- Supports universal AC input voltage range from 90V to 264V.
- Operates efficiently at 85.5% with metal housing for optimal heat dissipation.
- Designed for DIN Rail TS-35/7.5 or 15 mounting for easy installation.
- Operates safely within temperature range of -20°C to 60°C under free air convection cooling.
- Includes protections for short circuit, overload, over voltage, and over temperature.
- Certified with RoHS, TUV EN 60950-1, and UL for industrial reliability.
- Compact design with dimensions 125mm (H) x 40mm (W) x 114mm (D).
Product Description
Mean Well EDR-120-24 is a switched mode DIN Rail Power Supply designed to convert AC input voltage of 90V to 264V into a stable 28V DC output with a current rating of 5 A and power output of 120 W. This power supply operates efficiently at approximately 85.5% efficiency and features a robust metal housing to enhance heat dissipation and reliability in industrial environments.
The product is compact and slim to save space in control cabinets, with installation supporting TS-35/7.5 or TS-35/15 DIN Rail mounting. It operates effectively within a wide temperature range from -20°C to 60°C and uses free air convection for cooling, eliminating the need for fans.
The EDR series is equipped with multiple protective features including short circuit, overload, over voltage, and over temperature protections, safeguarding connected devices and improving longevity. It complies with industrial standards including RoHS, TUV EN 60950-1, and UL certification, making it reliable for harsh operational conditions.
This model is particularly well-suited for automation systems, semiconductor fabrication equipment, machine control systems, and electromechanical apparatuses that require stable and efficient DC power delivery on DIN rails.
Reliable single output of 28V DC at 5 A current. Wide universal AC input voltage range for versatility. Space-saving slim metal housing design for enhanced durability. Integral protections provide operational safety and fault tolerance.
Suitable for industrial automation, manufacturing, and control systems. Compliance with global safety and environmental standards. DIN Rail mounting facilitates quick and secure installation. Operation in a broad temperature range improves adaptability.
Convection cooling ensures silent, maintenance-free operation. Explore more products in the DIN Rail Power Supply category to find compatible and complementary power solutions for your industrial and electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO EDR-120-24 provides a stable output voltage of 28V DC with a current capacity of 5 A.
It supports a universal AC input voltage range from 90V to 264V.
This unit operates efficiently at approximately 85.5% efficiency.
The dimensions of this power supply are 125mm in height, 40mm in width, and 114mm in depth.
It is designed for DIN Rail TS-35/7.5 or TS-35/15 mounting, facilitating easy installation.
The power supply operates safely within a temperature range of -20°C to 60°C.
It includes protections for short circuit, overload, over voltage, and over temperature.
This model is certified with RoHS, TUV EN 60950-1, and UL, ensuring compliance with industrial standards.
It utilizes free air convection for cooling, eliminating the need for fans and ensuring silent operation.
This unit provides a single output.
The power output of this power supply is 120 W.
It is particularly well-suited for automation systems, semiconductor fabrication equipment, and machine control systems.
