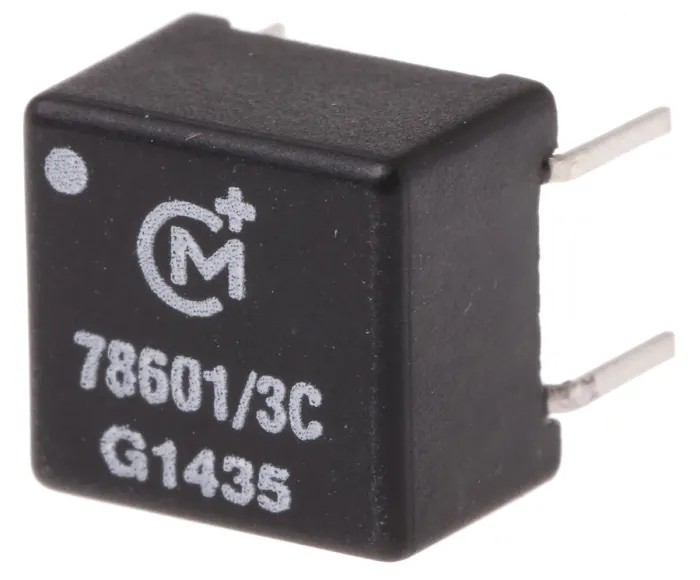

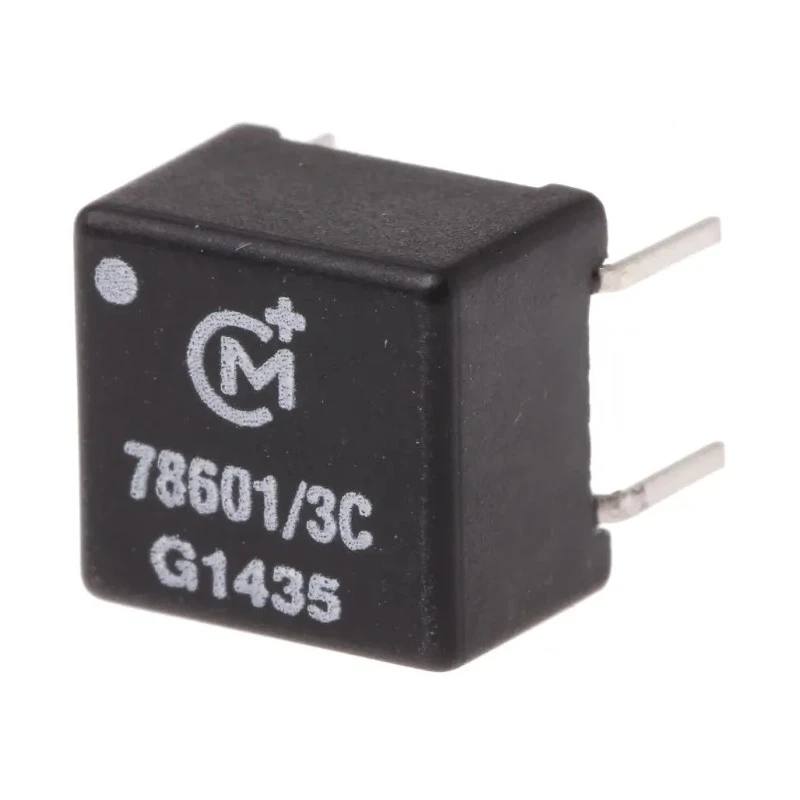

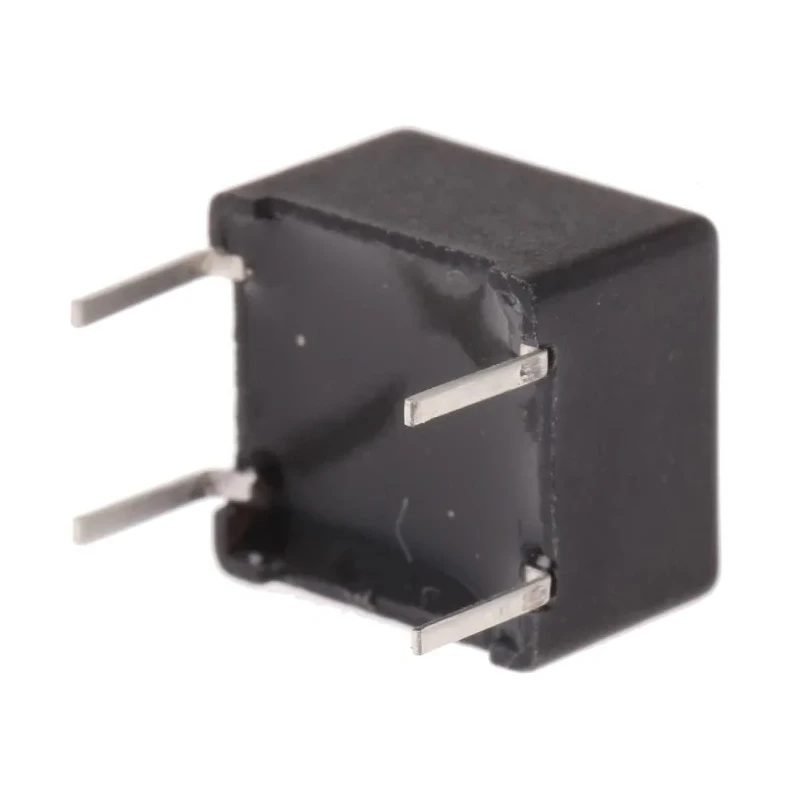

Murata Power Solutions Through Hole Pulse Transformer 1:1 Turns Ratio, 200μH Primary Inductance, 0.25Ω Primary 78601/3C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 9.52mm |
| Model | 78601/3C |
| Depth | 6.35mm |
| Gross Weight | 1.1g |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | 786 |
| Termination Type | Pin |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Isolation Voltage | 1kV |
| Primary Inductance | 200μH |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Primary DC Resistance | 0.25Ω |
| Leakage Inductance | 0.2μH |
Key Features
- Primary inductance is rated at 200 microhenries for efficient energy storage.
- Primary DC resistance is low at 0.25 ohms, minimizing power loss.
- Mount type is through hole with 6 pins for stable PCB integration.
- Leakage inductance is minimal at 0.2 microhenries to ensure signal integrity.
- Operates reliably within 0°C to 70°C temperature range.
- Isolation voltage rating is 1 kV for safety and compliance.
- Termination type is pin for standard electronic assembly.
Product Description
Murata Power Solutions model 78601/3C is a through hole pulse transformer featuring a 1:1 turns ratio and a primary inductance of 200 μH, combined with a primary DC resistance of 0.25Ω. It is part of the 786 series designed for general-purpose pulse transformer applications, including coupling, thyristor and triac firing circuits, and small-sized switch mode power supplies.
The transformer’s through hole mount type with 6 pins enables easy and reliable mounting on printed circuit boards. Its minimal leakage inductance of 0.2 μH ensures excellent signal integrity and performance in high-frequency applications. The unit operates in a temperature range from 0°C up to 70°C, making it suitable for varied industrial environments.
Physical dimensions include a length of 9.52 mm, width of 9 mm, and depth of 6.35 mm, with an isolation voltage rated at 1kV for electrical safety. This component’s termination type is pin style, standard in electronic manufacturing.
Applications extend to filtering and it can also be used as a common mode choke where required. Ideal for industrial, manufacturing, and electronic circuit design and repair contexts, this pulse transformer enhances energy efficiency and signal fidelity.
The pulse transformer supports a turns ratio of 1:1 for precise signal transfer. Primary inductance is rated at 200 microhenries for efficient energy storage. Primary DC resistance is low at 0.25 ohms, minimizing power loss.
Mount type is through hole with 6 pins for stable PCB integration. Leakage inductance is minimal at 0.2 microhenries to ensure signal integrity. Operates reliably within 0°C to 70°C temperature range. Compact dimensions: length 9.52 mm, width 9 mm, and depth 6.35 mm.
Isolation voltage rating is 1 kV for safety and compliance. Termination type is pin for standard electronic assembly. Weight is approximately 1.1 grams, suitable for lightweight electronic devices. Discover more Pulse Transformers and electronic components from Murata Power Solutions at EnvMart for your professional industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance is rated at 200 microhenries (μH), which supports efficient energy storage.
This model features a 1:1 turns ratio, allowing for precise signal transfer.
The primary DC resistance is low at 0.25 ohms, which helps minimize power loss.
The dimensions are 9.52 mm in length, 9 mm in width, and 6.35 mm in depth.
The isolation voltage rating is 1 kV, ensuring electrical safety and compliance.
It operates reliably within a temperature range of 0°C to 70°C.
This model has 6 pins, designed for stable PCB integration.
The mount type is through hole, which facilitates easy installation on printed circuit boards.
The leakage inductance is minimal at 0.2 microhenries (μH), ensuring excellent signal integrity.
This model complies with RoHS standards, indicating it meets environmental regulations.
It is suitable for general-purpose applications, including coupling, thyristor and triac firing circuits, and small-sized switch mode power supplies.
The weight is approximately 1.1 grams, making it suitable for lightweight electronic devices.
