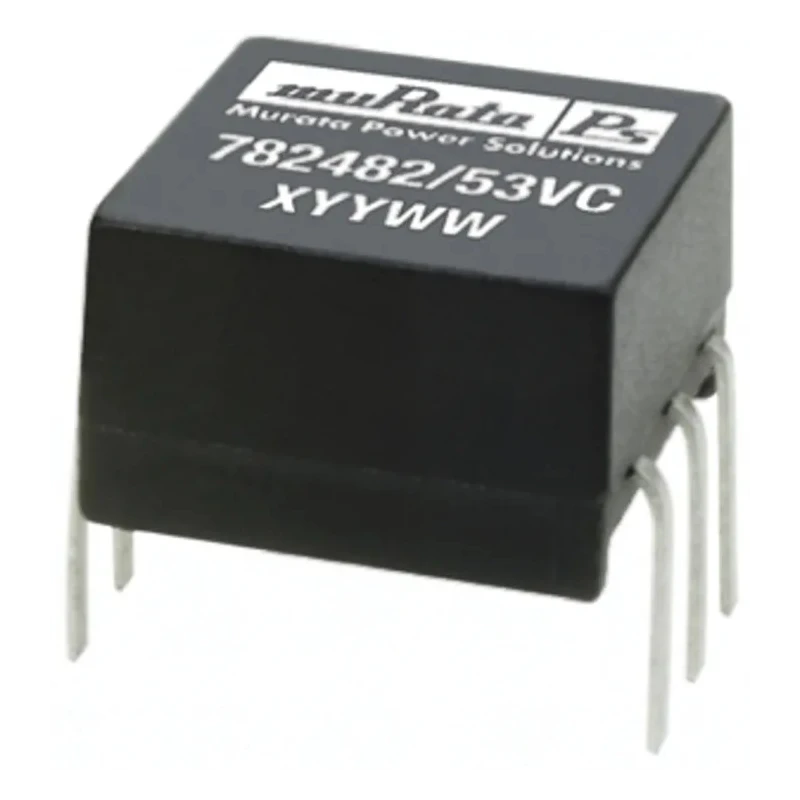

Murata Power Solutions Through Hole Pulse Transformer 1.14:1 Turns Ratio, 260μH Primary Inductance, 600mΩ 782482/53VC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 6.35mm |
| Model | 782482/53VC |
| Depth | 9.77mm |
| Gross Weight | 1.1g |
| Width | 9.14mm |
| Mount Type | Through Hole |
| Series | 782485 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Isolation Voltage | 4000V |
| Primary Inductance | 260μH |
| Turns Ratio | 1.14:1 |
| Primary DC Resistance | 600mΩ |
| Leakage Inductance | 8μH |
| Turns Ratio1.14 | 1 |
| 1.14 | 1 |
Key Features
- Primary inductance rated at 260 microhenries for precise signal transformation.
- Primary DC resistance of 600 milliohms ensures efficient current handling.
- Rated isolation voltage of 4000 volts provides excellent electrical isolation.
- Compact through-hole mount design with 6 pins and industry-standard pinout.
- Low leakage inductance of 8 microhenries helps maintain signal integrity.
- Operating temperature range from -40°C to 85°C for reliability in varied environments.
- Complies with RoHS environmental standards for safe use.
Product Description
Murata Power Solutions 782482/53VC Through Hole Pulse Transformer features a 1.14:1 turns ratio and a primary inductance of 260μH, enabling accurate pulse signal transformation for industrial and communications equipment.
This transformer supports isolation voltages up to 4000 volts, ensuring robust electrical isolation for RS-485 and RS-232 interfaces commonly found in industrial automation, data communication, and electronic instrumentation.
With a 600mΩ primary DC resistance and a minimal leakage inductance of 8μH, it maintains signal clarity and power efficiency in demanding application environments.
The component’s through-hole mounting and 6-pin configuration conform to industry standards, facilitating easy PCB integration and mechanical stability. Its compact size (6.35 mm length, 9.14 mm width, 9.77 mm depth) and lightweight construction (1.1 g) make it suitable for space-constrained assemblies.
Operating reliably in a temperature range from -40°C to 85°C, this transformer meets RoHS compliance requirements, ensuring environmentally friendly manufacturing and usage.
Ideal for use in industrial control systems, telecommunications, signal isolation circuits, and power supply modules, the Murata 782482/53VC combines durability with high-performance electrical characteristics.
Primary inductance rated at 260 microhenries for precise signal transformation. Primary DC resistance of 600 milliohms ensures efficient current handling. Rated isolation voltage of 4000 volts provides excellent electrical isolation.
Compact through-hole mount design with 6 pins and industry-standard pinout. Low leakage inductance of 8 microhenries helps maintain signal integrity. Operating temperature range from -40°C to 85°C for reliability in varied environments.
Dimensions: length 6.35 mm, width 9.14 mm, depth 9.77 mm, and weight 1.1 grams. Complies with RoHS environmental standards for safe use. Explore more Pulse Transformers and power solutions suitable for electronics manufacturing at EnvMart.
