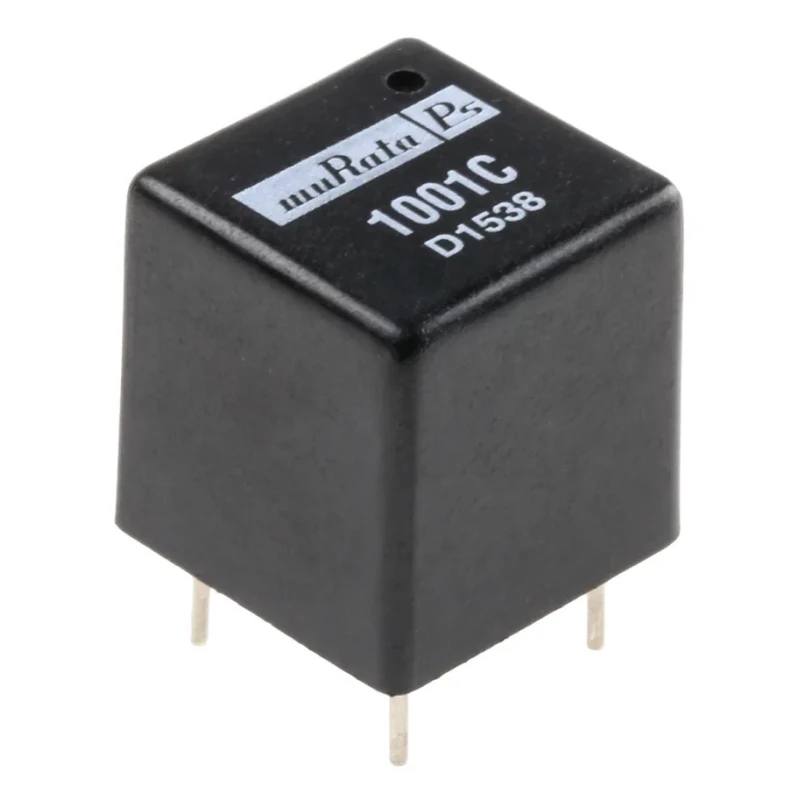

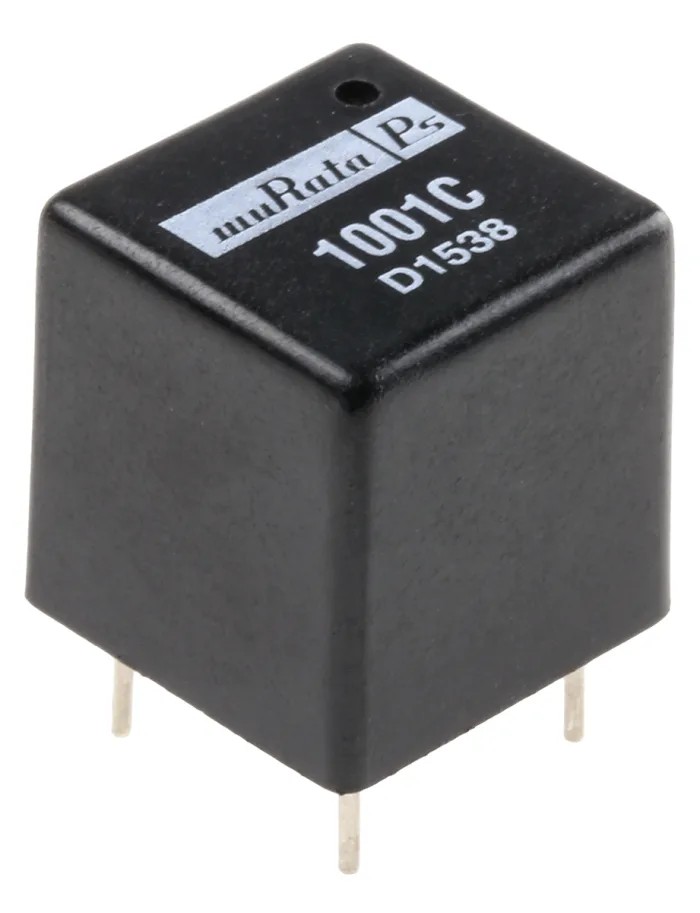

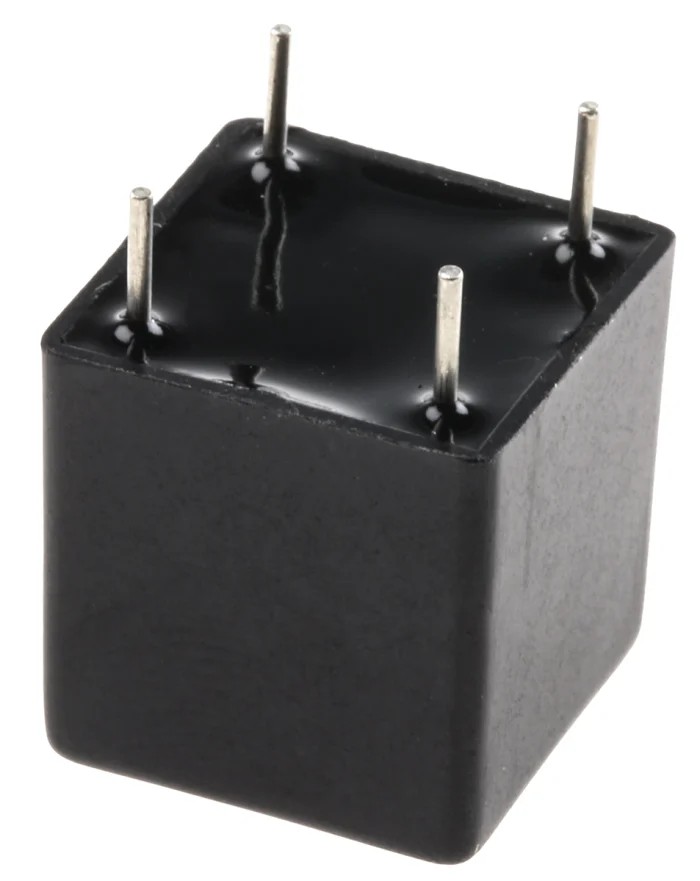

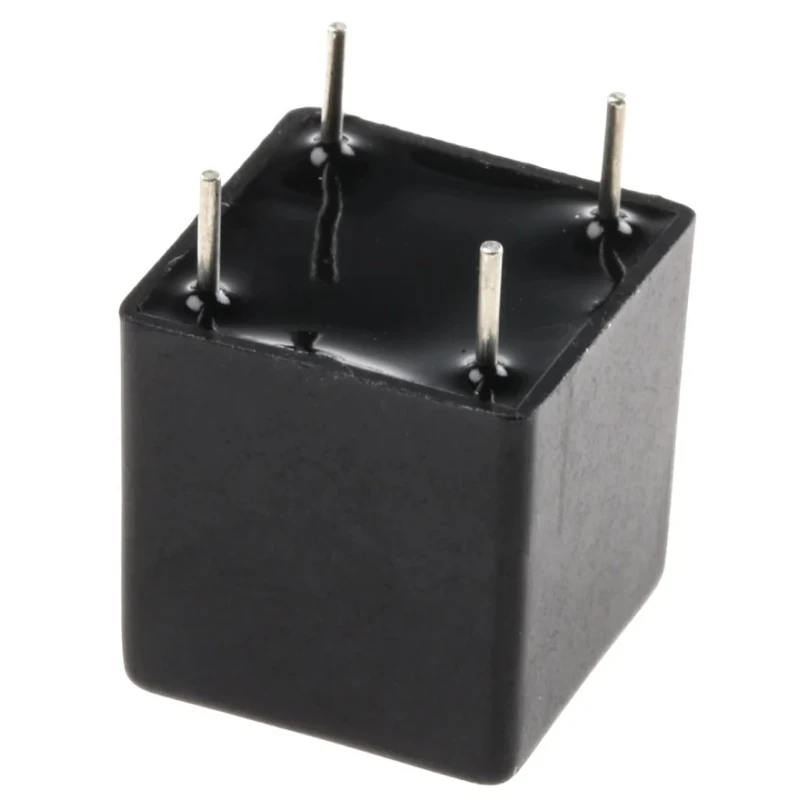

Murata Power Solutions PCB Pulse Transformer 1:1 Turns Ratio, 3 mH Primary Inductance, 1.2Ω Primary Resistance 1001C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 15.06mm |
| Model | 1001C |
| Depth | 15.75mm |
| Gross Weight | 8g |
| Width | 15.06mm |
| Mount Type | PCB |
| Series | 1000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS, UL |
| Primary Inductance | 3mH |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Primary DC Resistance | 1.2Ω |
| Secondary DC Resistance | 1Ω |
| Leakage Inductance | 22μH |
Key Features
- Primary inductance of 3 mH enables effective signal handling.
- 1.2Ω primary DC resistance optimizes electrical performance.
- Compact PCB mount design with dimensions 15.06mm x 15.06mm x 15.75mm.
- Operates reliably between 0°C and 70°C ambient temperature range.
- Leakage inductance rated at 22 μH for signal integrity.
- Isolation voltage of 2000 Vrms ensures safe operation.
- Complies with RoHS and UL standards for quality assurance.
- Lightweight construction at 8 grams facilitates easy PCB integration.
Product Description
Murata Power Solutions 1001C PCB Pulse Transformer offers a 1:1 turns ratio and a primary inductance of 3 mH, delivering reliable performance for pulse and wideband applications. This transformer is ideal for signal isolation and small isolated power supply designs where space is limited.
Its PCB mount configuration and compact dimensions of 15.06 mm length, 15.06 mm width, and 15.75 mm depth make it suitable for circuit board integration with minimal footprint impact. The device operates efficiently within a temperature range of 0°C to 70°C, supporting various industrial and electronic system applications.
The transformer exhibits a primary DC resistance of 1.2Ω and a secondary DC resistance of 1Ω, minimizing power loss and enhancing efficiency. With a leakage inductance of 22μH and an isolation voltage rating of 2000 Vrms, it ensures superior electrical isolation and signal integrity in demanding conditions.
Compliant with international safety and environmental standards including RoHS and UL, the 1000 series pulse transformers from Murata Power Solutions maintain high reliability and quality. The lightweight 8-gram construction facilitates ease of handling and installation on PCBs.
This pulse transformer is widely used in industrial, manufacturing, telecommunications, and power supply applications due to its robust construction and electrical characteristics.
Primary inductance of 3 mH enables effective signal handling. 1.2Ω primary DC resistance optimizes electrical performance. Compact PCB mount design with dimensions 15.06mm x 15.06mm x 15.75mm. Operates reliably between 0°C and 70°C ambient temperature range.
Leakage inductance rated at 22 μH for signal integrity. Isolation voltage of 2000 Vrms ensures safe operation. Complies with RoHS and UL standards for quality assurance. Lightweight construction at 8 grams facilitates easy PCB integration.
Explore more Pulse Transformers and electronic components at EnvMart for efficient and reliable power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this model is 3 mH, which enables effective signal handling.
It has a turns ratio of 1:1, making it suitable for various pulse and wideband applications.
The dimensions are 15.06 mm in length, 15.06 mm in width, and 15.75 mm in depth, allowing for compact PCB integration.
The primary DC resistance is 1.2Ω, which helps optimize electrical performance.
It operates reliably within a maximum temperature of 70°C.
The isolation voltage is rated at 2000 Vrms, ensuring safe operation.
The leakage inductance is rated at 22 μH, which is important for maintaining signal integrity.
It weighs 8 grams, facilitating easy handling and installation on PCBs.
It complies with RoHS and UL standards for quality assurance.
The secondary DC resistance is 1Ω, which contributes to its overall efficiency.
The operating temperature range is from 0°C to 70°C, suitable for various applications.
This model features a PCB mount design, making it ideal for circuit board integration.
