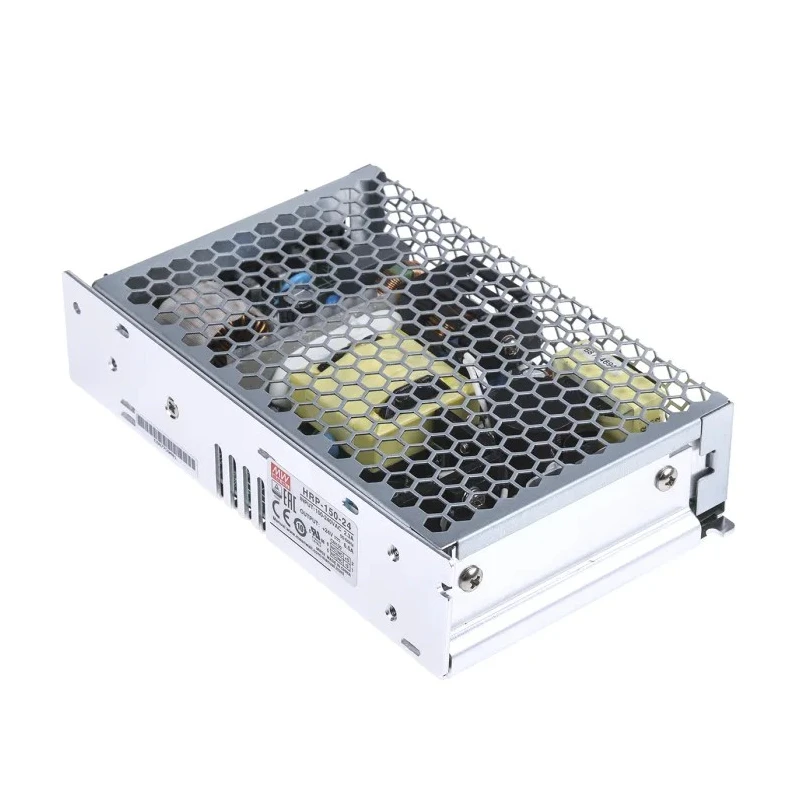

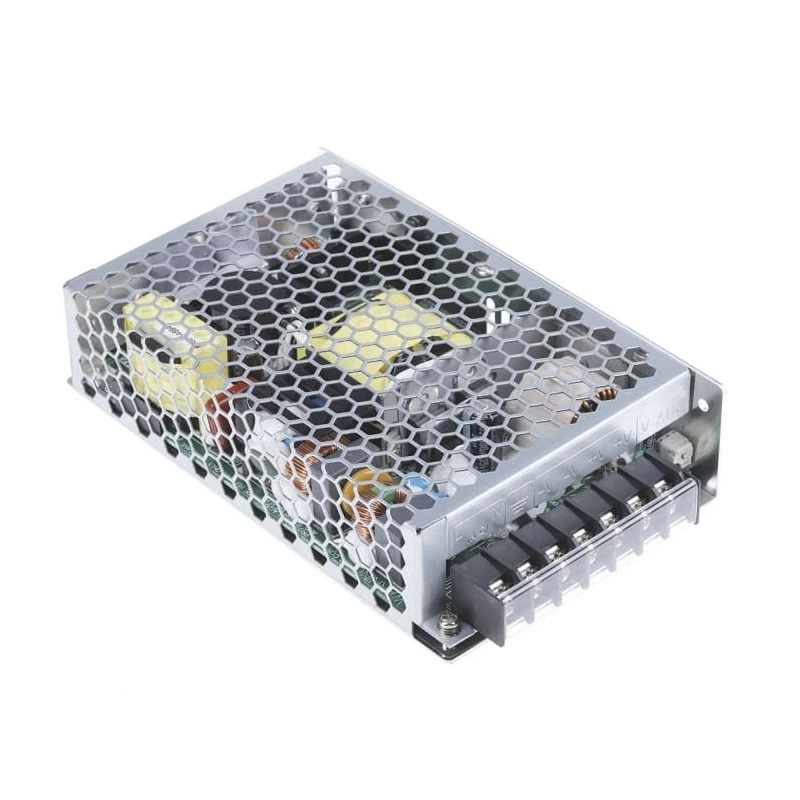

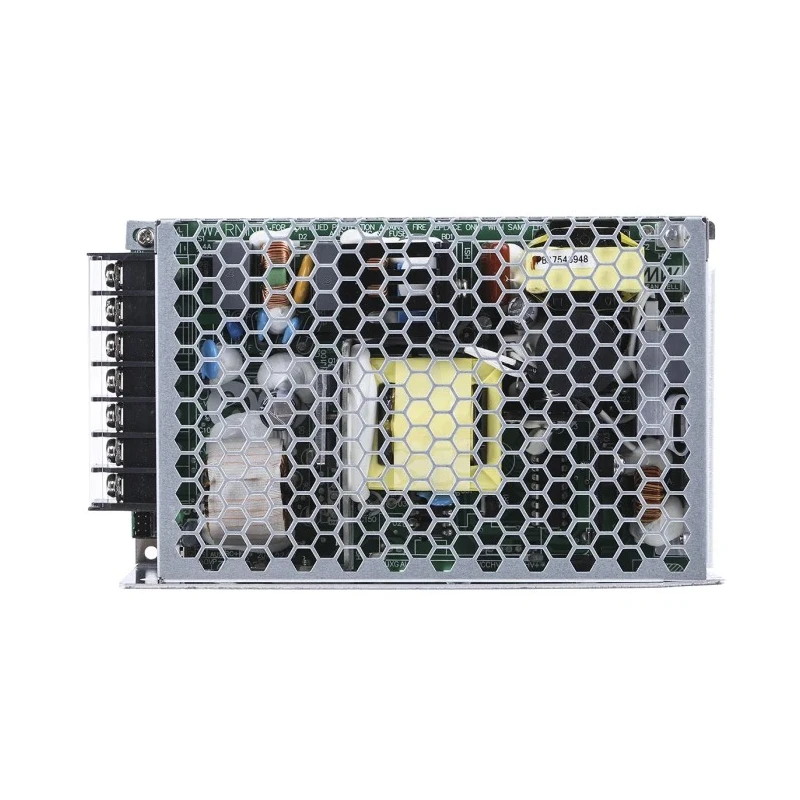

Mean Well HRP-150-24 Single Output Switching Power Supply, 24V DC, 156W, 85 - 264V AC Input, Chassis Mount HRP-150-24

The Mean Well HRP-150-24 is a robust single output embedded Switching Power Supply engineered for high-reliability industrial, electronics, laboratory, and automation applications. With a chassis-mount form factor and a low profile of just 38mm height, this power supply delivers a consistent 24V DC output at a rated power of 156W, making it ideal for systems requiring stable and efficient power conversion.

Designed to operate from universal AC power, the HRP-150-24 accepts input voltages ranging from 85V AC to 264V AC (or 120V DC to 370V DC), ensuring versatile compatibility across global installations. It features high efficiency (88%), resulting in reduced heat dissipation and energy savings, and includes a built-in active power factor correction to meet critical EMC requirements.

With a maximum output current of 6.5A, the power supply can reliably drive demanding loads. Protective functions include constant current limiting, short-circuit protection, overload, overvoltage, and over-temperature safeguards, supporting safe operation in professional environments. The remote sense feature compensates for voltage drops across cable lengths, ensuring the delivered voltage remains stable at the load.

The HRP-150-24's construction incorporates approvals from UL60950-1, TUVEN60950-1, EAC, and EN61000 standards for EMC and safety compliance, making it suitable for regulated industrial sectors. It is capable of withstanding surge inputs up to 300V AC for 5 seconds and offers a long operational life with no-load power consumption below 0.5W.

The compact dimensions (159mm length, 97mm width, 38mm depth) and moderate weight (610g) facilitate easy integration into racks, enclosures, or control panels. The wide operating temperature range from -40°C to +70°C ensures robust performance even in harsh environments.

Single output, chassis-mount switch mode power supply. Provides 24V DC output voltage with 6.5A maximum output current. Wide universal input range: 85 - 264V AC, supporting 120 - 370V DC. High efficiency up to 88% for energy-saving operation.

Built-in active PFC, constant current limiting, and remote sense functions. Overload, overvoltage, short-circuit, and over-temperature protection. Low profile design (1U height), suitable for compact installations. Operating temperature range from -40°C to 70°C.

Certified to UL, TUV, EAC, EN61000 standards for EMC and safety.

Industrial use cases: automation cabinets, instrumentation panels, process control, laboratory equipment, electronic manufacturing, commercial devices, and other applications requiring reliable DC power conversion. Explore more Mean Well switching power solutions and industrial power supply categories on EnvMart.
