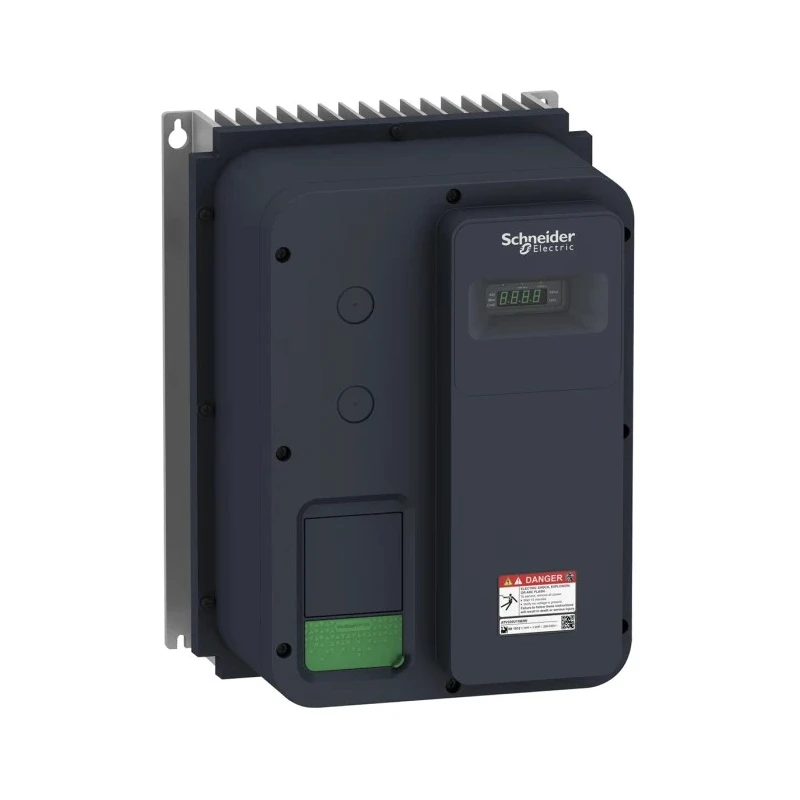

Schneider Electric ATV320U22M2W Variable Speed Drive, 2.2 kW, 1 Phase, 240V AC, IP66, 11A, ATV320 Series

The Schneider Electric ATV320U22M2W Variable Speed Drive is a robust, high IP-rated drive designed for material handling, packaging, and automation environments where reliability is paramount. Built for single-phase synchronous and asynchronous motors, it delivers a rated power output of 2.2 kW from a supply voltage of 200 to 240V AC, making it suitable for diverse industrial applications requiring precision motor control.

ATV320 Series drives are engineered to streamline integration and improve performance for OEMs and advanced manufacturing users. This model is housed in a durable enclosure with an IP66 protection rating, allowing for washable conditions and operation in dusty or chemically exposed environments. The drive is delivered without an external fan and includes an embedded EMC C2 filter for minimizing electrical noise and ensuring compliance with industrial standards.

Connectivity is a core strength of this drive, featuring Modbus and CANopen protocols accessible via an RJ45 connector on the front panel. Integration into automation systems is seamless, and the drive supports configuration through SoMove software and compatibility with EcoStruxure Machine, allowing for effective programming, commissioning, and control logic setup.

Mechanical installation is flexible with wall-mount and side-by-side arrangements, enabling easy adaptation to various machine layouts. The drive's safety features include multiple configurable functions for compliance with safety requirements, and it is certified to international standards ranging from IEC and UL to GOST and REACH.

This Altivar Machine ATV320 drive is well-suited for conveyors, carton packers, gantry cranes, woodworking machinery, metal processing, fans, and the food and beverage industry. The drive delivers dynamic accuracy in start/stop operations, maintains stable performance across a temperature range from -10°C to 60°C, and supports open loop motor control at low speeds.

Physically, the drive measures 250mm in length, 235mm in width, and 340mm in depth, with sturdy construction for challenging environments. Communication and automation architectures supported include EtherNet/IP, Modbus TCP, Profinet EtherCAT, Profibus, CANopen, and DeviceNet interfaces.

Industrial, laboratory, HVAC, manufacturing, and commercial sectors benefit from its reliability, ease of integration, and proven robust motor control. The ATV320U22M2W stands as an ideal solution for demanding material handling and processing applications where uptime and safety are essential.

Provides advanced motor control for asynchronous and synchronous motors, delivering 2.2 kW output. Single-phase operation with 240V AC supply and IP66 protection rating for harsh environments. Integrated Modbus and CANopen communication for connectivity and system integration.

Supports applications from conveyors, packaging, and hoisting to fans and processing equipment. Easy installation with wall-mount design and side-by-side configuration capabilities. Wide operating temperature range and embedded EMC C2 filter for stable performance.

Safety functions configured via SoMove software and compatibility with EcoStruxure Machine. Explore more industrial drives and Schneider Electric solutions in EnvMart's Power Supply & Distribution category.
