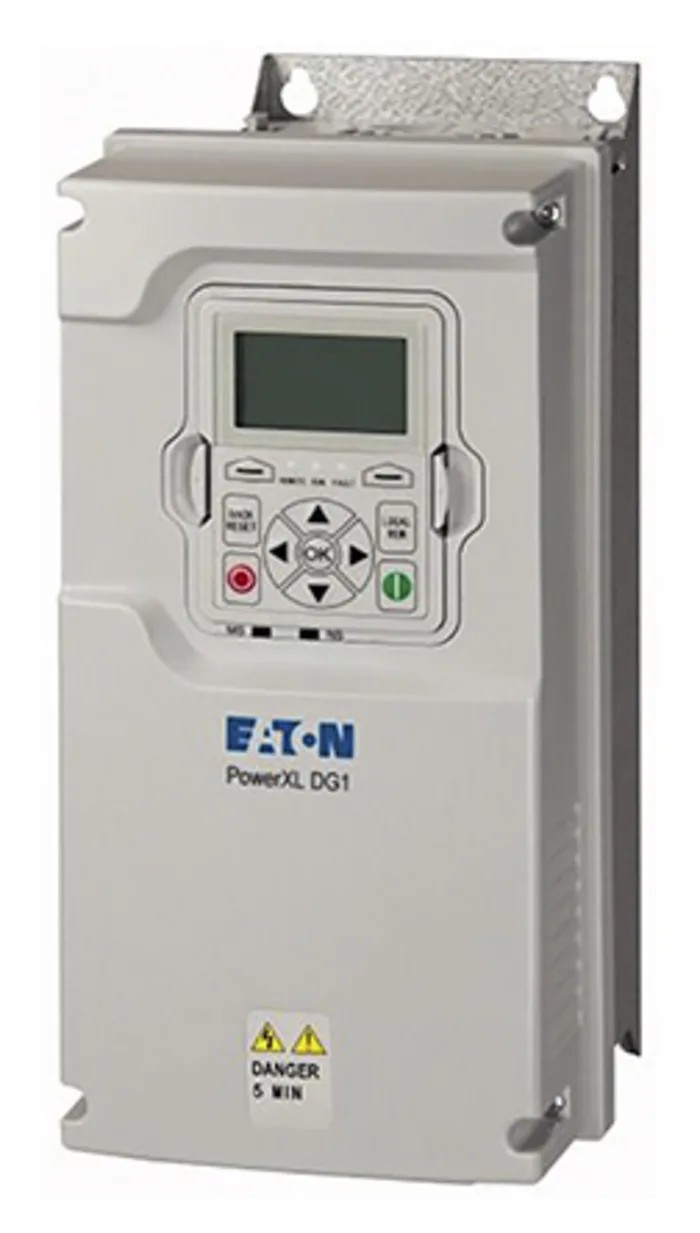

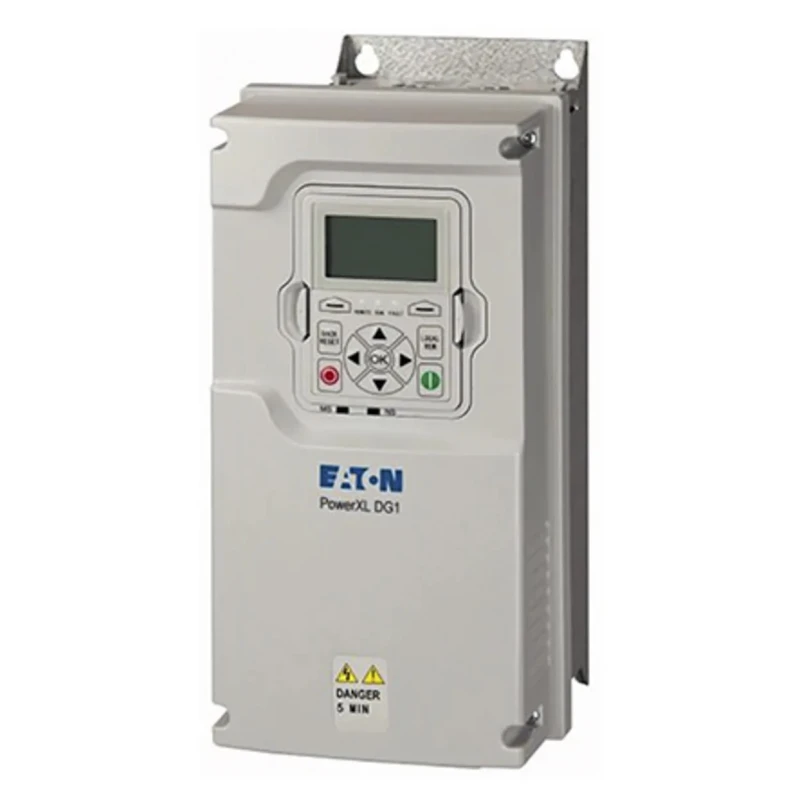

Eaton DG1 Series Inverter Drive 7.5 kW, 3 Phase, Max 500V, 23A, Panel Mount, IP21, 9702-2004-00P DG1-34016FB-C21C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Model | 9702-2004-00P DG1-34016FB-C21C |
| IP Rating | IP21 |
| Drive Type | Variable Frequency |
| Mount Type | Panel |
| Overall Length | 167.8mm |
| Series | DG1 |
| Overall Width | 419.1mm |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 400Hz |
| Minimum Operating Temperature | -30°C |
| Number of Phases | 3 |
| Maximum Output Current | 23A |
| Standards/Approvals | UL, EAC, cUL, Ukr SEPRO, RCM, ISO 9001, CE, RoHS |
| Maximum Supply Voltage | 500V |
| Overall Depth | 244.7mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor |
Key Features
- Designed for three-phase, 7.5 kW asynchronous motor control with maximum output current of 23A.
- Supports supply voltages between 380V and 500V, output frequency up to 400Hz.
- Panel mount enclosure compactly fits industrial installations, IP21-rated for protection.
- LCD display and keypad provide user-friendly operation and configuration.
- Built-in EMI/RFI filters, DC choke, surge protection, and brake chopper circuit ensure reliability.
- Offers V/Hz and sensorless vector speed control for precise performance.
- Extensive onboard communications and I/O optimize integration with control systems.
- Conforms to UL, EAC, cUL, Ukr SEPRO, RCM, ISO 9001, CE, RoHS standards.
Product Description
The Eaton DG1 Series Inverter Drive 9702-2004-00P DG1-34016FB-C21C is engineered for reliable and efficient variable frequency control of industrial asynchronous motors up to 7.5 kW. Designed for use with three-phase systems, it provides precise adjustment of motor speed and torque suitable for applications such as pumps, fans, and conveyor systems across manufacturing and commercial operations.
This model features a robust panel-mount enclosure rated IP21, supporting supply voltages from 380V to 500V and delivering a maximum output current of 23A. The integrated LCD display and keypad make configuration and monitoring straightforward, while advanced V/Hz and sensorless vector speed controls ensure optimal motor performance.
The DG1 drive includes built-in EMI/RFI filters, a DC choke, input surge protection, and a brake chopper circuit, offering enhanced protection and minimizing downtime. Its compact design with onboard communication and I/O flexibility supports seamless integration with industrial control systems.
Conformal coated boards, durable metal power section, and built-in active energy control algorithms contribute to long-term reliability and energy savings. This drive meets stringent international standards including UL, EAC, cUL, Ukr SEPRO, RCM, ISO 9001, CE, and RoHS, facilitating deployment in regulated environments.
Industrial applications served include HVAC, water treatment, material handling, and general automation, making it ideal for high-performance requirements. Versatile compatibility with asynchronous motors expands usage possibilities.
To discover more industrial Inverter Drives and Eaton automation solutions, browse the EnvMart Power Supply & Distribution category or the Eaton brand catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 7.5 kW, designed for three-phase asynchronous motor control.
The maximum output current of this inverter drive is 23A.
It supports supply voltages between 380V and 500V.
The maximum output frequency is 400Hz.
It features a panel mount enclosure rated IP21, suitable for industrial installations.
The operating temperature range is from -30°C to 50°C.
This model is compatible with asynchronous motors.
It includes built-in EMI/RFI filters, a DC choke, input surge protection, and a brake chopper circuit.
It conforms to UL, EAC, cUL, Ukr SEPRO, RCM, ISO 9001, CE, and RoHS standards.
The integrated LCD display and keypad provide user-friendly operation and configuration.
It is suitable for applications such as pumps, fans, and conveyor systems in manufacturing and commercial operations.
The overall dimensions are 167.8mm in length, 419.1mm in width, and 244.7mm in depth.
