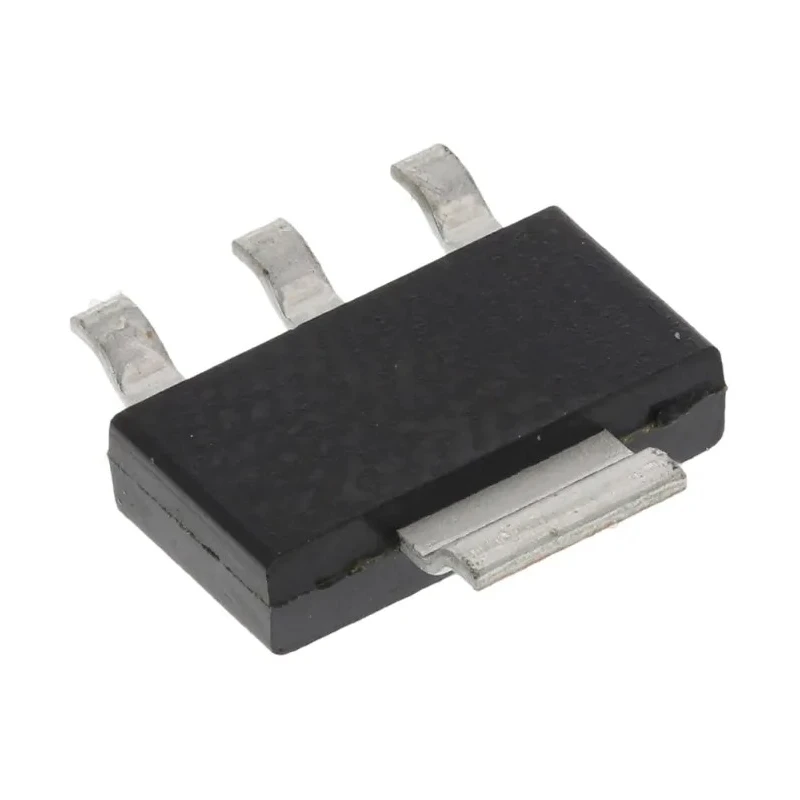

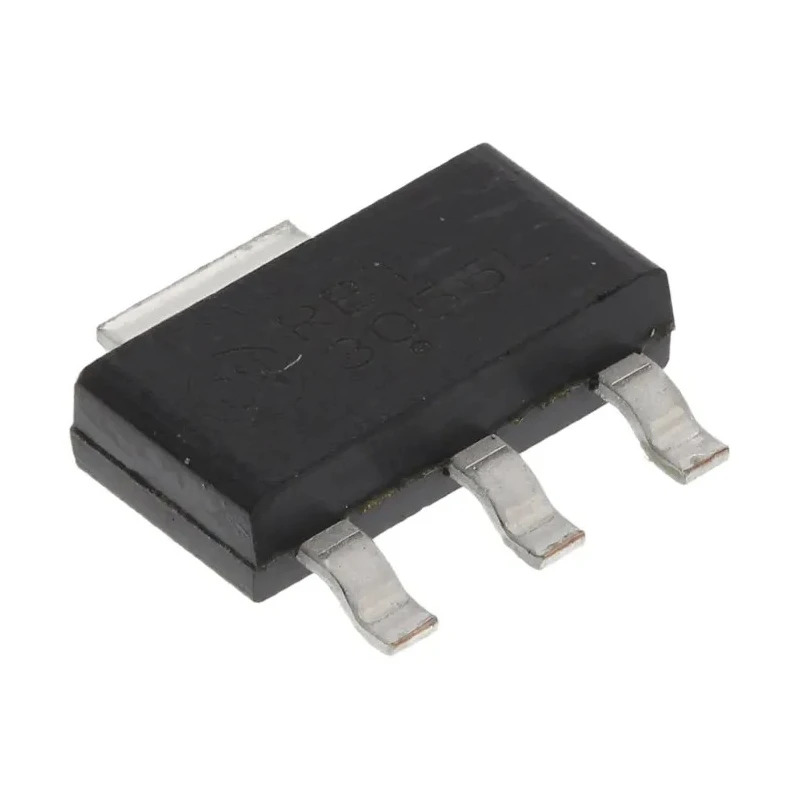

onsemi N-Channel Power MOSFET, 3A, 60V, Enhancement Mode, SOT-223, 4-Pin, Surface Mount NTF3055L108T1G

The onsemi NTF3055L108T1G N-Channel MOSFET is a robust semiconductor device engineered for efficient switching and amplification in electronic circuits. Featuring an enhancement mode channel, it supports a maximum drain current of 3A and operates with a drain-source voltage of up to 60V. Its low drain-source resistance of 120 milliohms contributes to high efficiency and minimal heat generation, making it well-suited for a variety of power management and motor control applications.

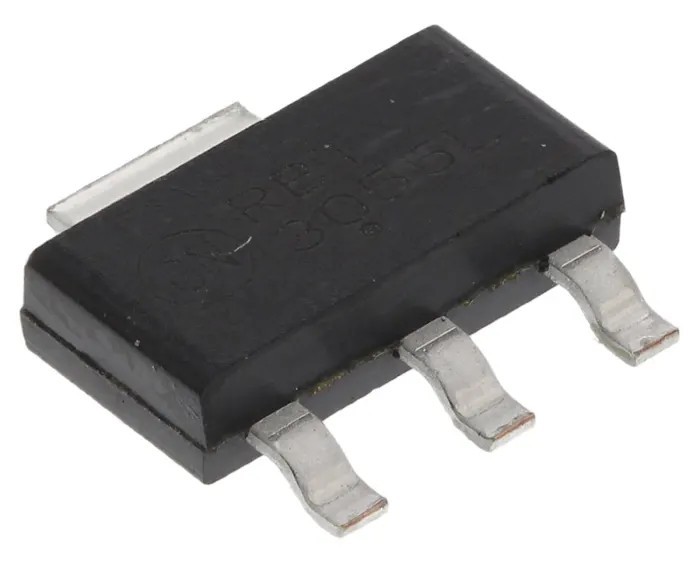

This MOSFET is housed in a compact SOT-223 surface mount package, with a four-pin configuration that enables easy integration into PCBs. The device is designed to withstand challenging environments, thanks to its wide operating temperature range from -55°C to 175°C. It is compliant with AEC-Q101 automotive standards, ensuring high reliability and performance in automotive and industrial settings.

The NTF3055L108T1G features a typical gate charge of 7.6nC at Vgs, and a maximum gate-source voltage rating of 15V. Forward voltage is specified at -1.2V, supporting efficient switching characteristics. Its power dissipation capacity is rated at 2.1W, with surface-mount construction simplifying assembly in high-density electronic designs. Combined with a height of 1.57mm, length of 6.5mm, and width of 3.5mm, the device is ideal where space savings are critical.

Typical applications include DC-DC conversion, motor drive, load switching, and signal amplification in industrial, automotive, consumer electronics, and IoT environments. Engineers value its reliability, compact form, and high operating range for both prototyping and production-scale deployments. The device is also suitable for PCB assembly requiring efficiency in heat dissipation and footprint conservation.

N-channel enhancement mode MOSFET designed for power and signal applications. Maximum drain current of 3A and 60V drain-source voltage rating. SOT-223 package with four pins, suitable for surface mounting. Low Rds(on) for energy efficiency and reduced heat dissipation.

Wide operating temperature range from -55°C to 175°C provides versatility. Automotive grade AEC-Q101 compliance ensures reliability in harsh environments. Compact size helps with high-density circuit board layouts. Suitable for use in DC-DC converters, motor drivers, and general load control circuits.
