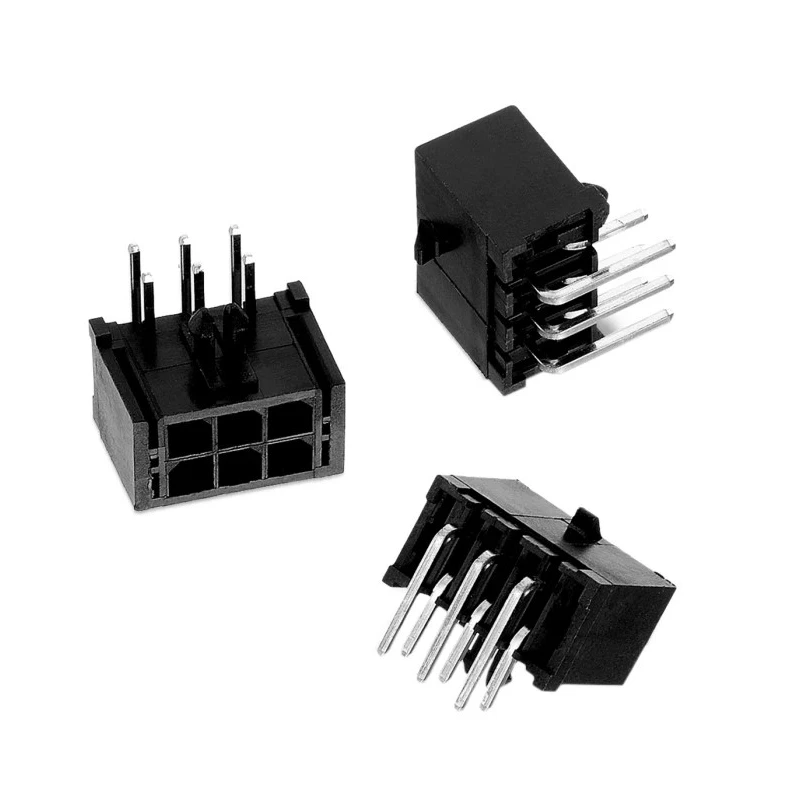

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 12 Contacts 3mm Pitch 2 Row Shrouded MPC3

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 12 Contacts 3mm Pitch 2 Row Shrouded MPC3

Name: Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header 12 Contacts 3mm Pitch 2 Row Shrouded MPC3
Brand: Wurth Elektronik
SKU: 379368
Price: 1.05 USD
Availability: InStock



Category PCB Headers Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Wurth Elektronik
Orientation	Right Angle
Current	5A
Model	MPC3
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	WR-MPC3
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	3mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.2mm

Key Features

Current rating of 5 amps suitable for various electronic applications.
Housing constructed from durable Liquid Crystal Polymer material.
The connector is shrouded providing secure mating and protection.
Contacts are made of copper alloy with tin plating ensuring excellent conductivity.
Right angle orientation with a tail pin length of 3.2 mm for through-hole mounting.
Operating temperature range from -40°C up to 105°C ensures versatility.
Designed to mate with WR-MPC3 female dual row receptacle style connectors.

Product Description

Wurth Elektronik MPC3 Series Right Angle Through Hole PCB Header is a high-quality connector designed with 12 contacts spaced at a 3 mm pitch arranged in 2 rows. The connector features a shrouded design with reliable board locks enhancing connection security in demanding electronics and power applications.

The header uses a robust liquid crystal polymer housing material with UL94-V0 black PA9T rating ensuring flame resistance and mechanical stability. Contacts are copper alloy with tin plating which ensures excellent solderability and signal integrity for wire-to-board connections.

Rated for 5 amperes current and 250 volts, it is suitable for industrial, electronic manufacturing, and prototype PCB assembly applications. The right angle mounting orientation with a 3.2 mm tail pin length allows through-hole soldering for secured PCB integration.

Operating temperature ranges from -40°C to 105°C allow this header to be used in a variety of environments including industrial control systems, automotive electronics, and consumer devices.

Current rating of 5 amps suitable for various electronic applications. Housing constructed from durable Liquid Crystal Polymer material. The connector is shrouded providing secure mating and protection. Contacts are made of copper alloy with tin plating ensuring excellent conductivity.

Right angle orientation with a tail pin length of 3.2 mm for through-hole mounting. Operating temperature range from -40°C up to 105°C ensures versatility. Designed to mate with WR-MPC3 female dual row receptacle style connectors.

Voltage rating is 250 volts suitable for typical power connector requirements.

This Wurth Elektronik WR-MPC3 header series is widely used in power connectors for PCB assemblies, control panels, and embedded electronics in manufacturing, automation, industrial control, and power distribution sectors.
