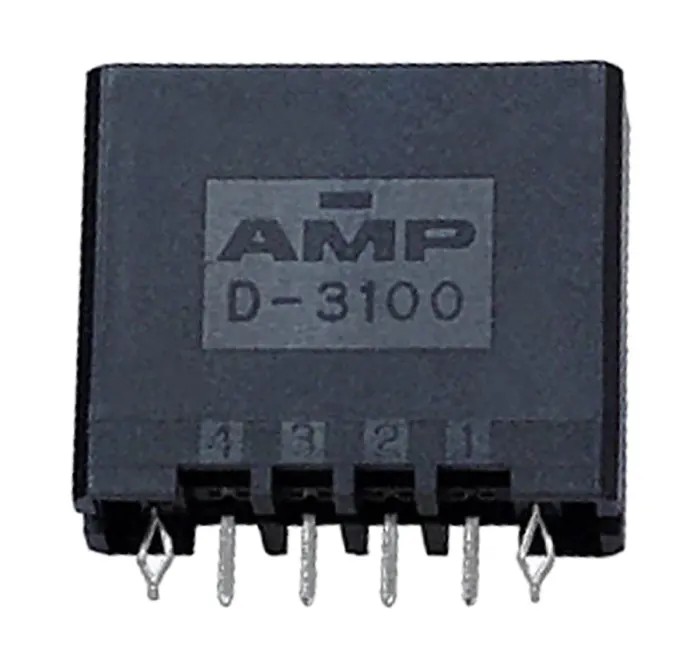

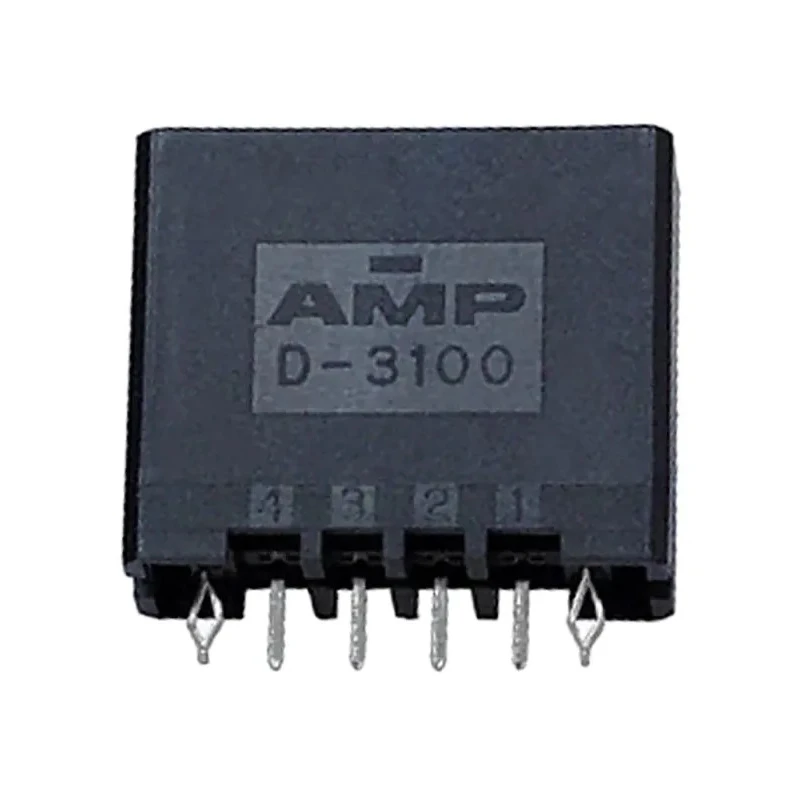

TE Connectivity Dynamic 3000 Series Straight Through Hole PCB Header, 4 Contacts, 3.81 mm Pitch, 1 Row, Shrouded 1-178314-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 15A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | Dynamic 3000 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-8000Brand: TE ConnectivityManufacturers Part No.: 1-178314-2 |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with glass filled polyester housing for durability.
- Contacts made of copper alloy plated with gold for reliable conductivity.
- Designed as a straight orientation with through-hole mount type.
- Suitable for operating temperatures ranging from -55°C to 105°C.
- Rated for 15A current and 250V voltage for secure electrical performance.
- Termination is solder type with male contact gender for standard PCB assembly.
- Shrouded design protects contacts and improves connection stability.
- Compatible with Dynamic D-3100 Series for enhanced retention and stability.
Product Description
TE Connectivity 1-178314-2 Dynamic 3000 Series Straight Through Hole PCB Header features a robust and reliable design for wire-to-board electrical connections. This product has 4 contacts arranged in a single row with a 3.81 mm pitch and a shrouded housing crafted from glass filled polyester, ensuring mechanical strength and durability.
The contacts are constructed from copper alloy and plated with gold to provide excellent conductivity and corrosion resistance. The header employs a male contact gender with solder termination type, suitable for through-hole mounting on PCBs with recommended thickness between 1.0 and 1.6 mm.
Designed for industrial and commercial applications, this PCB header supports currents up to 15A and voltages up to 250V. Its operating temperature range is from -55°C to 105°C, making it fit for use in various environments requiring robust connectors.
The shrouded design offers additional protection to the contacts and provides connection stability, especially when mated with compatible Dynamic D-3100 Series housings, enhancing the retention and durability of the connector system.
This PCB header is ideal for electronics manufacturing, power connectors assemblies, industrial equipment, and other applications where secure electrical interconnection is critical.
Constructed with glass filled polyester housing for durability. Contacts made of copper alloy plated with gold for reliable conductivity. Designed as a straight orientation with through-hole mount type. Suitable for operating temperatures ranging from -55°C to 105°C.
Rated for 15A current and 250V voltage for secure electrical performance. Termination is solder type with male contact gender for standard PCB assembly. Shrouded design protects contacts and improves connection stability.
Compatible with Dynamic D-3100 Series for enhanced retention and stability. Recommended PCB thickness between 1.0 to 1.6 mm for optimal fitment. Explore the breadth of TE Connectivity products and find reliable connectors for your electronics projects at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 15A.
It has a voltage rating of 250V.
The pitch of the contacts is 3.81 mm.
The housing is made from glass filled polyester, while the contacts are constructed from copper alloy and plated with gold.
It operates within a temperature range of -55°C to 105°C.
This header features 4 contacts arranged in a single row.
It employs a solder termination type with male contact gender.
Yes, it is compatible with the Dynamic D-3100 Series for enhanced retention and stability.
The recommended PCB thickness for optimal fitment is between 1.0 and 1.6 mm.
It is designed for through-hole mounting on PCBs.
The contacts are designed in a straight orientation.
The country of origin for this PCB header is India.
