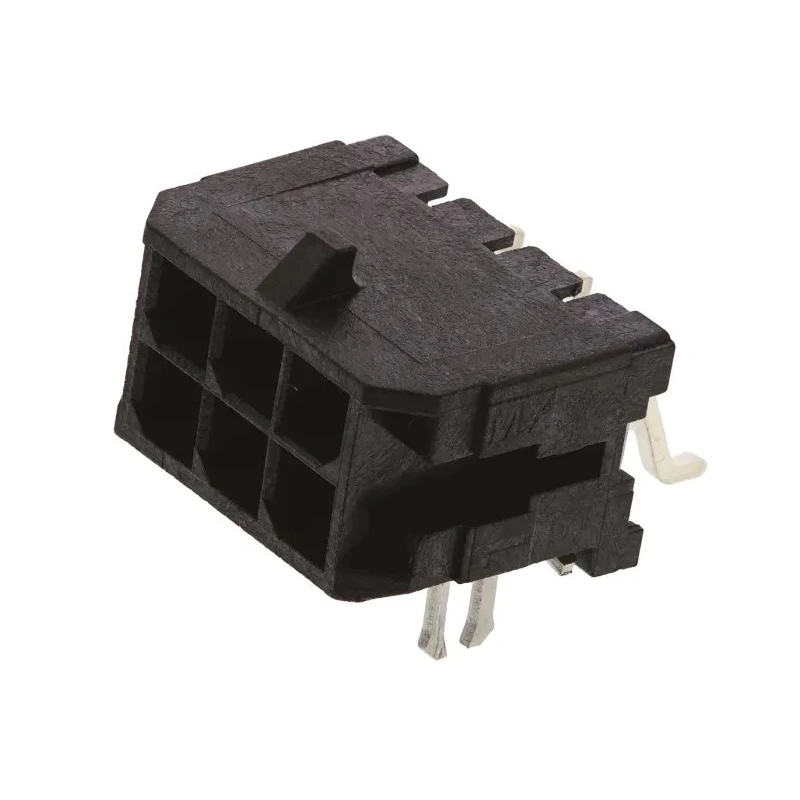

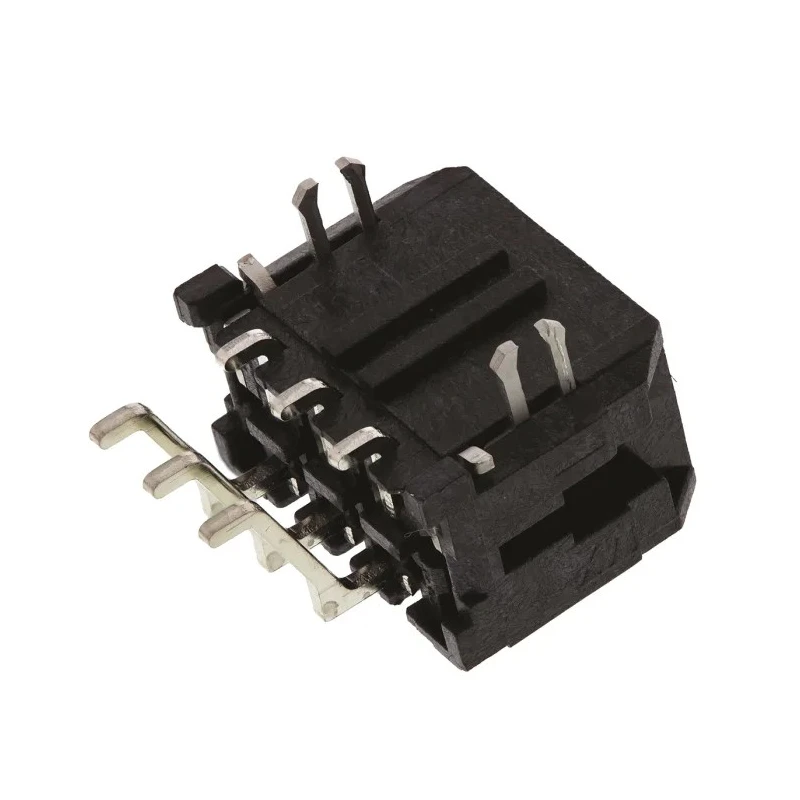

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contact 3 mm Pitch 2 Row Shrouded 43045-0606
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Pay online using | Or choose to pay later via bank transfer |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact dual row micro-fit header with 3 mm pitch for tight PCB layouts.
- Supports up to 5A current carrying capacity within small footprint.
- Shrouded housing with positive latching prevents accidental disconnection.
- Thermoplastic housing withstands high temperature reflow soldering processes.
- Right angle orientation convenient for surface mount PCB applications.
- Brass male contacts plated with tin for reliable electrical connection.
- Metal press-fit retention clips secure connector firmly to PCB.
- Operating temperature range from -40°C to 105°C suitable for varied environments.
Product Description
Molex 43045-0606 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a high-performance wire-to-board connector featuring 6 male contacts arranged in two rows with a 3 mm pitch. The shrouded housing is thermoplastic material rated to withstand high temperatures up to 265°C during IR reflow soldering, ensuring durability and reliable connections in demanding manufacturing processes.
Designed for compact power connector systems, this header supports a current capacity of 5A, one of the highest for such a small footprint. The right angle surface mount design facilitates efficient PCB space utilization and easy assembly. The connector incorporates metal press-fit retention clips guaranteeing stable PCB retention and preventing dislodgement during operation.
Molex’s positive latching mechanism with a locking ramp on the housing secures mating connectors to prevent accidental disconnection in applications such as industrial machinery, telecommunications equipment, consumer appliances, medical devices, and solar power systems.
The contacts are brass with tin plating providing corrosion resistance and consistent electrical performance. This header supports a wide operating temperature range from -40°C to 105°C, suitable for diverse environments including harsh industrial conditions.
Compact 3 mm dual row pitch allows dense wiring on PCBs. High current capacity of 5A meets demanding power distribution needs. Thermoplastic UL 94V-0 housing withstands IR reflow solder temperatures. Metal press-fit clips provide secure, vibration-resistant PCB mounting.
Right angle male contacts ensure reliable surface mount connection. Positive latching ramp prevents accidental connector disconnections. Wide temperature range −40°C to 105°C supports diverse industrial uses.
This PCB header is manufactured in Mexico and conforms to industry standards though no specific certifications are declared. It is an ideal choice for designers looking for a compact, robust connector solution for power distribution and signal integrity in electronic assemblies.
Explore more Molex PCB Headers and connectors on EnvMart for reliable, industrial-grade components for your manufacturing and assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current carrying capacity of 5A, making it suitable for compact power connector systems.
The contacts are arranged with a pitch of 3 mm, allowing for dense wiring on PCBs.
It features a right angle orientation, which is convenient for surface mount PCB applications.
The housing is made from thermoplastic, while the contacts are brass plated with tin for reliable electrical connections.
It operates within a temperature range of -40°C to 105°C, suitable for diverse environments including harsh industrial conditions.
This unit has 6 male contacts arranged in two rows.
It uses a solder termination type, which is common for PCB headers.
It incorporates metal press-fit retention clips that provide secure, vibration-resistant mounting to the PCB.
This model is rated for a voltage of 250V, making it suitable for various electrical applications.
It belongs to the Micro-Fit 3.0 series, known for its compact design and high performance.
The connector is manufactured in Mexico, ensuring compliance with industry standards.
It is a wire-to-board connector system, suitable for various electronic assembly applications.
