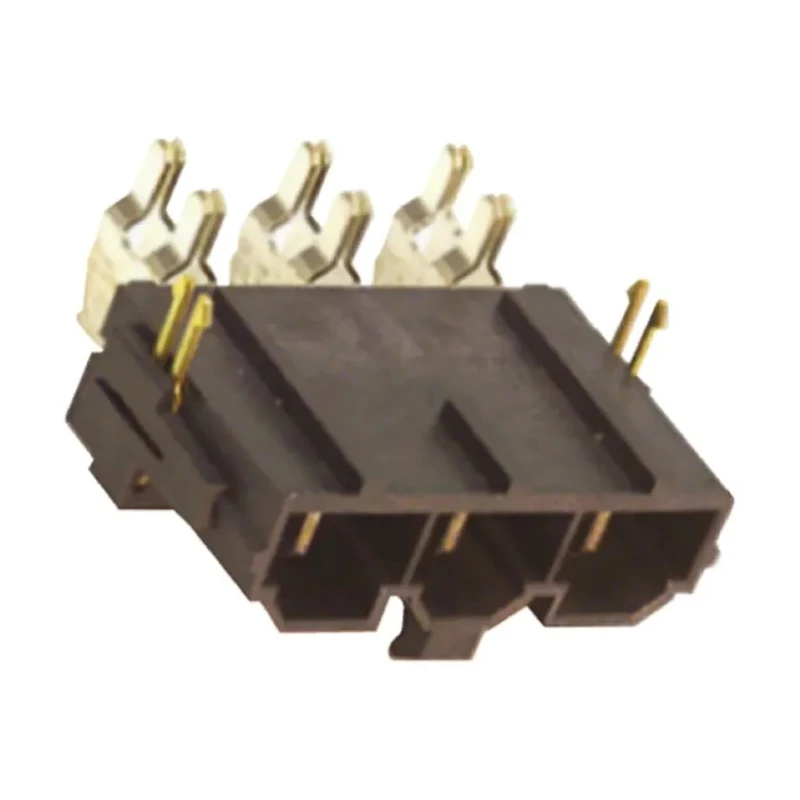

Molex Mini-Fit Sr Series Right Angle Through Hole PCB Header 4 Contacts 10 mm Pitch 1 Row Shrouded 42820-4213

Molex 42820-4213 Mini-Fit Sr Series Right Angle Through Hole PCB Header is a high-performance connector designed for wire-to-board applications. Featuring 4 gold-plated brass contacts and a robust thermoplastic housing, this shrouded connector ensures secure and reliable electrical connections on printed circuit boards with a 10 mm pitch and single row configuration.

Engineered for durability, the header supports a current rating of 50A and voltage rating up to 600V, allowing it to withstand demanding industrial and electronic environments. Its operating temperature range of -40°C to 105°C makes it ideal for use in harsh conditions common in manufacturing, power electronics, and commercial equipment.

The through-hole mount type design enhances mechanical stability on PCBs, and the right-angle orientation facilitates optimized circuit board layouts and cable management. The solder termination type ensures consistent electrical conductivity and mechanical strength.

Molex’s Mini-Fit Sr Series headers include features such as metal PCB retention clips and pre-assembled male contacts, providing ease of assembly and dependable performance. This connector series accommodates various PCB thicknesses, making it suitable for diverse electronic device manufacturing and repair needs.

Utilizes a 1-row, shrouded design for reliable board connections. Supports a current rating of 50A for robust electrical performance. Housing is made from durable thermoplastic material ensuring long service life. Gold-plated brass contacts provide excellent conductivity and corrosion resistance.

Designed for through-hole mounting for secure PCB installation. Operates efficiently between -40°C and 105°C for varied environments. Accommodates wire-to-board connector system applications. Termination type is solder ensuring strong mechanical and electrical bonds.

Rated voltage of 600V, suitable for power electronics and industrial equipment. The right-angle orientation optimizes PCB space and cable routing.

This Molex Mini-Fit Sr Series PCB header is widely used across industrial manufacturing, electronic components assembly, HVAC systems, and power distribution applications requiring dependable PCB connectors. Available packaging options facilitate both standard and high-volume production efficiency.
