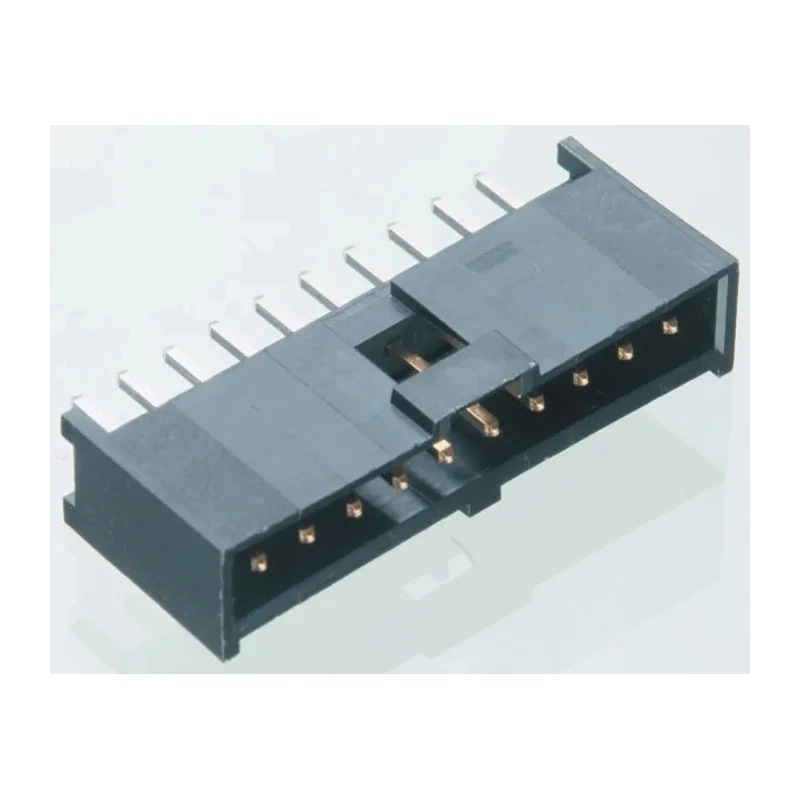

Brad from Molex C-Grid III Series Straight Through Hole PCB Header 12 Contacts 2.54 mm Pitch 1 Row Shrouded 90136-1212

Brad from Molex 90136-1212 C-Grid III Series Straight Through Hole PCB Header is a high-quality wire-to-board connector designed for electronic applications demanding reliable electrical connections and mechanical strength. Its straight orientation with 12 male contacts arranged in one row at a 2.54 mm pitch facilitates easy and efficient PCB integration. The shrouded housing made of polyester provides superior insulation and protection against environmental factors.

Rated for 3 amps current and 350 volts voltage, this header supports moderate power applications while maintaining safety standards. Brass contacts plated with gold ensure excellent conductivity and corrosion resistance, extending the connector life span even in challenging conditions.

Operating over a temperature range from -55°C to 125°C, this connector is suitable for industrial, automotive, and power electronics environments that require durability under thermal stress. The through-hole mount type, complemented by a tail pin length of 2.9 mm and mating pin length of 6.75 mm, allows for secure soldering and mating performance.

This product is ideal for manufacturing, testing, and repair facilities requiring precision PCB interconnections with sturdy locking capabilities through its straight locking header design. Its compatibility with the Molex C-Grid III range facilitates flexible connectivity solutions in various electronic assembly lines and systems.

The product is new, sourced from India, making it reliable for procurement in Indian and global industrial markets. Designed for current up to 3 amps ensuring efficient electrical performance. Housing made from durable polyester materials providing thermal stability.

Gold-plated brass contacts enhance corrosion resistance and conductivity. Operating temperature range from -55°C to 125°C suitable for harsh environments. Features through-hole mount type with a tail pin length of 2.9 mm for secure soldering.

Voltage rating stands at 350 volts for robust application safety. Includes 6.75 mm mating pin length to ensure strong mechanical connection. Shrouded male connector system provides protection and orientation alignment. Explore extensive electronics components and power connectors with Brad from Molex on EnvMart for professional-grade PCB Headers and electronic assembly solutions.
