JAE MX34 Series Right Angle Through Hole PCB Header 5 Contact, 2.2 mm Pitch, 1 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

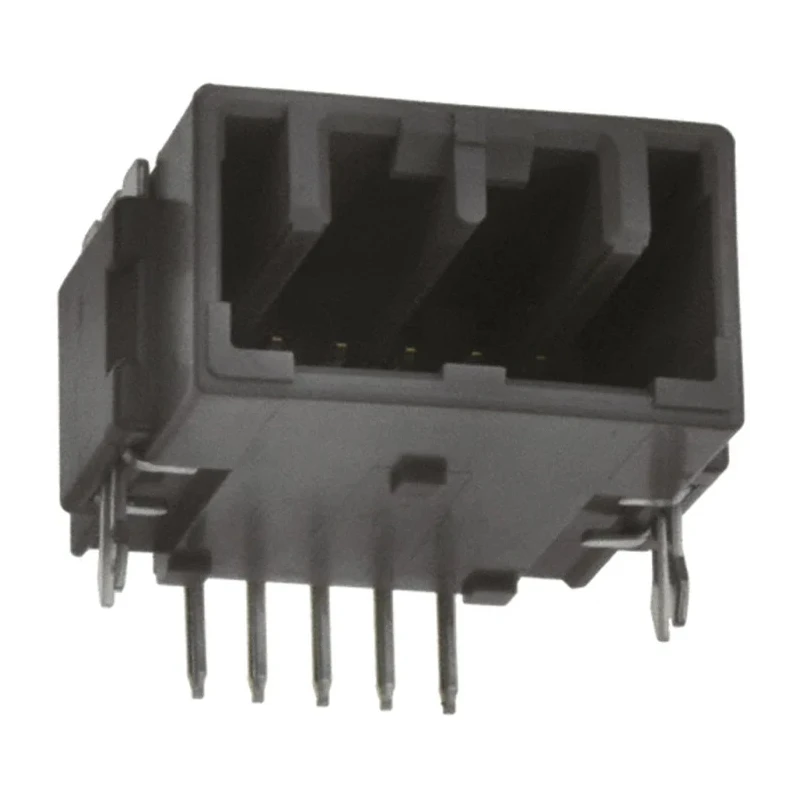

JAE MX34 Series Right Angle Through Hole PCB Header 5 Contact, 2.2 mm Pitch, 1 Row, Shrouded



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.2mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-8938Brand: JAEManufacturers Part No.: MX34005NF1
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This header features a shrouded design for enhanced protection and durability.
Constructed with brass contacts plated in tin ensuring reliable conductivity.
Single row configuration simplifies PCB layout and assembly.
Operates efficiently in temperatures ranging from -40°C to 85°C.
Through hole mount type provides secure and stable solder connections.
Supports a current rating of up to 3A per contact, suitable for automotive and industrial use.
Right angle orientation facilitates neat cable routing in tight spaces.
Glass filled syndiotactic polystyrene housing offers robust mechanical strength.

Product Description

JAE MX34005NF1 is a high-quality MX34 Series right angle through hole PCB header featuring 5 contacts with a 2.2 mm pitch and a single row layout. This shrouded connector is developed primarily for automotive applications requiring durable and reliable wire-to-board connections. The brass contacts are plated with tin to ensure consistent electrical performance and corrosion resistance.

The header’s glass filled syndiotactic polystyrene housing provides mechanical strength and insulating properties. Its right angle orientation allows for efficient cable management on PCBs, minimizing space requirements while maintaining secure connections through a through hole mount type.

Rated to carry currents up to 3A per contact and operational within a temperature range from -40°C to 85°C, this connector withstands challenging automotive environmental conditions. The connector system is designed to reduce mating forces, enhancing assembly workability.

The MX34005NF1 includes a shrouded design to protect the contacts from mechanical damage and dust ingress. It features solder termination for secure PCB mounting and maintains contact integrity with a robust locking mechanism.

This PCB header is ideal for automotive, industrial, and electronic equipment manufacturing where compact, reliable connections are paramount. Its construction materials and design provide excellent durability, performance, and ease of integration.

This header features a shrouded design for enhanced protection and durability. Constructed with brass contacts plated in tin ensuring reliable conductivity. Single row configuration simplifies PCB layout and assembly. Operates efficiently in temperatures ranging from -40°C to 85°C.

Through hole mount type provides secure and stable solder connections. Supports a current rating of up to 3A per contact, suitable for automotive and industrial use. Right angle orientation facilitates neat cable routing in tight spaces.

Glass filled syndiotactic polystyrene housing offers robust mechanical strength. Explore the extensive selection of PCB connectors and headers available at EnvMart to find compatible components and enhance your project designs.

Explore more products in our PCB Headers category.
