JAE MX34 Series Right Angle Through Hole PCB Header, 40 Contacts, 2.2 mm Pitch, 2 Row, Shrouded

Free Delivery in India | Lowest Global Shipping Charges

JAE MX34 Series Right Angle Through Hole PCB Header, 40 Contacts, 2.2 mm Pitch, 2 Row, Shrouded



Category PCB Headers Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Right Angle
Current	3A
Model	MX34
Mount Type	Through Hole
Housing Material	Glass Filled Syndiotactic Polystyrene
Contact Material	Brass
Series	MX34
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.2mm
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-8900Brand: JAEManufacturers Part No.: MX34040NF2
Contact Plating	Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
For MX34 socket housings see typical stock numbers	690-9852

Key Features

The connector features a shrouded design ensuring durability and secure connection.
Contact material is brass with tin plating providing reliable conductivity and resistance to corrosion.
The housing is made of glass-filled syndiotactic polystyrene ensuring mechanical strength and stability.
Rated for a current capacity of 3A and operates safely between -40°C to 85°C.
The connector uses a solder termination type suitable for through-hole mounting on PCBs.
Designed for wire-to-board connector system optimized for automotive use cases.
The 2-row layout reduces mating force and improves workability with a double locking mechanism for secure engagement.
The product includes a preset-type retainer preventing incomplete contact insertion and ensuring robust mechanical retention.

Product Description

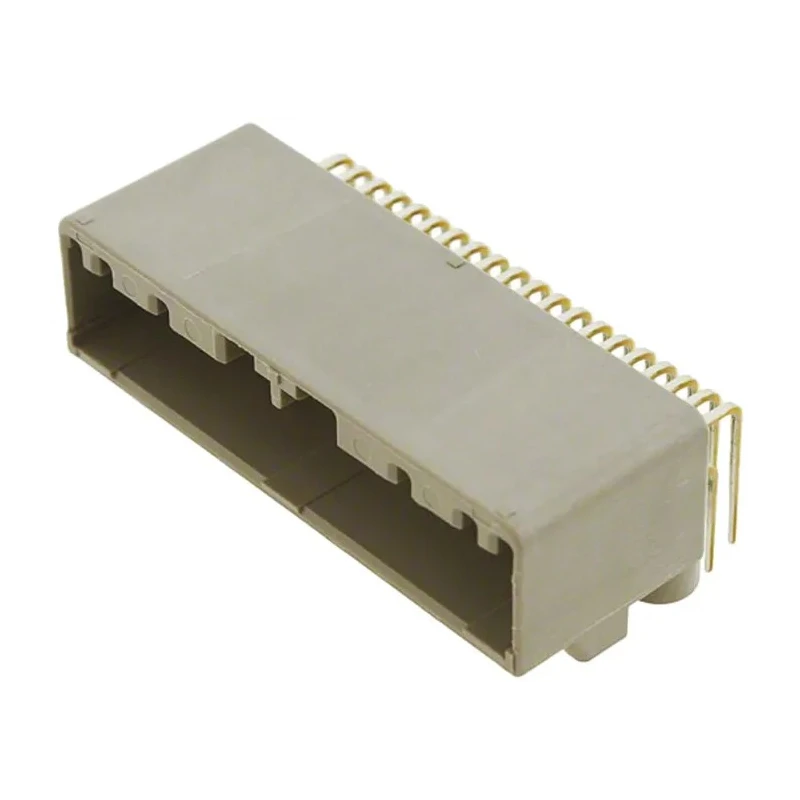

JAE MX34040NF2 is a high-quality right angle through hole PCB header connector part of the MX34 series, designed for demanding automotive and industrial electronics applications. It features 40 brass contacts plated with tin, arranged in 2 rows with a 2.2 mm pitch to facilitate compact and reliable PCB connections.

The housing is constructed from glass-filled syndiotactic polystyrene, ensuring excellent mechanical strength and durability under harsh environmental conditions. Its shrouded design protects the contacts and enhances the connector’s longevity.

This connector supports a current rating of 3 amperes and can safely operate within a temperature range from -40°C to 85°C, making it suitable for automotive and industrial environments. The connector uses a through-hole mounting type with solder terminations, providing robust and stable PCB attachment.

The MX34 series connectors incorporate a double locking mechanism and a preset-type retainer to prevent incomplete insertion and assure strong mechanical engagement. The contacts are highly resistant to twisting and incorporate a double leaf spring design that ensures consistent and durable electrical contact performance.

The connector is optimized for wire-to-board connections, widely used in automotive electronics and industrial equipment. Shrouded housing provides enhanced protection against external mechanical forces and environmental contaminants.

Durable brass contact material with tin plating ensures long-term reliable conductivity. Suitable for operating temperatures ranging from -40°C to 85°C. Designed to reduce mating and unmating forces below 80 N, enhancing ease-of-use and serviceability.

Preset-type retainer detects incomplete contact insertion for safety and quality assurance.

This PCB header is essential for applications requiring compact, reliable, and robust electrical connections in industrial and automotive domains. The connector enhances production efficiency by ensuring secure and durable wire-to-board contacts.

Explore the comprehensive range of PCB Headers and connectors in EnvMart’s Electronics & Electricals category to find ideal solutions for your PCB connection needs.
