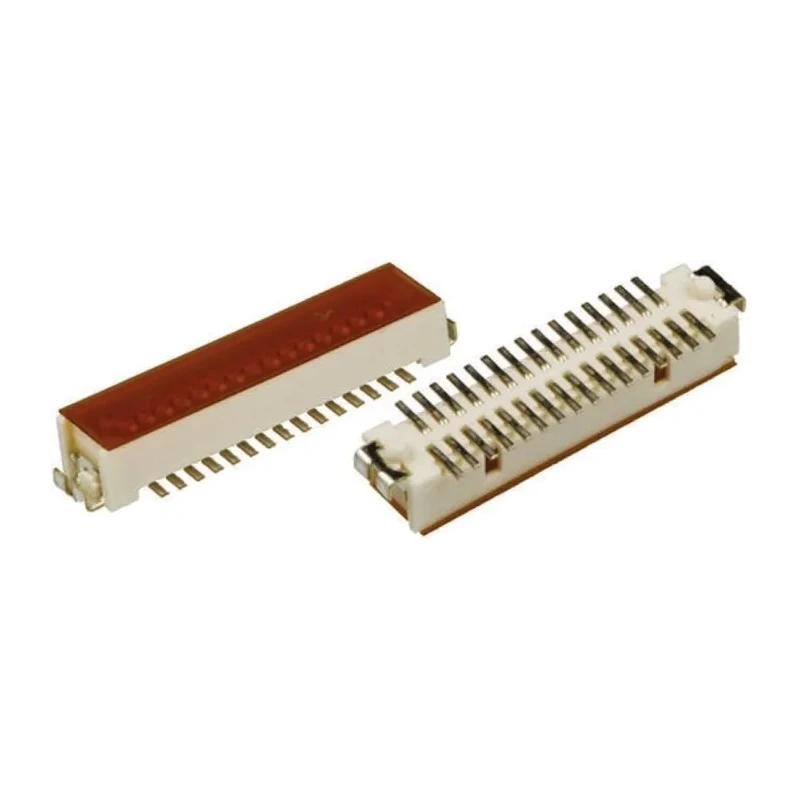

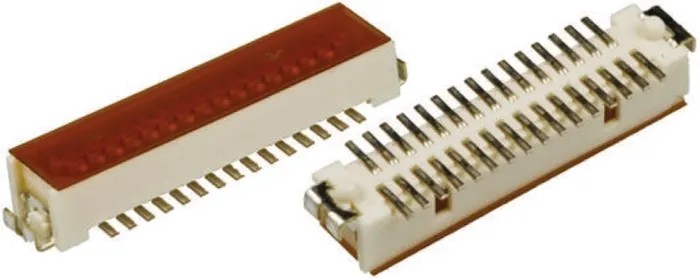

Hirose DF9 Series Straight Surface PCB Header, 31 Contact(s), 1 mm Pitch, 2 Row, Shrouded DF9-31P-1V(32)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-31P-1V(32) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1729Brand: HiroseManufacturers Part No.: DF9-31P-1V(32) |
| Contact Plating | Tin |
| Number of Contacts | 31 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Compact design compliant with VESA FPDI-1 standard interface.
- Trapezoidal mating interface prevents connector misinsertion.
- Easy lock mechanism ensures secure mating with tactile feedback.
- Mounting bosses facilitate placement during soldering process.
- Metal fittings provide secure PCB attachment and prevent solder joint peeling.
- Supports operating temperature range from -10°C to 60°C.
- Designed for board-to-board connection with 500mA current rating and 150V voltage rating.
- Constructed with polyamide housing, copper alloy contacts with tin plating.
Product Description
Hirose DF9-31P-1V(32) is a high-quality PCB header connector from the DF9 series, designed for board-to-board applications with a 1.0 mm pitch. This model features 31 male contacts arranged in two rows within a shrouded, straight surface mount housing made of durable polyamide.
It complies with the VESA FPDI-1 standard for flat panel display interfaces, ensuring compatibility and reliable performance in LCD displays and related electronic devices. The trapezoidal shaped mating interface prevents incorrect insertion, while an easy lock mechanism provides secure attachment confirmed by tactile feedback.
Additional mounting bosses aid in accurate positioning during soldering or manual placement. The SMT versions include metal fittings to secure the connector to the PCB and prevent solder joint damage due to mechanical stress.
This header operates efficiently within a temperature range from -10°C up to 60°C, supports current ratings up to 500mA, and withstands a maximum voltage of 150V. Contact material consists of copper alloy with tin plating, optimized for solder termination.
Typical applications include use in LCD displays for portable electronics, point-of-sale terminals, handheld measurement instruments, and other compact devices requiring reliable, space-saving PCB connections.
Compact compliant design for LCD connector applications. Prevents misinsertion with trapezoidal interface shape. Secure locking mechanism with tactile feedback. Sturdy mounting bosses for precise soldering. Metal fittings enhance SMT attachment strength.
Supports -10°C to 60°C operating temperature range. Rated for 500mA current and 150V voltage. Polyamide housing with copper alloy contacts. Tin plating ensures reliable solder terminations. Ideal for portable and handheld electronic equipment.
This product is categorized under Electronics & Electricals > Power Connectors > PCB Headers at EnvMart. Explore more connectors and PCB components in our comprehensive electronic components selection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 500mA.
It has a voltage rating of 150V.
The operating temperature range is from -10°C to 60°C.
This model features 31 male contacts arranged in two rows.
The housing is constructed from polyamide material.
It uses solder termination for connections.
Yes, it complies with the VESA FPDI-1 standard for flat panel display interfaces.
The pitch of the contacts is 1 mm.
The orientation of this connector is straight.
The contacts are made of copper alloy with tin plating.
Typical applications include use in LCD displays for portable electronics and handheld measurement instruments.
It includes mounting bosses for accurate placement during soldering and a trapezoidal mating interface to prevent misinsertion.
