Molex 42820 Series Right Angle Through Hole PCB Header, 6 Contacts, 10 mm Pitch, 1 Row, Shrouded 42820-6213

Free Delivery in India | Lowest Global Shipping Charges

Molex 42820 Series Right Angle Through Hole PCB Header, 6 Contacts, 10 mm Pitch, 1 Row, Shrouded 42820-6213

Name: Molex 42820 Series Right Angle Through Hole PCB Header, 6 Contacts, 10 mm Pitch, 1 Row, Shrouded 42820-6213
Brand: Molex
SKU: 368707
Price: 21.63 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Molex
Orientation	Right Angle
Current	50A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	42820
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	10mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.5mm

Key Features

Constructed with brass contacts plated in gold for excellent conductivity.
Rated for currents up to 50A, suitable for high power electronic applications.
Features a right-angle orientation and shrouded housing to ensure precise mating.
Designed for through-hole mounting with 3.5mm tail pin length for secure PCB soldering.
Operates reliably within a temperature range from -40°C to 105°C.
Supports wire-to-board connector system designed for 600V maximum voltage.
Single row configuration with 6 male contacts for effective electrical connection.
Thermoplastic housing material offers durability and insulation.

Product Description

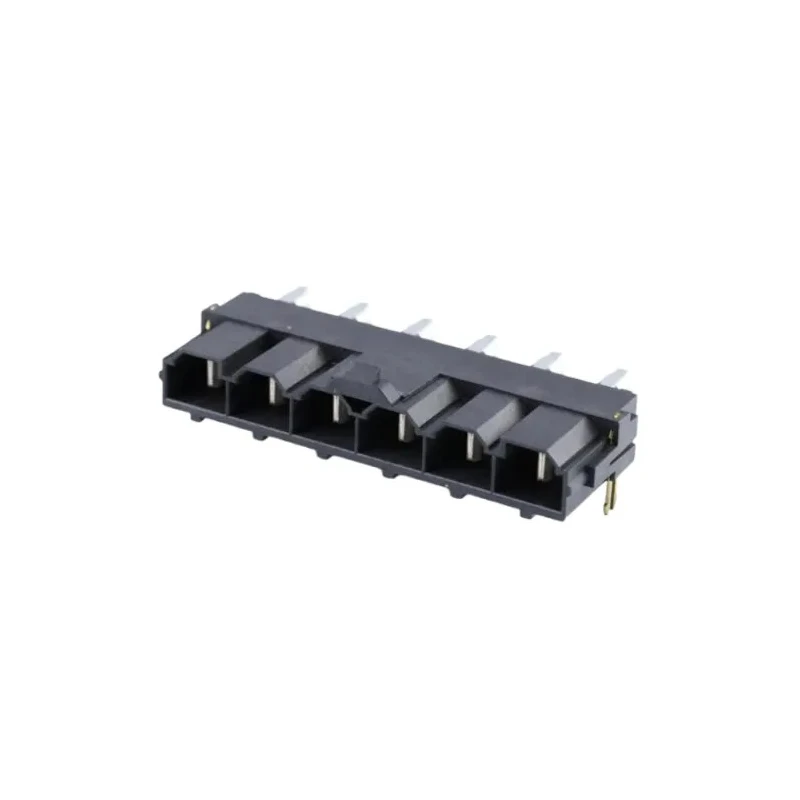

Molex 42820-6213 is a right angle through hole PCB header featuring 6 contacts arranged in a single row with a 10 mm pitch. Its shrouded housing provides additional protection against accidental disconnections, making it ideal for demanding power distribution and electronic applications.

This connector uses brass contacts plated with gold to ensure optimal conductivity, supporting currents up to 50A with a maximum voltage rating of 600V. The right-angle orientation facilitates space-saving designs and effective wire-to-board connections through secure solder termination with a tail pin length of 3.5 mm.

The housing is thermoplastic, offering electrical insulation and mechanical strength. The header operates within an extended temperature range of -40°C to 105°C, suitable for varied environmental conditions.

Common use cases include industrial automation systems, electrical and mechanical assemblies requiring reliable high-current connections, and electronic devices demanding robust interfacing. The shrouded design minimizes mating errors and protects connection integrity during assembly.

Brass contacts with gold plating enhance electrical performance. Rated for high current of 50A for power-critical applications. Right-angle, 1 row, 6 contact configuration supports efficient PCB layout. Through-hole mounting with solder termination secures mechanical and electrical connection.

Wide operating temperature range from -40°C to 105°C ensures environmental adaptability. Shrouded connector design prevents accidental disconnections and misalignment. Compatible with wire-to-board systems operating at up to 600V.

Ideal for power distribution in industrial, manufacturing, and automation equipment, the Molex 42820-6213 PCB header delivers reliable electrical connections in demanding conditions. EnvMart customers can explore similar high-quality power connectors in our extensive electronics and electricals category.
