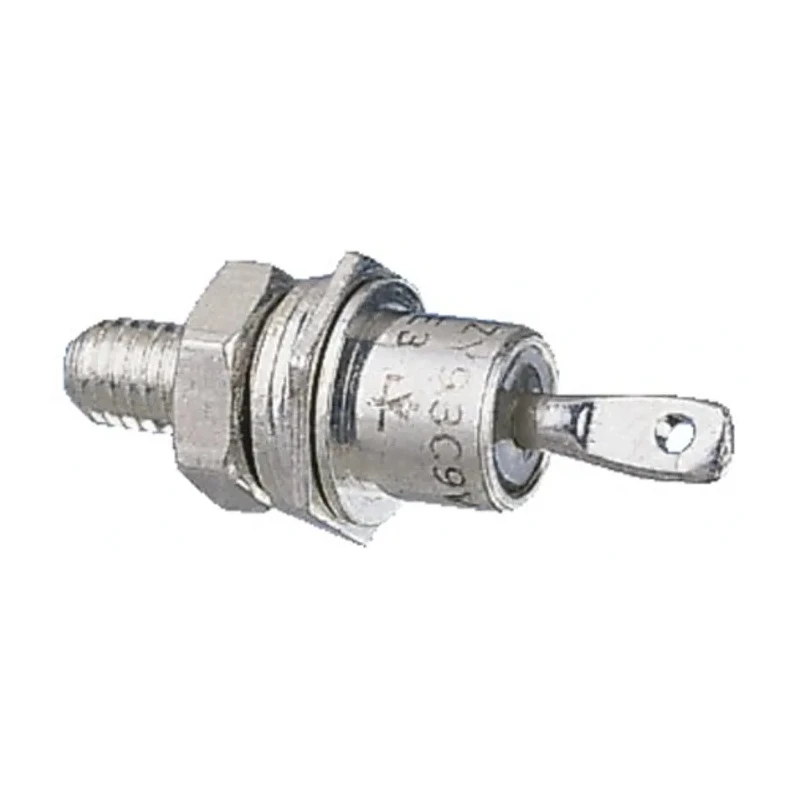

Vishay Fast Recovery Diode 1 kV 40 A 2-Pin DO-203AB VS-40HFLR100S05

Vishay VS-40HFLR100S05 is a fast recovery diode engineered for power electronics applications requiring high current and voltage handling capabilities. This device features a continuous forward current rating of 40 amperes and a peak repetitive reverse voltage of 1 kilovolt. Its fast recovery time of 500 nanoseconds supports efficient switching performance, reducing power losses and heat generation during operation.

The diode is housed in a robust 2-pin DO-203AB stud anode package, measuring 36.5 mm in length and 17.4 mm in diameter, suitable for screw mounting. Operating reliably in temperature extremes from -40°C up to 125°C, this component is designed for demanding industrial and commercial environments.

This high-efficiency rectifier diode supports peak non-repetitive forward surge currents of up to 500 amperes, making it ideal for transient power conditions without damage. Its maximum forward voltage of 1.95 volts aids in minimizing conduction losses, further enhancing circuit efficiency.

The low peak reverse current leakage of 10 mA and the rugged construction ensure stability and durability in power rectification, motor drives, power supplies, and inverter applications. The diode meets no specific industry standards or automotive approvals but offers reliable performance for a wide range of electronic and electrical applications.

Manufactured in India, the VS-40HFLR100S05 fast recovery diode is a dependable choice for engineers requiring high current rectifiers with fast switching and robust package design. Suitable for industrial, laboratory, manufacturing, and commercial electronics applications.

Capable of continuous forward current of 40 A for robust performance. Peak reverse repetitive voltage rated at 1 kV ensuring high voltage blocking. Fast recovery time of 500 ns minimizing switching losses. Operates reliably between -40°C and 125°C for broad temperature range applications.

Compact DO-203AB package with dimensions 36.5 mm length and 17.4 mm diameter. Study anode diode configuration suited for power rectification tasks. Low peak reverse current of 10 mA reducing leakage in circuits. Maximum forward voltage drop of 1.95 V enhancing efficiency.

Peak non-repetitive forward surge current up to 500 A for transient robustness. Manufactured in India ensuring local origin quality standards. Explore more Vishay semiconductor Diodes and rectifiers at EnvMart for industrial and electronic component applications.
