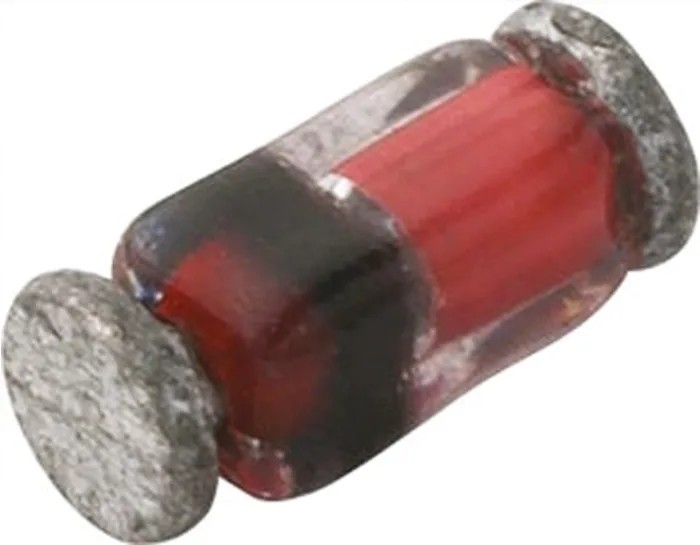

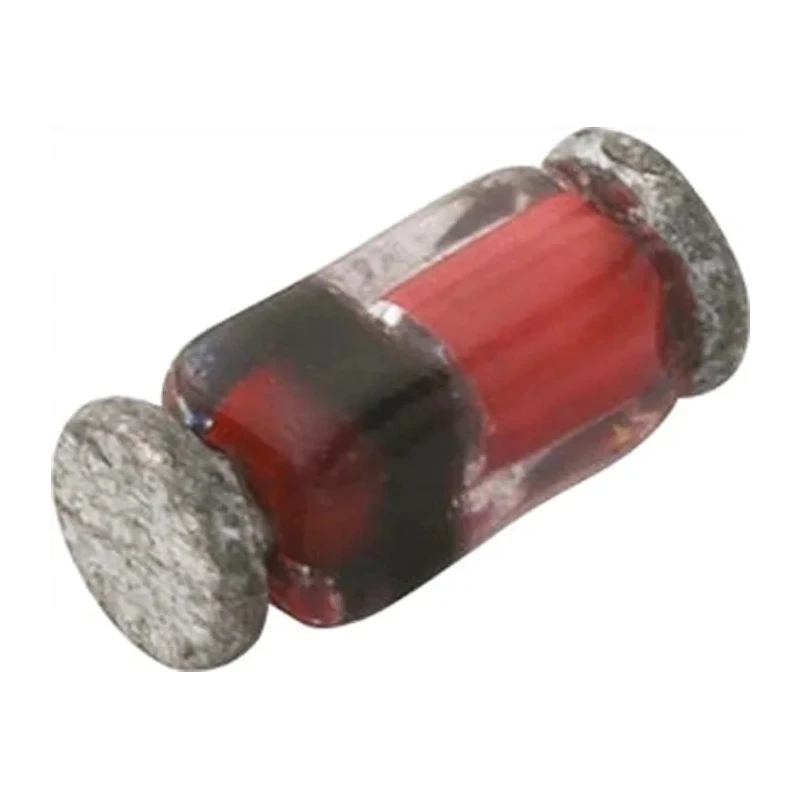

Vishay Schottky Diode BAS286-GS08 50 V 200 mA Single Rectifier Surface Mount SOD-80

Vishay BAS286-GS08 is a high-performance Schottky diode designed for fast switching and low power loss applications. The diode is packaged in a compact 2-pin SOD-80 surface mount case, offering low forward voltage drop and very fast reverse recovery times. Its continuous forward current rating of 200 mA and peak surge current capability of 5 A make it suitable for a wide range of industrial, electronics manufacturing, and automotive applications.

The diode's peak repetitive reverse voltage is rated at 50 V, providing robust blocking capability in power supply and protection circuits. With a maximum forward voltage of 900 mV, it reduces energy losses and improves overall efficiency in switching power devices and rectifiers. The device is qualified according to the automotive standard AEC-Q101, ensuring reliability in automotive and harsh environment uses.

Physically, the diode measures 3.7 mm in length, 1.6 mm in width and height, and 2.5 mm in diameter, making it ideal for dense PCB layouts where space conservation is critical. It operates in a wide temperature range from -65°C to 125°C, suitable for demanding industrial and automotive conditions.

Vishay’s Schottky barrier diodes are known for their low forward voltage and rapid switching characteristics, used extensively in power rectification, voltage clamping, and RF applications. This model’s low leakage current of 5 µA further optimizes power efficiency.

Typical applications include power supplies, voltage clamping circuits, high efficiency rectifiers, and fast switching in industrial and consumer electronics. Features a low forward voltage drop of 900 mV maximum for efficient conduction.

Supports maximum continuous forward current of 200 mA and peak surge current of up to 5 A. Peak reverse repetitive voltage rating is 50 V ensuring reliable blocking capability. Package dimensions are compact with length of 3.7 mm, width and height of 1.6 mm.

Operates safely over a temperature range of -65°C to 125°C. Designed to meet automotive standard AEC-Q101 and RoHS compliance. Single diode configuration with 2 pins, suitable for fast switching applications. Extremely low reverse leakage current of 5 µA enhances efficiency.

Available from EnvMart for industrial applications demanding reliable semiconductor diode components. Browse our selection of electronic components and semiconductor devices for related items.
