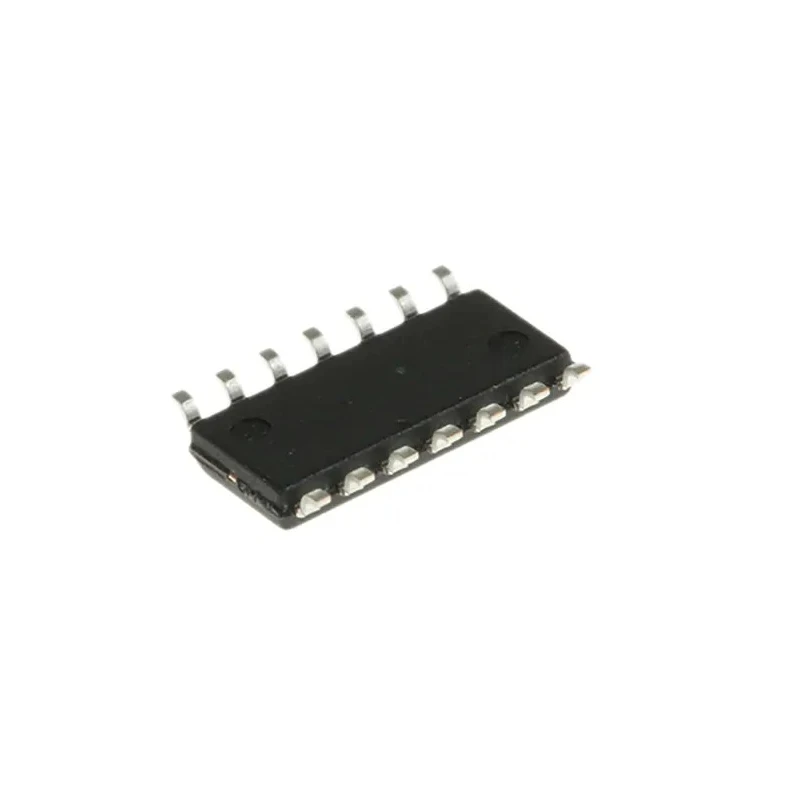

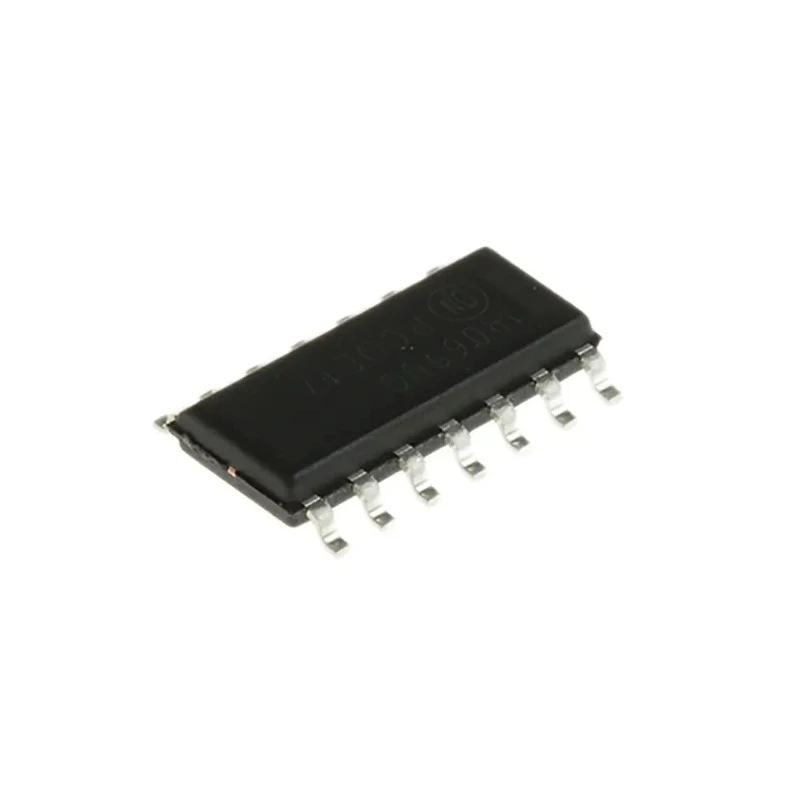

onsemi CMOS Inverter 6 Elements Push Pull Output 14-Pin SOIC 3-18V MC14069UBDR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi CMOS Inverter 6 Elements Push Pull Output 14-Pin SOIC 3-18V MC14069UBDR2G

Name: onsemi CMOS Inverter 6 Elements Push Pull Output 14-Pin SOIC 3-18V MC14069UBDR2G
Brand: onsemi
SKU: 374379
Price: 0.34 USD
Availability: InStock



Category Inverters ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.5mm
Length	8.75mm
Model	MC14069UBDR2G
Width	4mm
Mount Type	Surface
Output type	Push Pull
Series	MC14069UB
Input Type	CMOS
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Pin Count	14
Number of Elements per Chip	6
Automotive Standard	AEC-Q100
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	Inverter
Minimum Supply Voltage	3V
Maximum High Level Output Current	-0.36mA
Maximum Propagation Delay Time @ CL	125ns
Maximum Low Level Output Current	2.4mA
Wide operating voltage range	3 to 18V

Key Features

Operates over a wide supply voltage range of 3 to 18 volts.
Includes 6 inverter elements per chip with push-pull output configuration.
Maximum propagation delay time of 125 nanoseconds at capacitive load.
Operating temperature range from -55 to 125 degrees Celsius suitable for industrial use.
Package type is 14-pin SOIC with dimensions of 8.75 mm length, 4 mm width, and 1.5 mm height.
Compatible with CMOS input type and logic family 4000 series.
Automotive grade compliant with AEC-Q100 standard.
Schmitt trigger input functionality is not included.

Product Description

onsemi MC14069UBDR2G is a CMOS inverter integrated circuit containing six inverter logic elements packaged in a 14-pin Small Outline Integrated Circuit (SOIC) form factor. It supports a wide operating voltage range from 3 volts to 18 volts and a wide temperature range of -55°C to 125°C, making it suitable for various industrial and automotive electronics applications.

The device features a push-pull output type for efficient switching and low power consumption with CMOS input logic compatible to the 4000 series family. It does not include Schmitt trigger inputs. The package dimensions are compact with a length of 8.75 mm, width of 4 mm, and height of 1.5 mm, designed for surface mount technology.

This inverter IC provides a maximum propagation delay time of 125 nanoseconds at capacitive load conditions, ensuring reliable timing performance in digital logic circuits. Maximum output current ratings are -0.36 mA for high level and 2.4 mA for low level, aligning with typical CMOS characteristics.

The MC14069UBDR2G complies with the automotive AEC-Q100 standard, assuring quality and robustness required in automotive electronic systems. It is commonly used in signal inversion, buffering, and logic gate applications within industrial, automotive, manufacturing, and electronic control systems.

Operates over a wide supply voltage range of 3 to 18 volts. Six inverter elements per integrated circuit with push-pull output. Complies with automotive standard AEC-Q100 for reliability. Wide operating temperature range suitable for harsh conditions.

Surface mount package allows compact PCB designs. Maximum propagation delay of 125 ns for fast switching. No Schmitt trigger input functionality included. Logic family compatibility with 4000 series CMOS devices.

This onsemi CMOS inverter IC is ideal for industrial, automotive, laboratory, and electronics manufacturing environments requiring reliable logic inversion functionalities. Browse more Inverters ICs and semiconductor components on EnvMart for comprehensive electronic assembly solutions.
